| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | XY-2005 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $2442 ~ $3809/pc |
| Packaging Details: | Water Pressure Balance Load Cell Test Equipment Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Oxygen Argon Gas Pressure Reducer Calibrator | Application: | Pressure Regulator Calibrator |
|---|---|---|---|
| Measuring Range: | 0 ~ 40MPa | Medium: | Gas |
| Accuracy: | 0.05 | Process Connector: | M12*1.5(Customerized) |
| Type: | Penumatic | Weight: | 10KG |
| Dimension: | 450*300*150mm | Warranty: | 1 Year |
Description
The oxygen argon gas air co2 pressure reducer cng pressure reducing regulator calibrator is mainly used for the measurement of oxygen, nitrogen, argon, helium, hydrogen, carbon dioxide, acetylene gas, propane gas and other gas pressure reducer pressure gauges, as well as the detection of safety parameters such as gas pressure reducer leakage. The traditional calibrator can only verify two pressure gauges, and can not judge whether the performance indicators of the gas pressure reducer are qualified, and the verification efficiency is low. Our SLK-2005 pressure reducer calibrator adopts the latest design scheme, and the gas pressure reducer and pressure gauge are used as a whole verification, without disassembly and installation, avoiding various problems caused by the traditional verification method.
Features
Both the gauge medium and calibrator medium are gas.The tested gauge would be protected from polluted and corrosive.
There is no need for tested gauge to be taken apart.This will gurantee the leakproofness and avoid the viewpoint switching of the pressure gauge.
Quick coupling,faster,more efficient,more convenient.
The calibrator will check the pressure gauge when it is working.
The pressure reducing regulator will be verified in quality.
Specification
| Application | Pressure regulator calibrator | Measuring range | 0-40MPa |
| Medium | Gas | Accuracy | 0.05 |
| Process connector | M12*1.5(Customerized) | Type | penumatic |
| Dimension | 450*300*150mm | Weight | 10KG |
Applications
Widely used in petroleum, chemical, natural gas, metallurgy, electric power, railway, military, machinery, hospitals and metrology industries to verify the use of various cylinder pressure reducers.

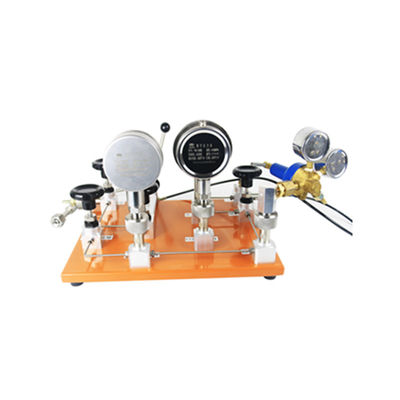

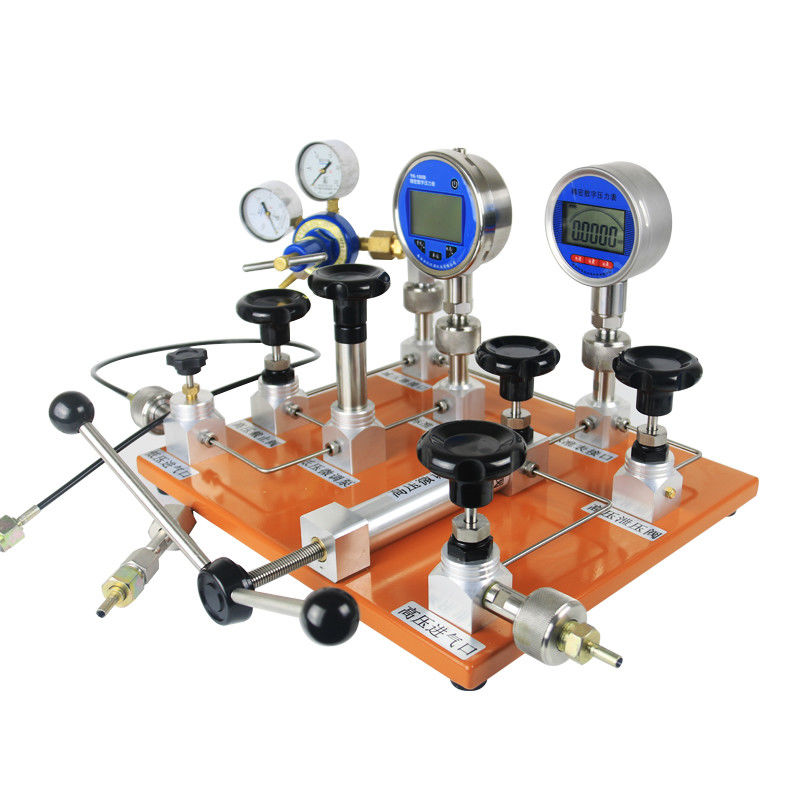

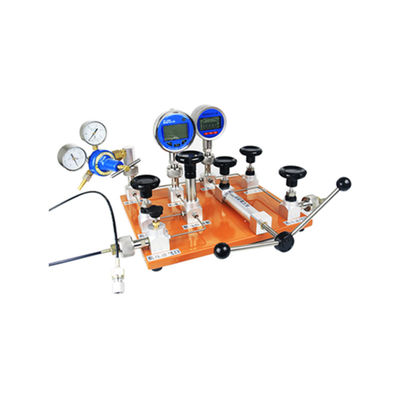

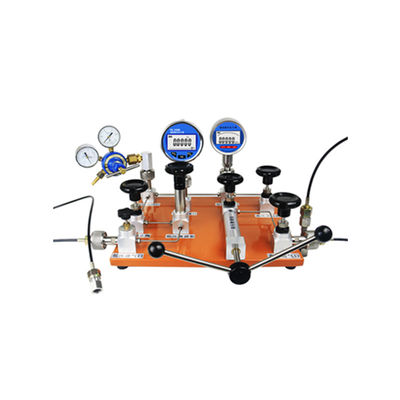

Detailed Images
Related products
Company Information
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Xi'an Shelok Instrument Technology Co.,Ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
