| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | XY-2003 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $850 ~ $1350/pc |
| Packaging Details: | Water Pressure Balance Load Cell Test Equipment Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Item: | SS Oil High Pressure Calibrator | Pressure Range: | (0 ~ 60) Mpa (0 ~ 100) MPa (0 ~ 160) MPa (0 ~ 250) MPa |
|---|---|---|---|
| Work Temperature: | -20 To 50℃ | Diemnsion: | 270 Mm * 150 Mm * 150 Mm |
| Fine Adjustment: | 10kPa | Application: | Produce Pressure |
| Medium: | Oil | Thread: | 1/4NPT, 1/2NPT, M20*1.5 |
| Warranty: | 12 Months | OEM: | Yes |

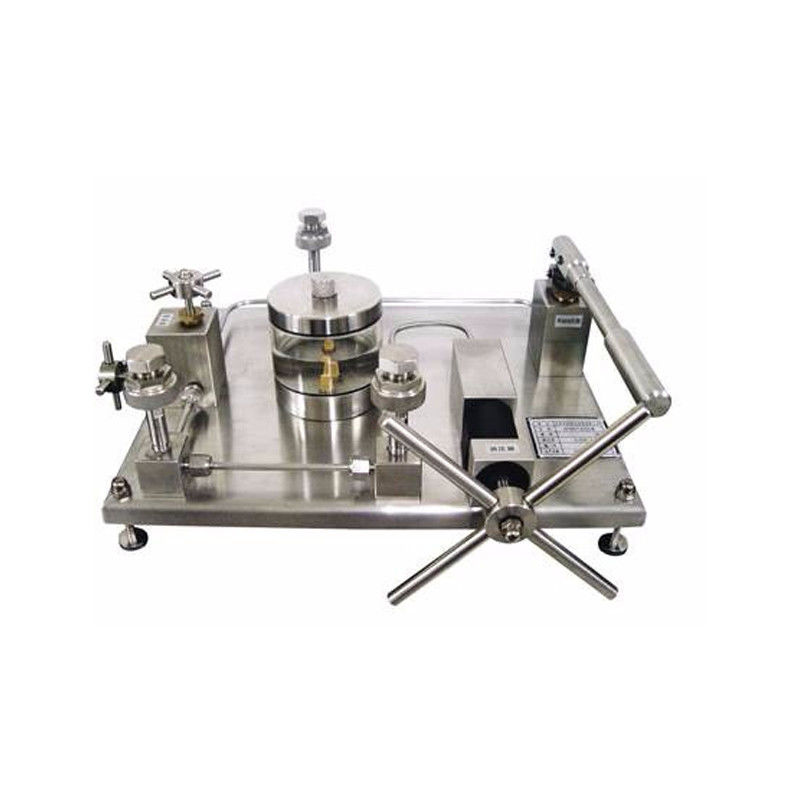

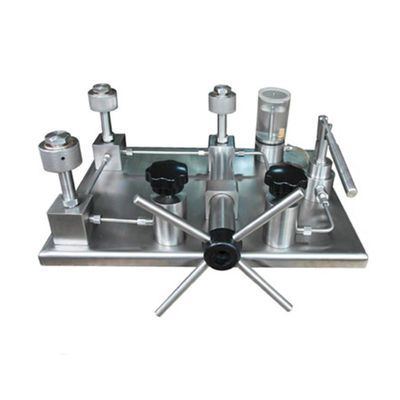

XY-2003 pressure calibrator is our newly developed products. This product is made of high quality imported stainless steel, advanced sealing technology, special processing technology, and ultrasonic professional cleaning completely eliminate the oil, the industry is working to ban oil metering Meter Verification maintenance of the necessary equipment.
Mainly used in aviation, aerospace, food, health, military, metallurgy and other departments calibration measurement instrumentation ban oil use..
1.Pressure range: (0 ~ 60) Mpa (0 ~ 100) MPa (0 ~ 160) MPa (0 ~ 250) MPa
2. Minimum controllable adjustment degree: 10kPa
3. Size: 460 × 320 × 160 (mm)
4. Weight: 28kg
5. Model:XY-2003
6.Connector:3 pieces M20*1.5
⑴The Pressure Gauge Connection Port 1 ⑵The
Pressure Gauge Connection Port2 ⑶Pressure relief valve
⑷Pressurization Screw ⑸Shut-off valve
⑹Preloading Handle ⑺ Preloading Seat ⑻ Filter
⑼Oil Cup ⑽Exhaust Vent ⑾Standard table
interface ⑿Pressurized cylinder
Y039: 0~1.6MPa
Stability :0.05%
Type :Pneumatic pressure
Y060: 0~25MPa
Stability :0.05%
Type :Hydraulic pressure
Y061: -0.08~0MPa
Stability :0.05%
Type :Pneumatic pressure
YFP-16: -0.088~1.6MPa
Stability :0.05%
Type :Pneumatic pressure
YFP-16: -0.088~2.0MPa
Stability :0.05%
Type :Pneumatic pressure
YFP-16: -0.088~2.5MPa
Stability :0.05%
Type :Pneumatic pressure
Range: (-0.1~060)MPa
Type :Hydraulic pressure
Range: 0-6/0-60MPa
Type :Hydraulic pressure
Range: 0-160MPa
Type :Hydraulic pressure
