| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | HMF2000 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $815.00~$1035.00 |
| Packaging Details: | RS485 Output Mass Digital Air, Gas Flow Sensor Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Mass Flow Meters Products HMF2000 Series Handheld Gas Flow Meters | Mass Flow Rate: | 0 ~ 1000 Sccm |
|---|---|---|---|
| Accuracy: | ±(2+0.5FS)% | Response Time: | 8 Msec |
| Turn-down Ration: | >100:1 | Power Supply: | 6F22 Battery Of External 6 ~ 12V DC |
| User Interface: | Front Keyboard | Operational Temperature: | 0~50℃ |
| Storage Temperature: | -10~80℃ | Max. Working Pressure: | 0.4MPa |
RS485 Output Mass Digital Air, Gas Flow Sensor
Description
The HMF2000 Series Handheld Mass Flow Meters are designed and manufacturered for onsite measurement for gas flowrate with multiple gas options and large dynamic range using the proprietary SHELOK mass flow sensing technology, The product is particularly suitable for applications in instrumentation and inline gas monitor where the multiple gas measurements specially the low flowrate measurement is required. For further customization or other product related questions, please contact US.

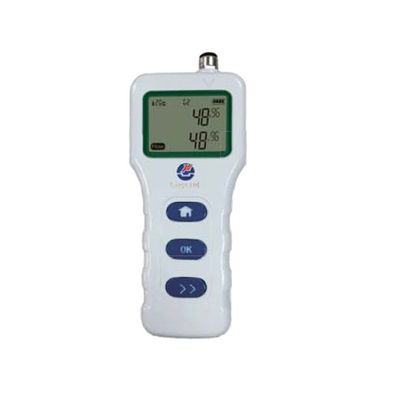

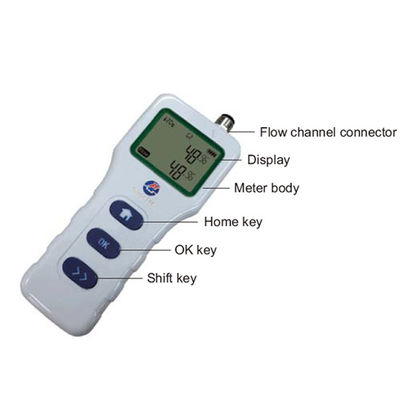

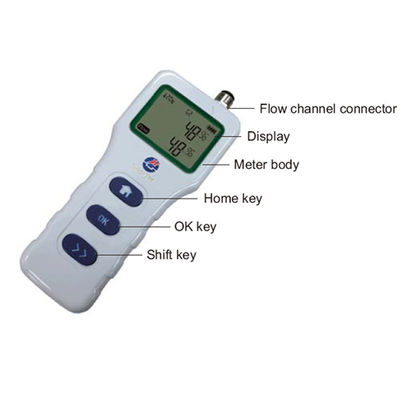

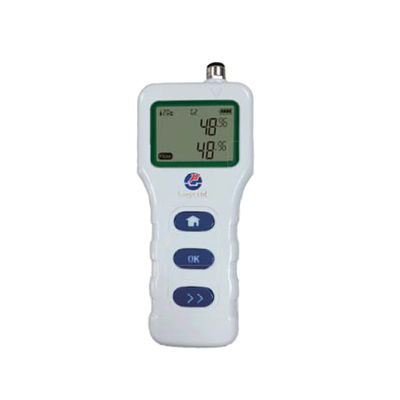

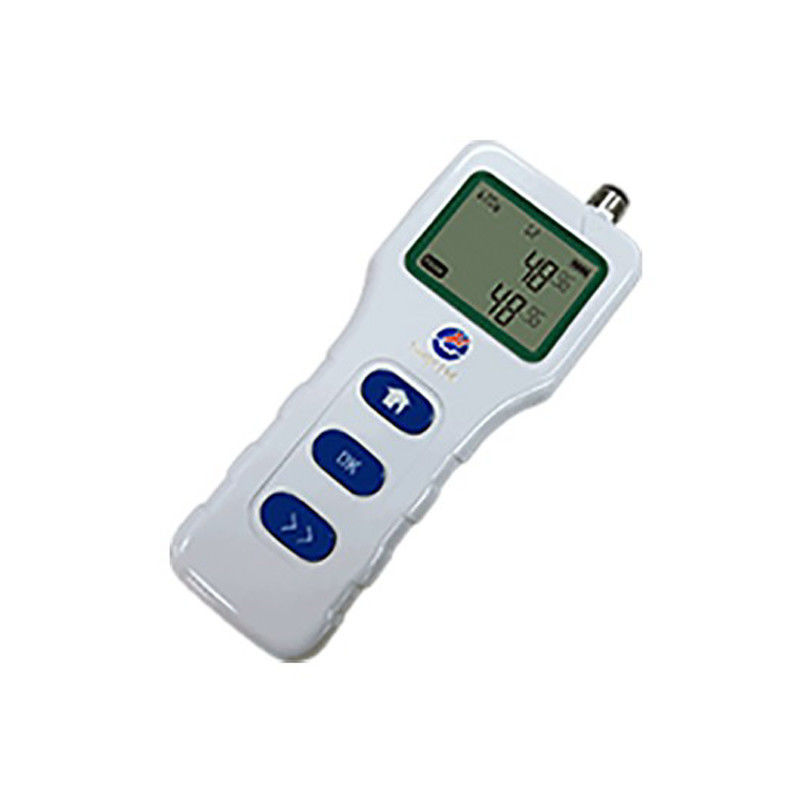

Detailed Images
Specification
| MF4001 RS485 Output Mass Digital Air, Gas Flow Sensor | ||
| Parameter | HMF2000 | Unit |
| Mass Flow Rate | 0 ~ 1000 | sccm |
| Accuracy | ±(2+0.5FS) | % |
| Response time | 8 | msec |
| Turn-down ration | >100:1 | |
| Power Supply | 6F22 battery of External 6 ~ 12V DC | |
| User Interface | Front Keyboard | |
| Operational Temperature | 0 ~50 | ℃ |
| Storage Temperature | -10 ~ 80 | ℃ |
| Max. Working Pressure | 0.4 | MPa |
| Safety Rating | IP40 | |
| Dimension | 160×61×33 | mm3 |
| Weight | 200 | g |
Notes: the above parameters are applicable at 20℃ and 101.325kPa.

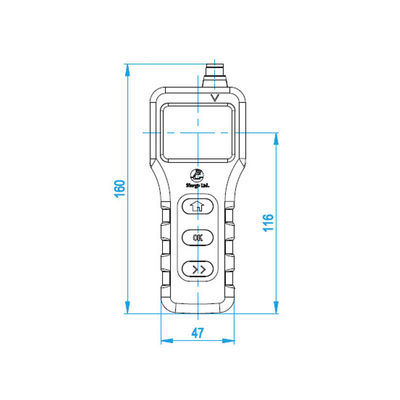

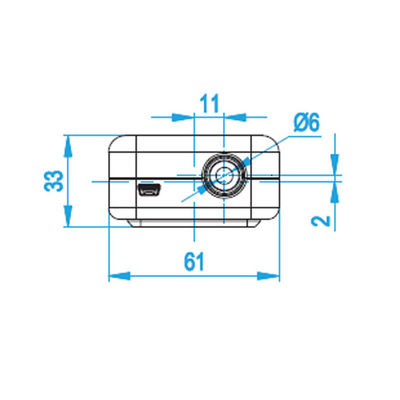

Mechanical Dimensions of the HMF2000
Features
! Multiple gas mass flow measurement a handheld form factor
! Gas selection with front key board for Air, O2 Ar, H2 and He
! Excellent for instrumentation testing and onsite gas flow rate monitor
! MEMS mass flow sensing technology with temperature and pressure compensation
! High sensitivity for low flow measurement, and models cover different flowrate applications
! Instant flowrate, totalizer, and via easily accessible interface
! Split gas ration for gas chromatography mass spectrometers
! Record, data access with front keyboard for data safety
! Portability design with battery operation
