| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | FDM-1 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $1150.00 ~ $2175.00 |
| Packaging Details: | Air Pressure Relief Valve, Back Pressure Regulator, Pressure Reducing Valves Standard export package |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Digital Liquid Densimeter Fork Density Meter Portable Price | Application: | Mud Pulp, Milk, Evaporator, Solvent Separation, Oil Measurement |
|---|---|---|---|
| Length: | Max2m | Explosion Protection: | Exd II CT4 |
| Ambient Vibration Sensitive: | No |

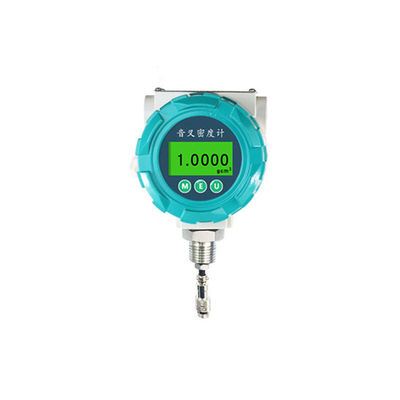

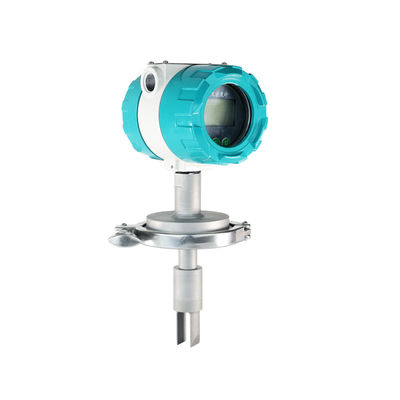

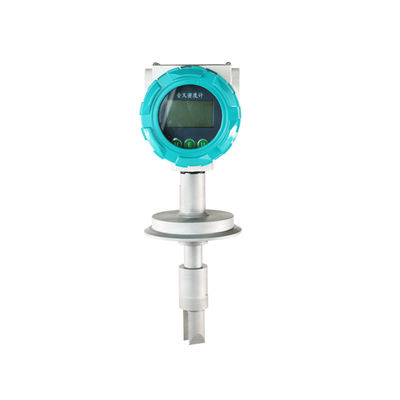

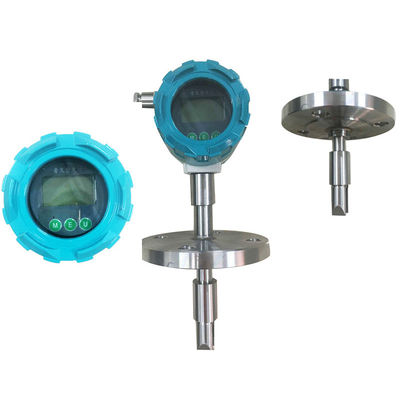

Description of digital liquid densimeter fork density meter portable price

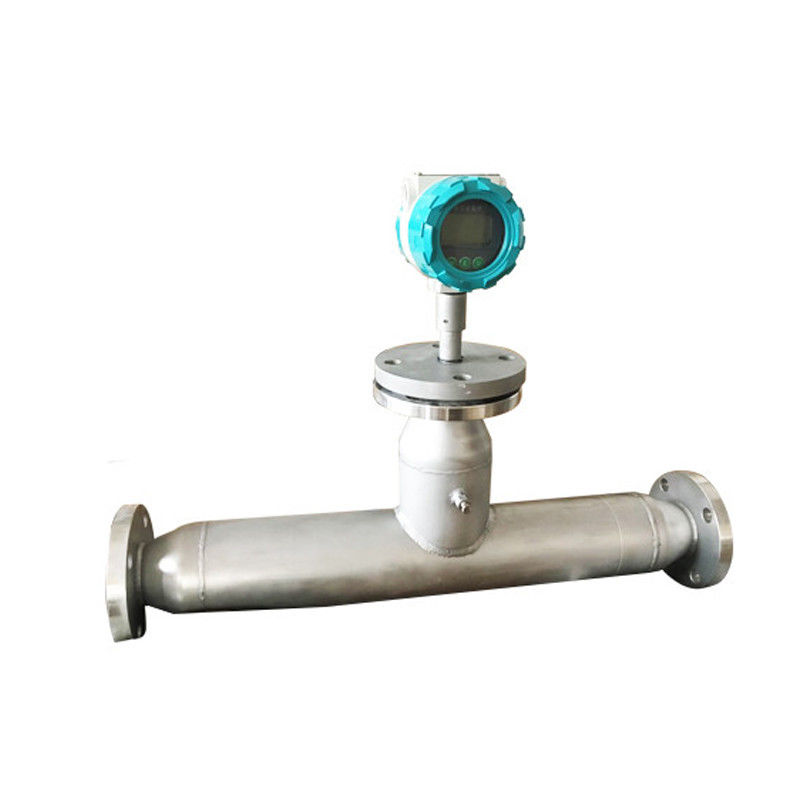

XY-886 tuning fork-type density meter is my company to introduce the United States advanced production technology based on the principle of vibration of the development of new products. The product is designed for plug-in installation and is widely used for medium density testing in piping, open tank containers and enclosed tank containers. The product is available in mud, pulp, evaporator, solvent separation, oil measurement and other fields. Extensive application.
The fluid density depends directly on the frequency of vibration received in the sensor insertion medium. The sensor built-in temperature sensor provides temperature compensation for it.
1. The fire treatment of the tuning fork body improves the hardness and wear resistance of the tuning fork, and effectively improves the service life of the tuning fork when measuring particles with media (such as limestone slurry) (much better than Emerson 7826).
2. The frequency tracking circuit adopts the Japanese core module and high-precision tuning fork to improve the frequency ratio of the tuning fork density meter, from 400:1 to 1000:1, which effectively improves the accuracy of the tuning fork density meter. (Other domestic companies are basically 400:1, The frequency ratio determines the accuracy, and the accuracy of 400:1 is up to 0.25%).
3. On-site one-key linear correction function and human nature menu design can reduce the difficulty of on-site maintenance.
Years of installation and field experience, providing a full range of technical services for pre-sales and after-sales
Parameter digital liquid densimeter fork density meter portable price
| Item | |
|
measurement range
|
0-3g/cm3(0-3000kg/m3) |
|
measurement accuracy
|
±0.001g/cc (±1kg/m3) |
|
Operating Temperature
|
-50℃~+200℃ |
| Max working pressure | 20MPa |
| Fluid viscosity range | 0~20000cp |
| Temperature coefficient | 0.1kg/m3/℃(after calibration) |
| pressure effect | negligible |
| Built-in temperature sensor | PT100 |
| Wetted material | Stainless steel, HHS alloy C22, mn alloy 400, titanium alloy, etc |
| fork body coating | Standard type, PTFE or electrolytic polishing |
| Power supply | 20~28DVC, 35~45mA |
| Analog signal output | 4-20mA, Isolation type, non-self-powered type |
| Output accuracy(20℃) | ±0.1%, ±0.05% FS |
| Output repeatability(-40~+85℃) | ±0.05% FS |
| The process is continuous |
1.5’’ NPT DIN 50 PN40 & PN100 |
| Degree of protection | IP65 |
|
|
Adopt the gold-plated transducer imported from Germany RH company, which has good stability, long life and low temperature drift, which can ensure the good linearity and stability of the tuning fork density meter. | |
The ceramic cross-gold base plate is used to ensure good contact of transducer, and the frequency is increased by 1000HZ, thereby improving the accuracy . |
|
The unique vibration isolation ring design rejects all the influence of mechanical vibration on the tuning fork, making the tuning fork more suitable for vibration occasions. | |
The circuit board adopts a fully resin sealed structure, which is moisture-proof and anti-corrosion, and protects the circuit board for long-term use in harsh environments |
|

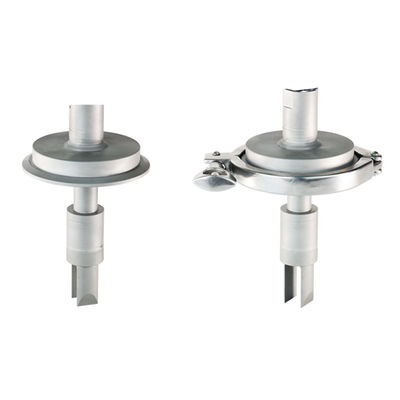

The core insert fork formed by a machine , which ensures the uniformity of accuracy, improves the repeatability of the tuning fork density meter, and ensures the quality control of mass production. The exterior is sandblasted to ensure the mechanical strength of the tuning fork. | |
Using a full set of Japanese core modules, it surpasses Emerson's same products in terms of accuracy and stability, which not only guarantees quality, but also has a high cost performance. |
|
The built-in high-precision temperature sensor can display the temperature and serve as the basis for high-precision temperature compensation. The compensation range of conventional products is from 0-80 degrees, which basically covers customer needs. | |
The peripheral circuit adopts photoelectric isolation technology to effectively resist interference signals and ensure stable operation of the field density meter |
Application details:
