| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | FS6122 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $78.00~$89.00 |
| Packaging Details: | RS485 Output Mass Digital Air, Gas Flow Sensor Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Model: | FS6122 | Flow Range: | - 250 ~ +250SLPM |
|---|---|---|---|
| Accuracy(Total Error Band): | ±(2.5+0.5FS) % | Output: | Linear, Analog/I2C (14 Bit) |
| Analog Output Range: | 0.5 ~ 4.5 Vdc | Warranty: | 1 Year |
| Product Name: | Oxygen Flow Sensor Gas Flow Sensors, Mass Air Flow Meter |
Medical CPAP Sensor Fusion, oxygen Flow Sensor, Gas Flow Sensors, Mass Air Flow Meter
Description
FS6122 series mass flow sensors are specially designed for personal ventilators for CPAP (continuous positive airway pressure). The sensor integrates MEMS mass flow sensor with a MEMS pressure sensor that provides the necessary information for the proper performance of the state-of-the-art CPAP ventilators. The miniature package not only provide space saving for the ventilator but also provides high accuracy and fast response for both mass flowrate measurement and gauge pressure data while with a very low pressure drop and small dead space.

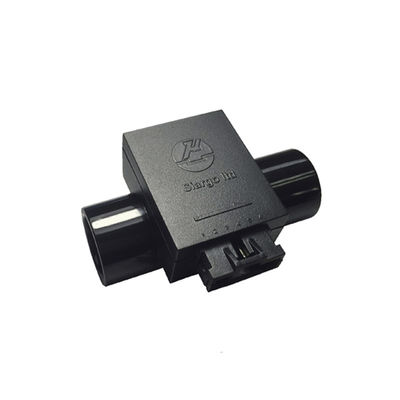

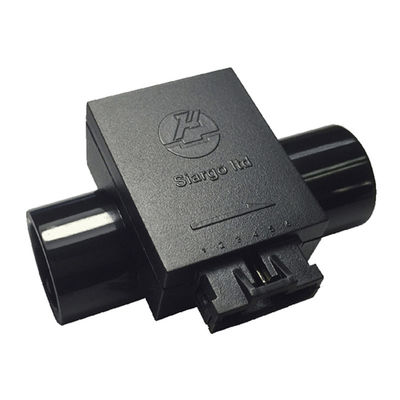

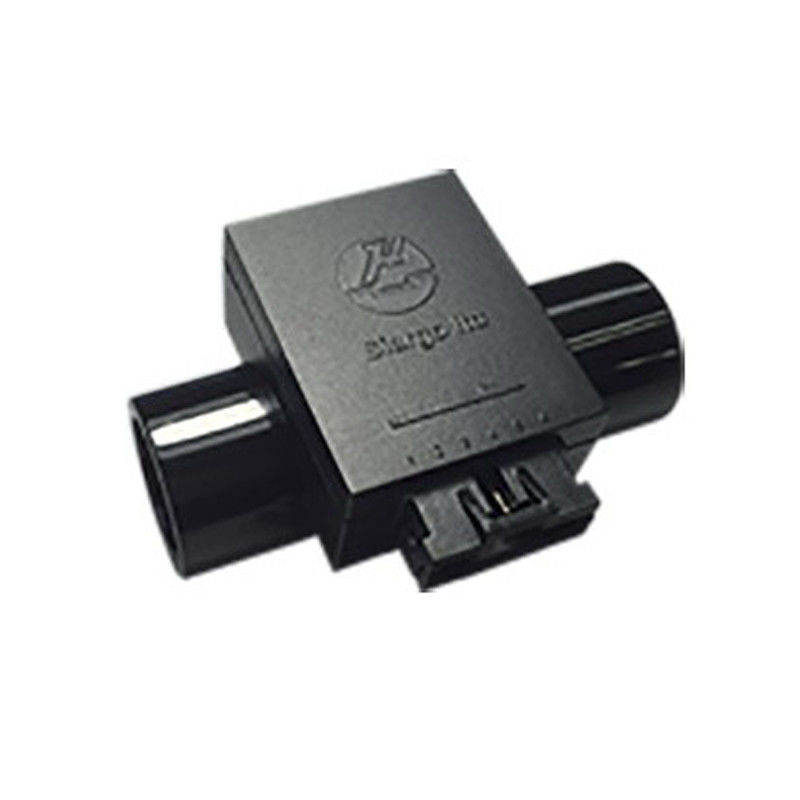

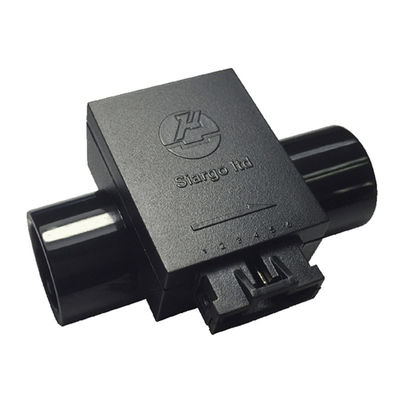

Detailed Images
Specification
| Medical CPAP Sensor Fusion, oxygen Flow Sensor, Mass Air Flow Meter | ||
| Parameter | FS6122 | Unit |
| Flow Range | - 250 ~ +250 | SLPM |
| Accuracy(Total Error Band) | ±(2.5+0.5FS) | % |
| Output** | Linear, Analog/I2C (14 bit) | |
| Analog Output Range | 0.5 ~ 4.5 | Vdc |
| Response Time | 2 | ms |
| Pressure Sensor | ||
| Pressure Type | Gauge | |
| Pressure Range | -5 ~ +40 / -5 ~ +100 | cmH2O |
| Accuracy | ±1.0 | %FS |
| Output** | Linear, Analog/I2C (14 bit) | |
| Analog Output Range | 0.5 ~ 4.5 | vDC |
| Update Time | <1 | ms |
| Temperature and Humidity Sensors | ||
| Temperature Range | -10 ~ +60 | ℃ |
| Temperature Accuracy | ±0.5 | ℃ |
| Humidity Range | 0 ~ 100 (No Icing or condersation | %RH |
| Humidity Accuracy | ±2.0 (20 ~ 80%RH; ±5.0 max (other ranges) | %RH |
| Humidity Resolution | 0.7 | %RH |
| Humidity Response time (63%) | 5.0 (25 ~ 75%RH) | sec |
| Humidity Stability | 0.5 | %RH/year |
| Other Specifications | ||
| Gas Type | Air | |
| Supply Voltage | 5.0 ± 5% | Vdc |
| Output Pin Shape | 6 Pins, NS-TECH CD R-6 | |
| Accuracy Compensated Temperature | -5 ~ +65 | ℃ |
| Storage Temperature | -5 ~ +85 | ℃ |
| Maximum Pressure*** | ±30 / ±80 | kPa |
| Warming Up Time | <50 | ms |
Note: * The above parameters are applicable at 20℃ and 101.325kPa;
** 14 bit for I2C.
*** Base on the working pressure of the pressure sensor.
Features
! Measures mass flow rate and gauge pressure
! Fast response time
! Highly sensitive in small flow rate
! Low power consumption
! Specially designed for medical equipment
Mechanical Dimensions
