| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | MF5806 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $65.00 ~ $85.00 |
| Packaging Details: | RS485 Output Mass Digital Air, Gas Flow Sensor Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Hospital Series Medical Oxygen Mass Air Flow Meter | Accuracy: | 1.5% |
|---|---|---|---|
| Range: | 0-10, 0-25L/Min, 0-200L/min | Repeatability: | ±0.075% |
| Display: | LCD | Power Supply: | Battery Or 5-12VDC Adapter |
| Screw Thread: | R1/4,BSPT1/4, 4mm,6mm,8mm,12mmquick Coupling | Warranty: | 12 Months |
| Keyboard: | 3 Keys | Output: | RS 485 Or Optional |
Description
MF5806 series oxygen flow meters are specially designed for hospital individual oxygen therapy applications. it provides precise measurement of instant oxygen intake rate and accumulated oxygen dosage for the individual oxygen delivery system. the design provides low power consumption that make it possible for operation on battery when power is an concerm. the meter can be directly connected to the central station via RS 485 that can provide remote monitoring and control which will reduce the risk of oxygen over dosing.

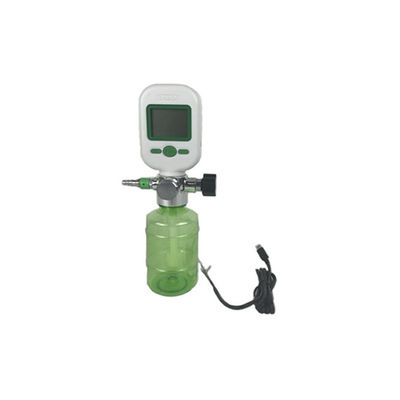

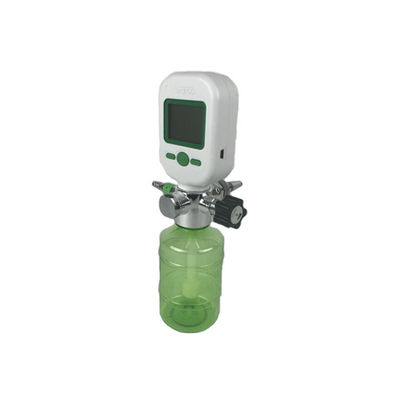

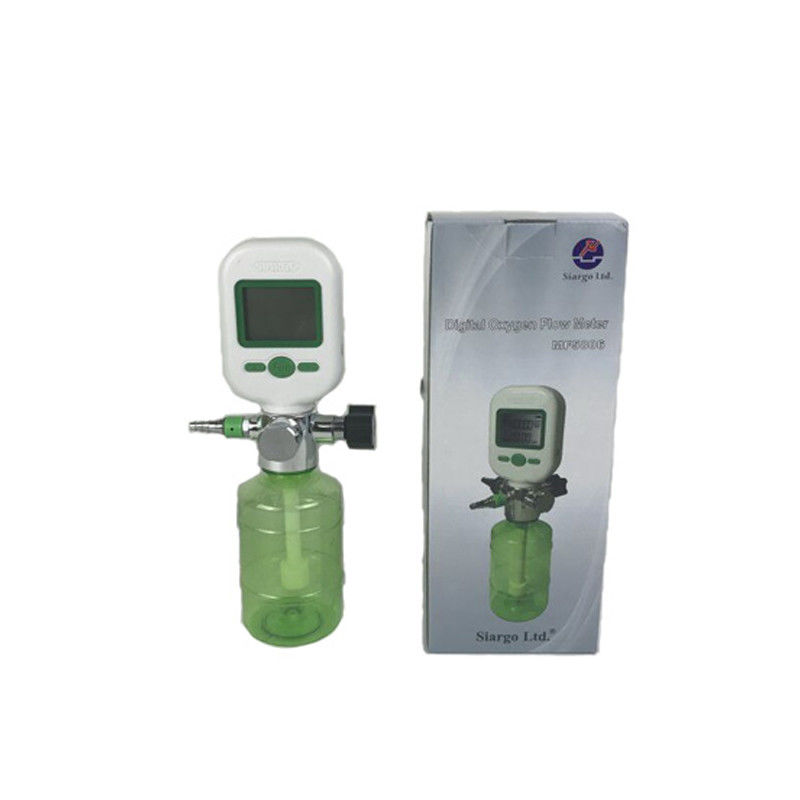

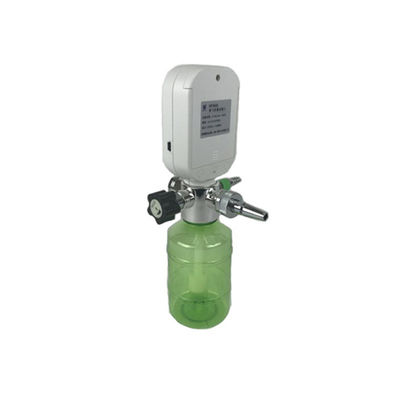

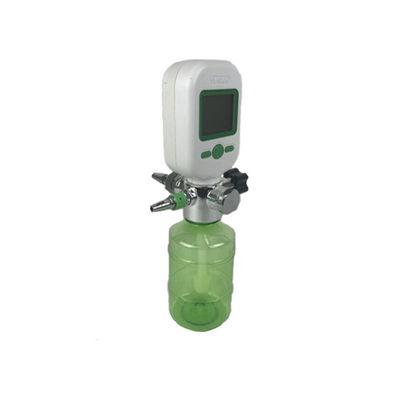

Detailed Images
Specification Hospital series Medical Oxygen mass Air Flow Meter
| Hospital series Medical Oxygen Flow Meters, Air Flow Meter | ||
| Parameter | MF5806 | Unit |
| Flow Range | 0 ~ 10 | SLPM |
| Accuracy | ±(1.5+0.5FS) | % |
| Repeatability Time | 0.5 | % |
| Power Supply | 4 AA batteries(LR6) or AC adapter (6 ~ 15V DC) | |
| Power Consumption | ≤10 | mW |
| Digital Output | RS485(Modbus) | |
| Display | LCD | |
| Display Information | Instant flow: SLPM; Accumulated flow: M3; Temperature: ℃; Battery status | |
| Flow Resolution | 0.01 | SLPM |
| User Function | Password; alarm limit; accumulated flow; zero reset | |
| Max. Pressure | 0.6 | Mpa |
| Working Temperature | -10 ~ +55 | ℃ |
| Pressure Loss | ≤500 | Pa |
| Battery Life | >60 | Day |
| Calibration | Air @ 20℃, 101.325 kPa | |
| Pin Out | mini USB(optional) | |
| DN | 6.0 | mm |
| Mech. Connection | Medical Oxygen Nozzle (customizable) | |
| Weight | 350 | g |
Note: * The above parameters are applicable at 20℃ and 101.325kPa.
** Meter head can be rotated 180 degree for convenience at installation and reading.
Features Hospital series Medical Oxygen mass Air Flow Meter
! Plug-and-paly hospital oxygen deliver design for easy usage
! Mass flow technology provide precise instant rate and accumulated dosage
! Historical data storage and retrieval
! Password protected access
! Instant rate and accumulated dosage alarm
! Excellent repeatability and accuracy
! Low power design with stand-alone operation by battery
Mechanical Dimensions
Applications
Mechanics Food Tobacco Chemistry Beverage Glass Agriculture Research Pharmacetics Instrumentation
