| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | MF4600 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $259.00 ~ $310.00 |
| Packaging Details: | RS485 Output Mass Digital Air, Gas Flow Sensor Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Mass Flow Meter Digital Air Flow Meter Price | Accuracy: | ±2.5+0.5% |
|---|---|---|---|
| Range: | 0-100,200,500sccm;0-1,2,5,10,20,50SLPM | Repeatability: | ±0.8% |
| Display: | LED With 2 Indicators | Power Supply: | 8-24VDC,50mA Max |
| Offsetstability: | 0.1%F.S. | Spanstability: | ±0.12%/℃ |
| Temperature: | -10~55℃ | Pressure Loss: | 100pa |
High Quality Factory price Mass Air and Gas Flow Meter
Description
MF4600 series mass flow meters are made with proprietary MEMS sensing technology. It applies for clean and dry gas metering and control. The meter is designed with the structure of a rotameter but with the full capability of a digital gas mass flow metrology and LED display. Both instant and accumulated flowrate can be read and displayed. The front buttons let user to access and adjust the parameters as well as stored data. The standard RS485 Modbus enables the remote access and integration.

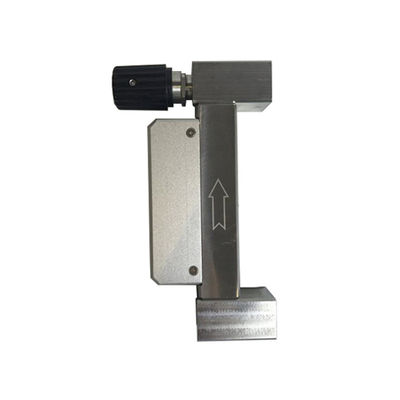

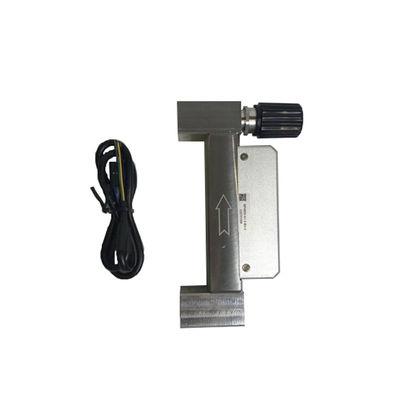

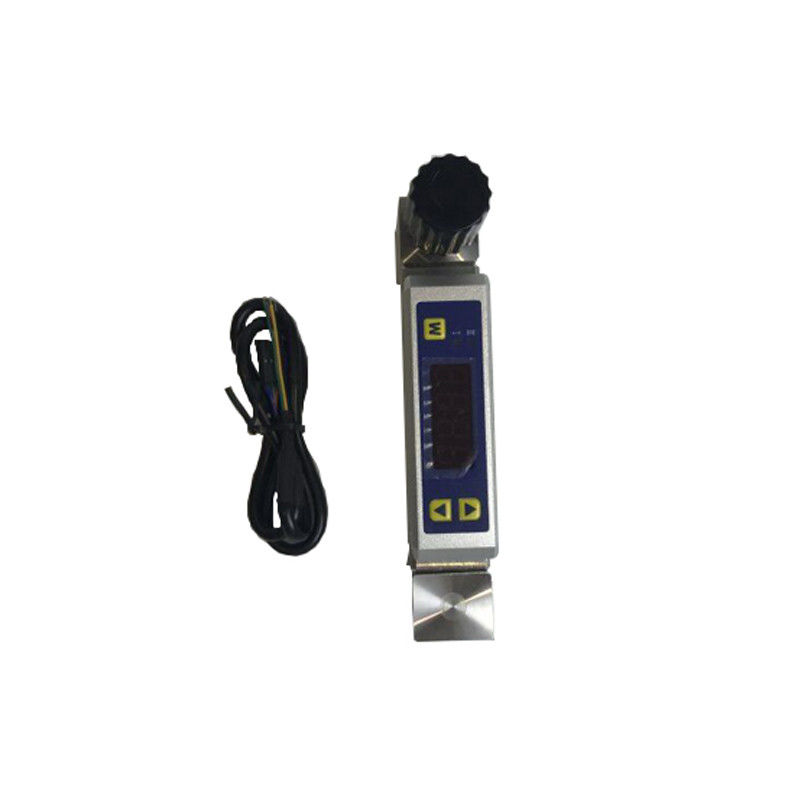

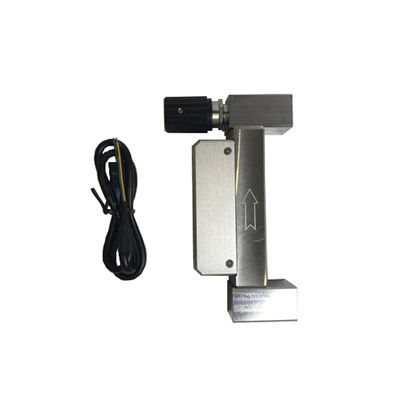

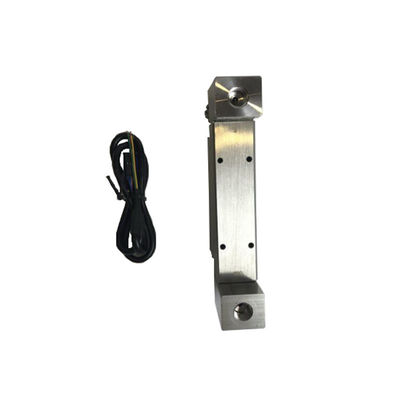

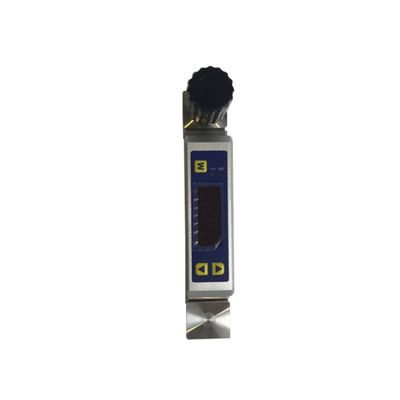

Detailed Images
Specification
| Parameter | MF-4600 | Unit |
| Flowrate Range** | 0 ~ 100, 200, 500 | sccm |
| 0 ~ 1, 2, 5, 10, 20, 50 | SLPM | |
| Turn-down | 50:1 | |
| Accuracy | ±(2.5+0.5FS) | % |
| Repeatability | ±0.8 | % |
| Offset Stability | 0.1 | %FS |
| Span Stability | ±0.12 | % / ℃ |
| Response Time | 10 (default, 10, 20, 50, 200, 500, 1000 selectable | msec |
| Power Supply | 8 ~ 24V DC, 50mA | |
| Output | Linear: Analog 0.5 ~ 4.5V DC; RS485 | |
| Display | 4 - digit, 7 - segment LED; 2 status LED | |
| Units | Instant flowrate: sccm/SLPM; Flow accumulation: SmL/SL | |
| Display Resolution | 0.001, 0.01, 0.1, 1 unit selectable | |
| Pressure Drop | 100 | Pa |
| Max. Pressure | 0.5 | Mpa |
| Working Temperature | -10 ~ +55 | ℃ |
| Storage Temperature | -20 ~ +65 | ℃ |
| Humidity | <95% RH (No icing or condensation | |
| Mechanical Connection | NPT-F 1/8 | |
| Keyboard | 3 Keys | |
| Pins Out | 5 Pins, NS-TECH CD R-5 | |
| Calibration*** | Air @20℃, 101.325 kpa | |
Notes: * The above parameters are applicable at 20℃ and 101.325kPa.
** For other flowrate ranges, please contact us.
*** For other gases calibration, please contact us.
Features
! Designed for low gas flow in fixed channel of 3mm and 8mm, with accumulated flow register
! Direct mass flow measurement with high accuracy
! Multiple sensing elements for extended rangeability over 100:1
! Easy remote accessiable user interface with RS485 Modbus and/or linearized analog data
! Breight LED display for instant and accunulated flowrate with on-site access via front buttons
! Record flowrate patterns with over range indication
! Easy for remote communication and integration
! Compatible with traditional rotameter mechanical connections
! Flow range and mechanical dimensions can be fully customized
Mechanical Dimensions
** For the mechanical dimensions fo other flowrate range, please contact us.
Products Selection
Related products
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
