| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | MF4600 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $165.00 ~ $585.00 |
| Packaging Details: | RS485 Output Mass Digital Air, Gas Flow Sensor Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | MF4600 Okygen 02 Gas Flow Meter With Controller | Application: | Gas |
|---|---|---|---|
| Accuracy: | ±(2.5+0.5FS) | Output Signal: | Linear: Analog 0.5 ~ 4.5V DC; RS485 |
| Power Supply: | 8 ~ 24V DC, 50mA | Working Temperature: | -10 ~ +55 |
| Measuring Range: | 0 ~ 100, 200, 500 |

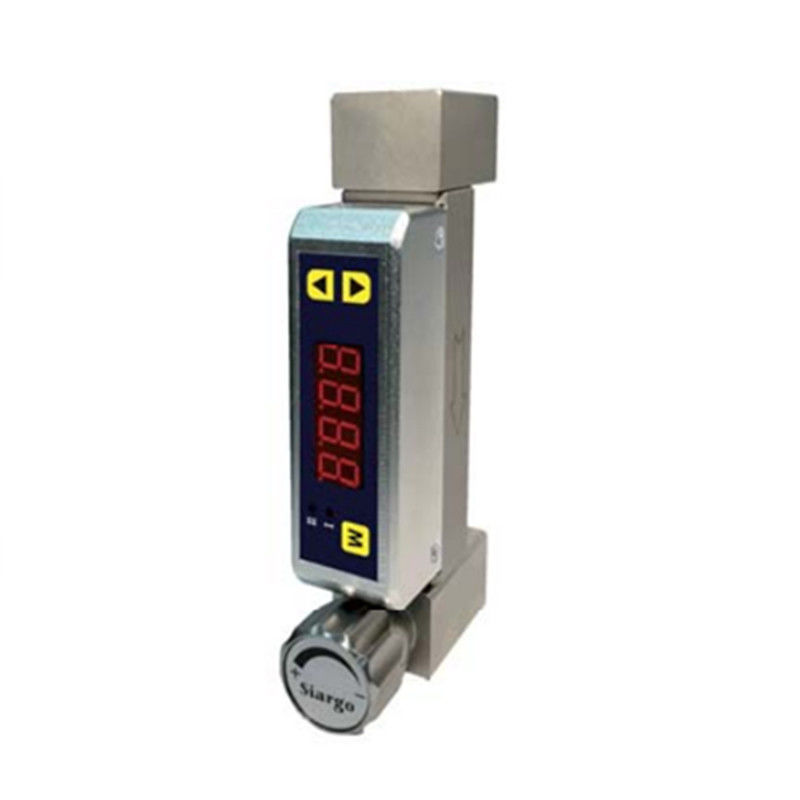

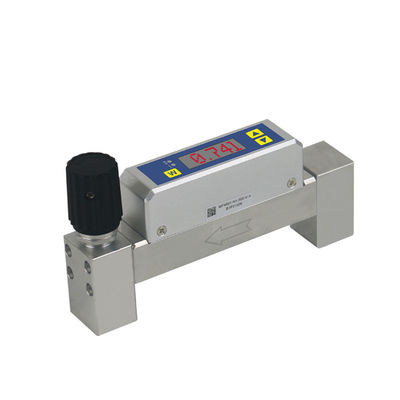

Description MF4600 okygen 02 gas flow meter with controller
MF4600 series mass flow meters are made with proprietary MEMS sensing technology. It applies for clean and dry gas metering and control. The meter is designed with the structure of a rotameter but with the full capability of a digital gas mass flow metrology and LED display. Both instant and accumulated flowrate can be read and displayed. The front buttons let user to access and adjust the parameters as well as stored data. The standard RS485 Modbus enables the remote access and integration.
Specification MF4600 okygen 02 gas flow meter with controller:
Notes: * The above parameters are applicable at 20℃ and 101.325kPa.
** For other flowrate ranges, please contact us.
*** For other gases calibration, please contact us.
Features MF4600 okygen 02 gas flow meter with controller
Designed for low gas flow in fixed channel of 3mm and 8mm, with accumulated flow register
! Direct mass flow measurement with high accuracy
! Multiple sensing elements for extended rangeability over 100:1
! Easy remote accessiable user interface with RS485 Modbus and/or linearized analog data
! Breight LED display for instant and accunulated flowrate with on-site access via front buttons
! Record flowrate patterns with over range indication
! Easy for remote communication and integration
! Compatible with traditional rotameter mechanical connections
! Flow range and mechanical dimensions can be fully customized
