| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | MF5612/MF5619 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD359.00 ~ USD495.00/pc |
| Packaging Details: | RS485 Output Mass Digital Air, Gas Flow Sensor Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Natural Mass Gas Flow Meters, High Quality Air Gas Flow Meter | Accuracy: | ±(1.5+0.5FS)% |
|---|---|---|---|
| Max Pressure: | 1.0 Mpa | Repeatability: | ±0.5% |
| Turn-down Ratio: | 30:1 | Operating Temp.: | -10 ~ 55℃ |
| Humidity: | <95% RH (No Icing Or Condensation) | Power Supply: | 12 ~ 24V DC 50mA |
| Output: | 4 ~ 20mA; RS485; Pulse | Calibration: | Air @ 20℃, 101.325 KPa |
Natural Mass Gas Flow Meters, High Quality Air Gas Flow Meter
Description
The MF5600 Series Mass Flow Meters are specially designed for applications where the display is often required to be placed separated away from the flow channel or meters body, such as the oxgen metering system in a hospital. These meters are opted with the standard industrial user interfaces (RS485 and 4~20mA), and user defined alarm functions for better monitoring or control over the network. The off-the-shelf products (MF5612 and MF5619) are for gas flow measurement of 0 ~ 300 SLPM and 0 ~ 800 SLPM respectively.

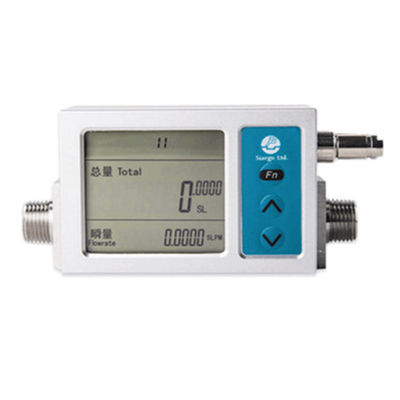

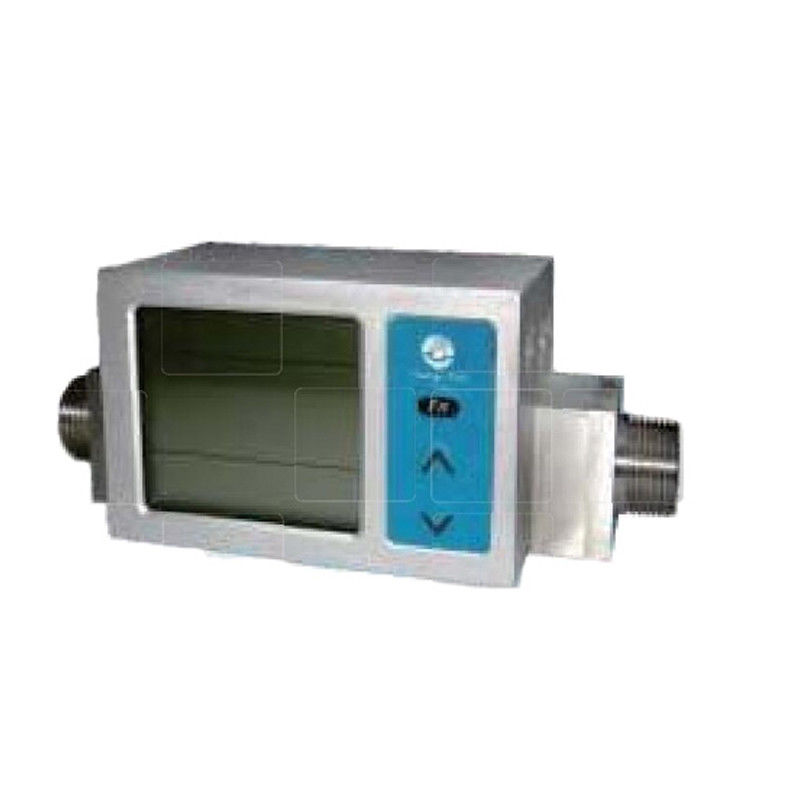

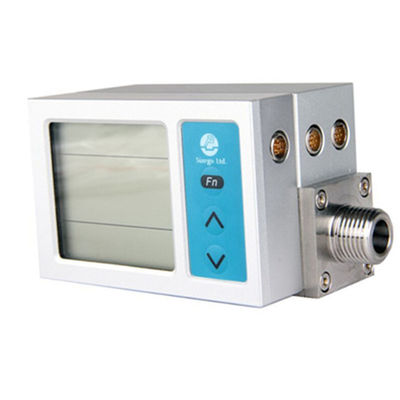

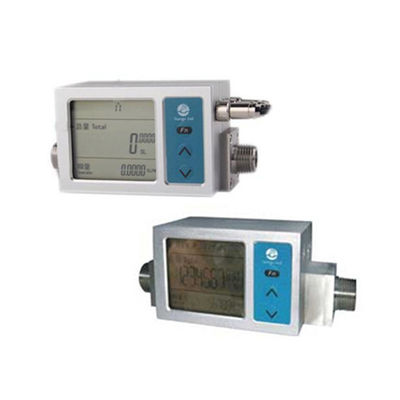

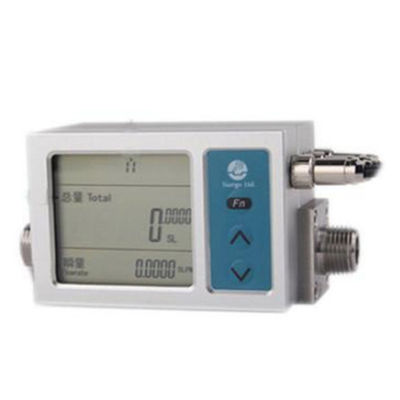

Detailed Images
Specification
| Parameter | MF5612 | MF5619 | Unit |
| DN | 12 | 19 | mm |
| Max. Flowrate | 200, 300 | 600, 800 | SLPM |
| Min. Flowrate | 0.3 | 0.8 | SLPM |
| Turn-down Ratio | 30:1 | ||
| Accuracy | ±(1.5+0.5FS) | % | |
| Repeatability | ±0.5 | % | |
| Max. Pressure | 1.0 | Mpa | |
| Operating Temp. | -10 ~ 55 | ℃ | |
| Humidity | <95% RH (No Icing or Condensation) | ||
| Power Supply | 12 ~ 24V DC 50mA | ||
| Output | 4 ~ 20mA; RS485; Pulse | ||
| Mechanical Connection | NPT 1/2 | NPT 3/4 | |
| Calibration | Air @ 20℃, 101.325 kPa | ||
Notes: the above parameters are applicable at 20℃, 101.325kPa
Mechanical Dimensions
Product Selection
Features

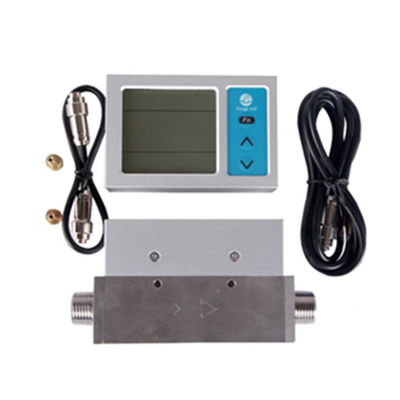

! Detachable display that can be placed away from the flow channel via a specially designed cable
! Standard 4 ~ 20 mA or RS485 for remote data communication
! Hygienic stainless steel body ready for oxygen metering
! Extended rangeability for accurate flow monitoring and control
! Intrinsic safe enclosure
Accessories For MF5600
