| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | MF4003/MF4008 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD129.00 ~ USD159.00/pc |
| Packaging Details: | RS485 Output Mass Digital Air, Gas Flow Sensor Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Mass Air Flow Meter, RS485 Air Flow Meter, Manifold Gas Flow Meters | Accuracy: | ±(1.5+0.2 FS) |
|---|---|---|---|
| Range: | 0 ~ 10, 20, 30, 40, 50 SLPM | Repeatability: | 0.25% |
| Display: | LCD | Power Supply: | 8 ~ 24 Vdc, 50 MA |
| Screw Thread: | DN3/DN8 | Warranty: | 12 Months |
| Calibration: | Air @ 20℃, 101.325 KPa | Output: | RS 485 Or Optional |
Mass Air Flow Meter, RS485 Air Flow Meter, Manifold Gas Flow Meters
Description
MF4000 series mass flow meters are designed for application where manifold flow measurements. The standard flow channels are 3mm and 8mm in diameter, respectively. Plastic finishing with an easy change of the mechanical adaptors enables applications at a low cost and different environments. The meters can be used for process gas control, environmental samplers and many other industrial applications.

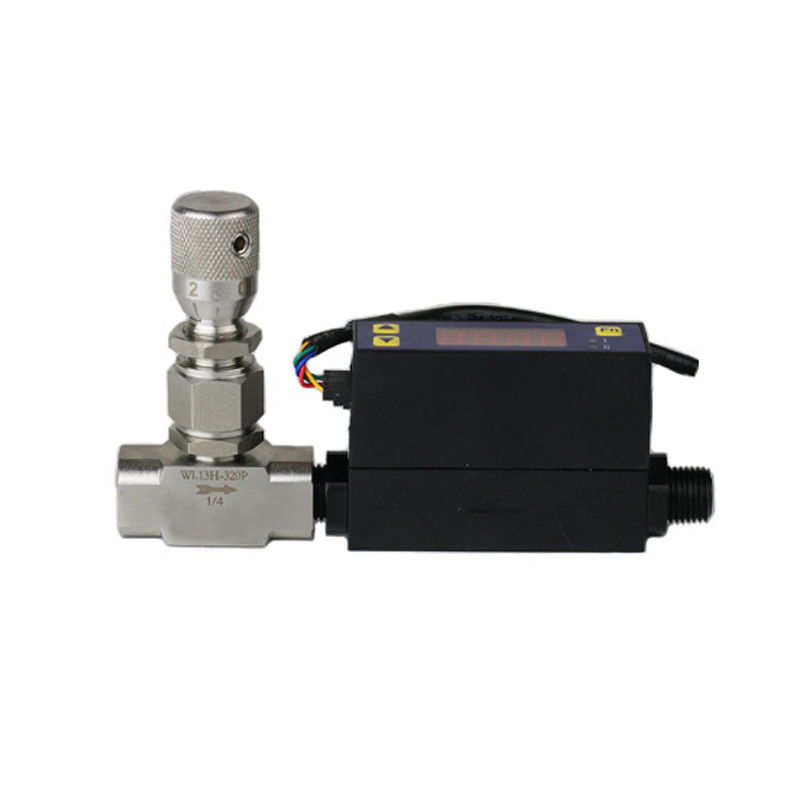

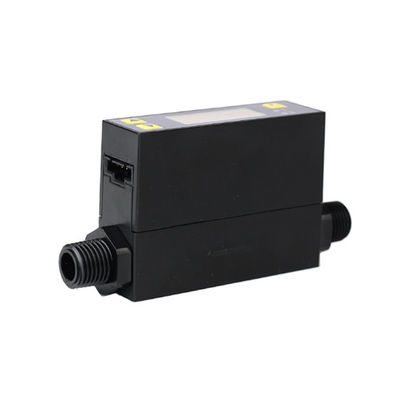

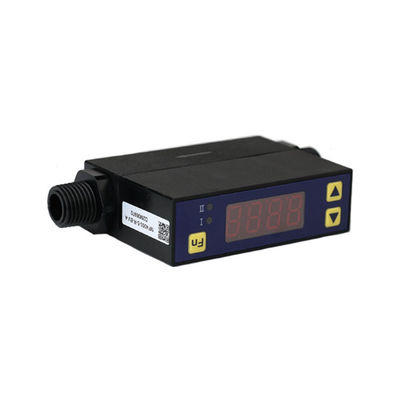

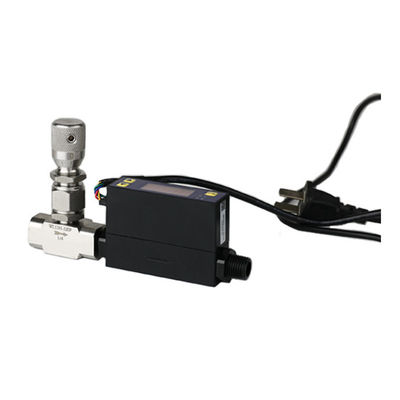

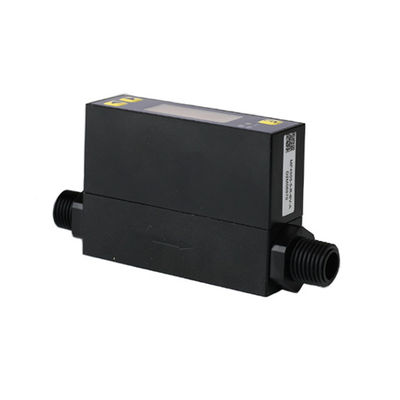

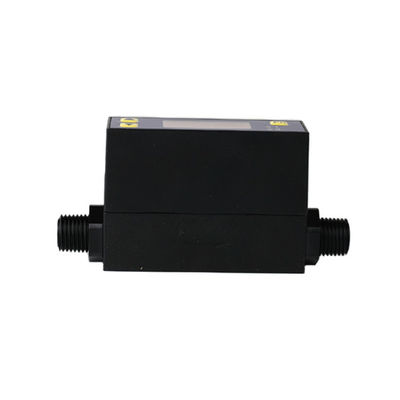

Detailed Images
Specification
| Mass Air Flow Meter, RS485 Air Flow Meter, Manifold Gas Flow Meters | |||
| Parameter | MF4003 | MF4008 | Unit |
| DN | 3 | 8 | mm |
| Flowrate Range | 0 ~ 2, 3, 4, 5 | 0 ~ 10, 20, 30, 40, 50 | SLPM |
| Turn-down | 100:1 | ||
| Accuracy | ±(1.5+0.2 FS) | % | |
| Repeatability | 0.25 | % | |
| Null Shift | ±30 | mV | |
| Output Shift | ±0.12 | % / ℃ | |
| Response Time | 10 (default, 10, 20, 50, 200, 500, 1000 selectable | msec | |
| Power Supply | 8 ~ 24 Vdc, 50 mA | ||
| Output | Linear: Analog 0.5 ~ 4.5 Vdc; RS232, RS485 | ||
| Display | 4 - digit, 7 - segment LED; 2 status LED | ||
| Units | Instant flowrate: SLPM; Flow accumulation: SL | ||
| Display Resolution | 0.001, 0.01, 0.1 selectable | 0.01, 0.1 selectable | SLPM |
| Pressure Drop | 100 | 600 | Pa |
| Max. Pressure | 0.5 | MPa | |
| Working Temperature | -20 ~ +65 | ℃ | |
| Storage Temperature | |||
| Humidity | <95%RH (No icing or condensation) | ||
| Mechanical Connection | BSPT 1/4 (R 1/4), 4mm/6mm/8mm One-touch | BSPT 1/4 (R 1/4) | |
| Keyboard | 3 Keys | ||
| Pins Out | 5 Pins, NS-TECH CD R-5 | ||
| Calibration** | Air @ 20 ℃, 101.325 kPa | ||
| Weight | 55(with BSPT 1/4 (R 1/4), 74(with 4mm / 8 mm One-touch, 71(with 6mm One-touch) | g | |
Notes: * The above parameters are applicable at 20℃ and 101.325kPa.
** For other gases calibration, please contact Siargo
Mechanical Dimensions
Product Selection
Features
! Designed for low gas flow in fixed flow channel of 3mm and 8mm, with accumulated flow register
! Compact design ready for manifold assembly
! Fast response time for solutions of critical applications
! Excellent for manifold process gas monitor and control
! Exchangeable mechanical connectors for easy installation at different applications
! Intrinsic safe enclosure
