| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | FS1015CL |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD79.50 ~ USD95.00/pc |
| Packaging Details: | RS485 Output Mass Digital Air, Gas Flow Sensor Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Model: | FS1015CL | Flow Range: | 0 ~ 100; 0 ~ 150 |
|---|---|---|---|
| Accuracy: | ±(2.0+0.5 FS)% | Repeatability: | 0.5% |
| Response Time: | 8 (Max.) Msec | Power Supply: | 5 (±5%) Vdc |
| Output Signal: | Linear: Analog 0.5 ~ 4.5 Vdc | Product Name: | Gas Flow Sensors Oxygen Flow Sensor Mass Air Flow Meter Sensor |
Description
FS1015CL series mass flow sensors are specially designed for medical equipment flow monitor and control applications, and are made with Siargo's world leading proprietary MEMS mass flow sensors and the smart electronic control system. The sensors directly measure mass flow in the designed channel with a low pressure loss. The current models can be readily applied to ventilators and anesthesia equipments.
FS1015CL can measure a flow up to 150 SLPM. ISO-15mm connection is readily applicable to ventilators and/or anesthesia equipments.

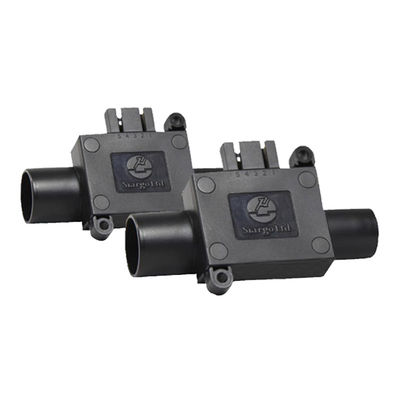

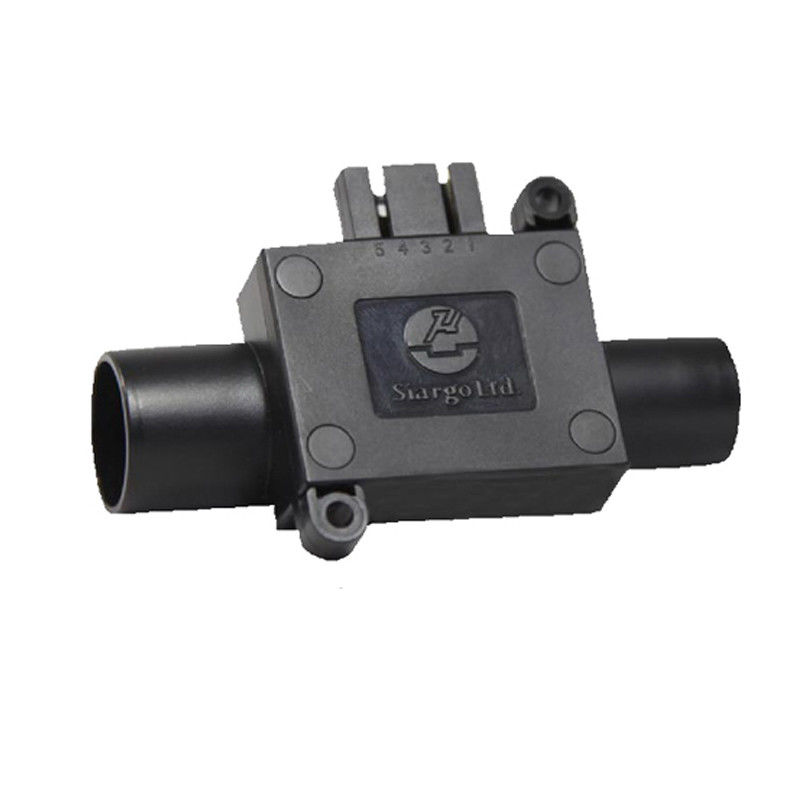

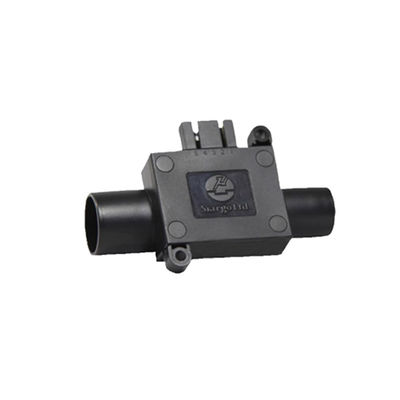

Detailed Images
Specification Gas Flow Sensors oxygen Flow Sensor Mass Air Flow Meter sensor
| Gas Flow Sensors, Ventilator Flow Sensor, Mass Air Flow Meter | ||
| Parameter | FS1015CL | Unit |
| Flow Range | 0 ~ 100; 0 ~ 150 | SLPM |
| Accuracy | ±(2.0+0.5 FS) | % |
| Repeatability | 0.5 | % |
| Response Time | 8 (Max.) | msec |
| Power Supply | 5 (±5%) | Vdc |
| Output | Linear: Analog 0.5 ~ 4.5 Vdc | |
| Pressure Drop (Max.) | 1300 | Pa |
| Max. Working Pressure | 0.2 | Mpa |
| Working Temperature | -10 ~ +55 | ℃ |
| Storage Temperature | -20 ~ +65 | ℃ |
| Humidity | <95% RH (No icing or condensation | |
| Mechanical Connection | ISO - 15 mm | |
| Pins Out | 5 Pins, NS-TECH CD R-5 | |
| Calibration | Air @ 20℃, 101.325 kPa | |
| Weight | 21.5 | g |
Note: The above parameters are applicable at 20℃ and 101.325kPa.
Features Gas Flow Sensors oxygen Flow Sensor Mass Air Flow Meter sensor
! MEMS thermal mass flow sensor
! Excellent rangeability with integrated multiple sensing elements
! High stability at null and full scale
! Fast response
! Low power consumption
! Low pressure loss
Mechanical Dimensions
