| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | TUC-2000P |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD129 ~ USD159/pc |
| Packaging Details: | RS485 Output Mass Digital Air, Gas Flow Sensor Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Ultrasonic Sulfuric Acid Flow Meter | Accuracy: | Better Than ±1% |
|---|---|---|---|
| Power Supply: | Built-in Rechargeable Ni-MH Battery Or AC220V | Type: | Ultrasonic Flow Meter |
| Flow Velocity Range: | 0-±30m/s | Repeatability: | 0.2% |
| Display: | LCD With Backlight | Charging: | Intelligent Charging With AC 220V |
| Power Consumption: | 2W | Net Weight: | 2.0kg |

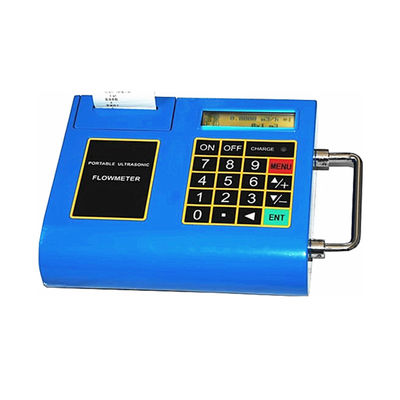

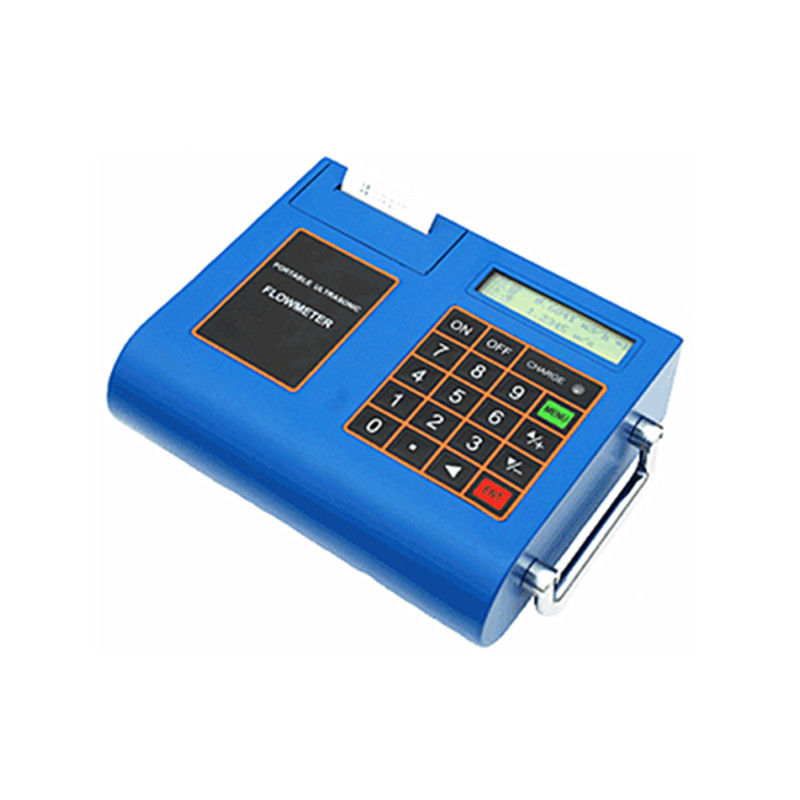

Portable ultrasonic sulfuric acid flow meter milk
Description
The ultrasonic sewage flow meter incorporates the latest ICs manufactured from the famous semiconductor manufacturers like Philips,Msxim TI,etc.The hardware features the ease of operation,high accuracy and outstanding reliability,while the software provides a very user friendly interface and much more functions.This ultrasonic sewage flow meter can also work properly even in demanding industrial environments .
Detailed Images
Specification
| Portable ultrasonic sewage flow meter milk | |
| Main Unit | 2line×20 character LCD with black light |
| Working temperature: -20℃ ~ +60℃ | |
| Mini thermal printer with 24 line character output | |
| 4×4+2 push button keypad | |
| RS485 Serial port | |
| Transducers | |
| Small Size Transducer for Pipe Size | DN15 ~ 100mm |
| Medium Size Transducer for Pipe Size | DN50 ~ 1000mm |
| Large Size Transducer for Pipe Size | DN300 ~ 6000mm |
| Flow Velocity Range | 0 ~ ±30m/s |
| Liquid Temperature | ≤110℃ |
| Accuracy | Better than ±1% |
| Charging | Intelligent Charging with AC 220V |
| Remarks | With a high strength carrying case suitable for normal and harsh environment |
Features
·High accuracy:Linearity:0.5%,repeatability:0.2%,accuaracy up to ±1%
·Non-contact measurement
·Non-instrusive measuring:Non-intrusive,clamp-on transducer,no pressure drop,no pipe disturbance
·Wide measuring range:Several types transducer for seletion,pipe size from DN15mm to DN6000mm
·Large-screen LCD
·Built-in data logger
·Built-in printer
Applications
This ultrasonic sewage flow meter is mainly used to measure ultra-pure liquids,potable water chemicals,raw sewage,reclaimed water,cooling water,river water,plant effluent,etc.
