| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | PL01 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD85 ~ USD145/pc |
| Packaging Details: | RS485 Output Mass Digital Air, Gas Flow Sensor Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |

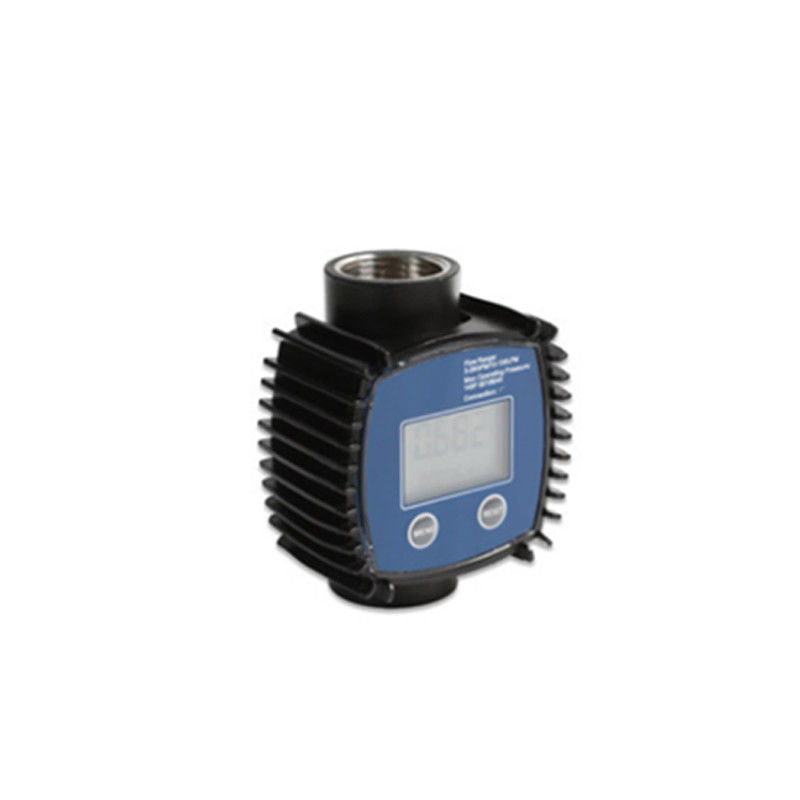

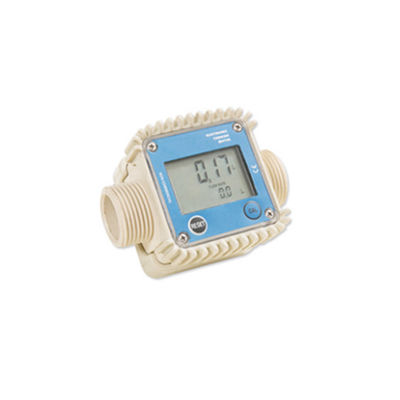

| Product Name: | Mini Electronic Liquid Flow Meter/flow Meter Gauge | Accuracy: | 0.5 |
|---|---|---|---|
| Power Supply: | 24VDC | Output: | 4-20mA |
| Nominal Pressure: | 1.0Bar ~ 20bar | Explosion-proof Mark: | ExiaIICT4 |
| Protection Class: | IP65 | Medium Temperature: | -20℃~80℃ |
| Ambient Temperature: | -30℃~60℃ |
The working principle of the Mini electronic liquid flow meter/flow meter gauge is based on Faraday's law of electromagnetic induction. In the electromagnetic flowmeter, the conductive medium in the measuring tube corresponds to the conductive metal rod in the Faraday test, and the two electromagnetic coils at the upper and lower ends generate a constant magnetic field. When a conductive medium flows, an induced voltage is generated. The two electrodes inside the pipe measure the induced voltage generated. The measuring pipe is electrically isolated from the fluid and the measuring electrode by non-conductive linings (rubber, , etc.).
1, the measurement is not affected by fluid density, viscosity, temperature, pressure and conductivity changes;
2, the measurement tube without obstruction of moving parts, no pressure loss, straight pipe requirements lower;
3, the series of nominal diameter DN15 ~ DN3000. Sensor lining and electrode materials have a variety of options;
4, the converter uses a new excitation method, low power consumption, zero stability, high accuracy. Flow range of up to 1500: 1;
5, the converter can be integrated with the sensor or split type;
6, the converter uses 16-bit high-performance microprocessors, 2x16LCD display, parameter settings convenient, reliable programming;
7, the flow meter for the two-way measurement system, built-in three totalizer: positive total, reverse total and the difference between the total; can display. Zhuang, reverse flow, and has a variety of output: current, pulse, Communication, HART;
8, the converter using surface mount technology (SMT), with self-test and self-diagnostic function
Accuracy: ± 1.5% ± 1.5%
Nominal diameter: DN300-DN3000
Measurable minimum flow rate: 0.1 m / s
Measurable maximum flow rate: m / s
Range ratio: 1:20, can be customized according to customer requirements
Display: optional
Output signal: 4-20mA
Communication interface: optional RS485
Power supply: 220VAC, tolerance 15% or +24 VDC, ripple ≤ 5%
Explosion-proof grade: optional Exd [ia] qIICT5
Protection class: IP65, optional IP68
Power consumption: 6.5W
Measuring body (sensor) Material: 304 stainless steel
Measuring element (electrode) Material: 316L stainless steel
Measuring range: <130 ℃
Established with 10 million capital in 2015, Xi'an Shelok Technology Instrument Co., Ltd. is a professional designer and manufacturer that engaged in the fields of pressure measurement instruments. We specializing in developing high precision pressure transmitter, pressure gauges, pressure calibration pump and dead weight tester,level transmitter, flow meter etc., widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
Specialties
pressure transmitter/sensor/transducer, pressure gauge, pressure calibration hand pump, and water level sensor
1, more than 10 years industry background
The original organization is Xi'an Precise Instruments Factory, established in 2007, and mainly produce pressure gauge, stainless steel pressure gauge, anti-vibration pressure gauge, pressure transmitter, pressure switch, pressure calibrator, and so on. In 2013, Yunyi Group is established for development command, and process measurement instruments about water, flow, temperature are added in our product catalogue. In 2015, Xi'an Shelok instruments Co., Ltd is estalished with 10 million capita for meeting the international business expanding demand.
2, a company of design and manufacture capability
Mainly focus on design and customized solution offer, and combining our professional industry background and our capability of supply chain management in local market, more comprehensive products and services could be offered.
3, R&D team + cooperation with colleges and universities
Keeping our capability of technology innovation improved makes us available to meet various technical challenges
4, three inspection steps + good warranty service
Strict inspection operation process keeps our products qualified, and clearly warranty policies help customer's solve after-sale problems and lower their cost.
5, sample first policy.
By offering most suitable proposal to help customers maximize their profit.
6, employees with + 4 years international experience are more than 100%
Professional and effective international business operation offers better service expericence
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
