| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | GDL |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD215 ~ USD795/pc |
| Packaging Details: | RS485 Output Mass Digital Air, Gas Flow Sensor Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | GPRS Ultrasonic Flow Meter Application Of Cold And Heat Water | Flow Rate Range: | 0.01~±32 M/s |
|---|---|---|---|
| Diameter Range: | DN32-10000mm | Accuracy: | ± 1% |
| Frequency: | 20 KHz To 2000 KHz | Operating Voltage: | Isolated DC12-36V Or AC85-250V |
| Power Consumption: | <1W | Protection Class: | IP65 (host), IP68 (sensor) |
| Explosion-proof Grade: | EXiaII BT4Gb | Storage Humidity: | ≤80%RH No Condensation |

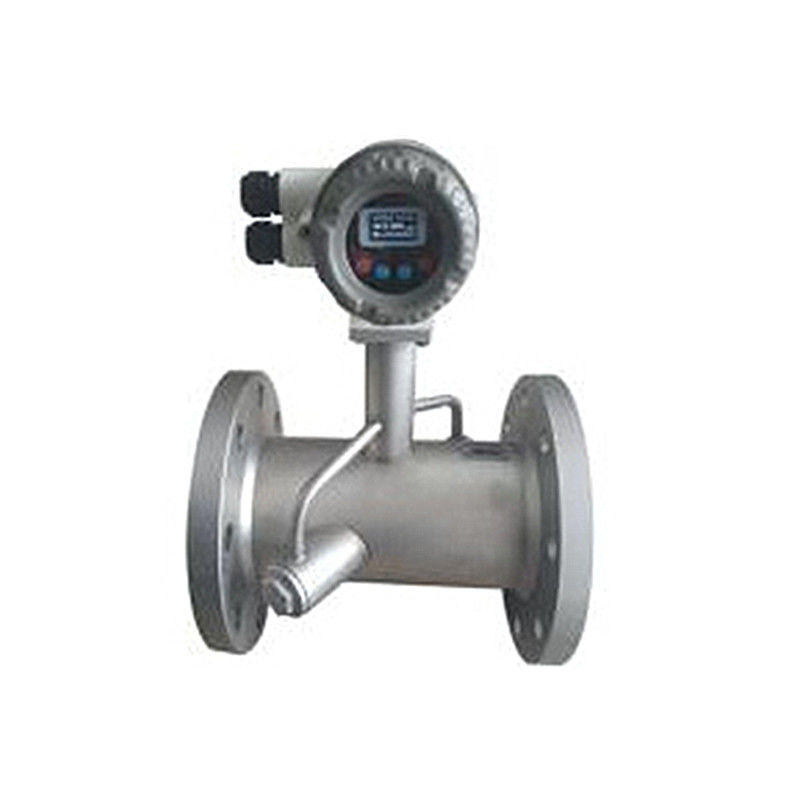

SLK-GDL204 Ultrasonic flow meter application of cold and heat water integrated thickness measurement function,non-open-hole and non-full-tube measurement.It has realized the all-digital, humanized design concept, with perfect flow measurement control, data transmission and man-machine communication. No need to open the hole, easy to install, does not affect the on-site production.The measurement is accurate even the liquid is uder high temperature, high pressure. This ultrasonic flow meter is highly reliable, non-polluting, stable in performance, and does not require contact with industrial media to meet flow metering requirements. It is suitable for flow measurement in various sizes.And the users can order the types with GPRS, Wifi.
·Backup and restore settings parameters
·Wireless infrared remote control menu interface
·Adjustable pulse output and analog output
·Support isolated 4-20mA output
·Support HART protocol
·Support Bluetooth, GPRS, GPS communication, etc.
·Support custom serial data format
·Support storage mode can choose EEPORM, TFT memory card or USB storage
·Support dual-channel measurement function
·Support measurement of pipe thickness function
·Support for non-open hole non-full pipe measurement function
·Support cold calorimeter measurement function
The measuring medium is a single stable liquid such as water, seawater, sewage, and alcohol. The measuring materials are uniform and dense pipes such as steel, stainless steel, cast iron, PVC, and glass fiber reinforced plastic. Therefore, it can be widely used in various areas related to flow measurement.
·Heating, power generation
·Metallurgy, mining
·Petroleum, chemical industry
·Water Resources and Water Resources
·Food and Medicine
·Water and Drainage
·Energy-saving monitoring, water-saving management
·Papermaking, hull manufacturing industry
·Heat measurement, heat balance
·Flow inspection, flow tracking and acquisition
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Xi'an Shelok Instrument Technology co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
