| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | TUF-2000H |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD315 ~ USD435/pc |
| Packaging Details: | RS485 Output Mass Digital Air, Gas Flow Sensor Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Accuracy: | ±1% Of Reading At Rates>0.2 Mps | Weight: | 538g |
|---|---|---|---|
| Response Time: | 0-999 Seconds, User-configurable | Liquid Types: | Virtually All Liquids |
| Velocity: | ±32 M/s | Product Name: | Cheap Handheld Hydraulic Oil Ultrasonic Water Analog Flow Meter |
Description cheap handheld hydraulic oil ultrasonic water analog flow meter

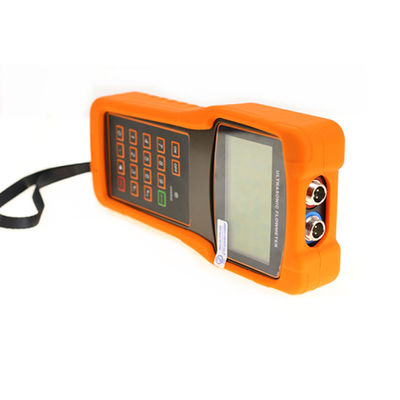

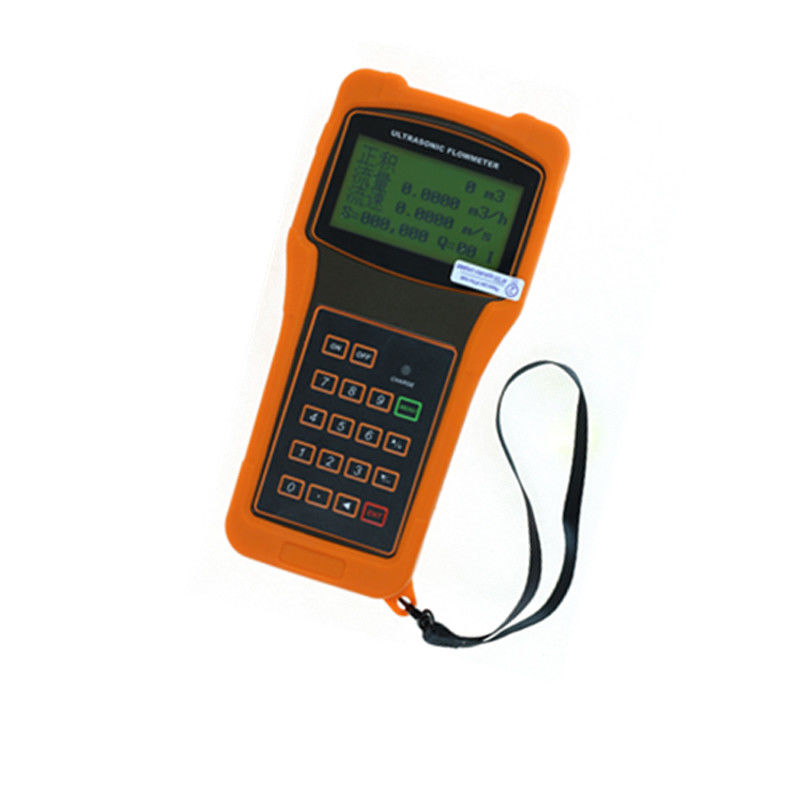

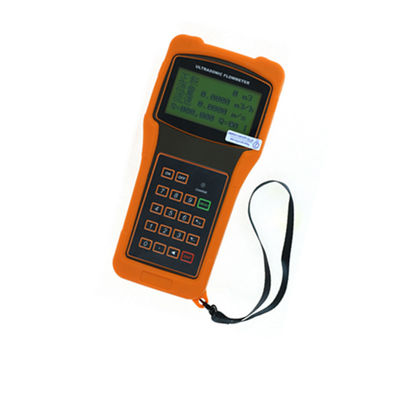

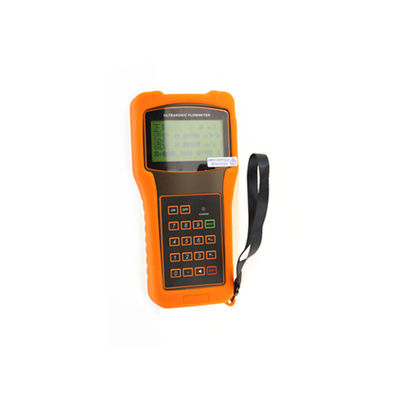

ZFD-100H ultrasonic flow meter is designed to measure the fluid velocity of liquid in a full/closed pipe. It is a hand held measurement system which is both easy to install and use. It operates according to the difference in the transit time of flight measured, and determines the flow velocity by measuring the travel time of a pulse from one transducer to the next.

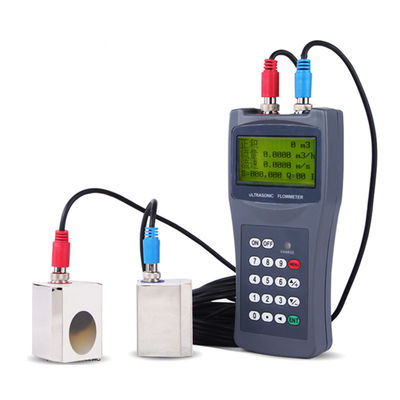

Flow in the same direction takes less time to travel to the second transducer than does flow in the opposite direction. Electroacoustic transducers receive and emit brief ultrasonic pulses through the liquid of the pipe. Transducers are vertically placed at both sides of the measured pipe. Sensors are placed on the pipe and fastened by means of a clamp. The display will quickly show the flow velocity. It can be used for metallic, plastic and rubber tubes.
Specifications cheap handheld hydraulic oil ultrasonic water analog flow meter:
| Repeatability | Better than 0.2% |
| Accuracy | ±1% of reading at rates>0.2 mps |
| Response Time | 0-999 seconds, user-configurable |
| Velocity | ±32 m/s |
| Totalizer | 7-digit totals for net, positive and negative flow respectively |
| Liquid Types | Virtually all liquids |
| Security | Setup values Modification Lockout. Access code needs unlocking |
| Display |
4x8 Chinese characters or 4x16 English letters, display instant flow, velocity, total flow,signal status |
| Signal output | Non-isolation RS232(FUJI extension protocol), one channel isolation OCT output |

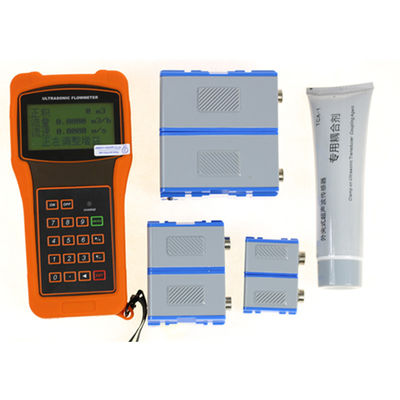

| Transducers | Clamp on type transducers |
| Transducer Cord Length | Standard 2x10 meters, optional 2x 500 meters |
| Power Supply |
3 AAA Ni-H built-in batteries. When fully recharged it will last over 12 hours of operation. 100V-240VAC for the charger |
| Data Logger | Built-in data logger can store over 2000 lines of data Housing Material ABS |
| Case Size | 100x66x20mm |
| Handset Weight | 514g (1.2 lbs) with batteries |
Dimension cheap handheld hydraulic oil ultrasonic water analog flow meter
| Type | HS Sensor | HMSensor | S1 Sensor | M1Sensor | L1 Sensor | S2 Sensor | M2Sensor | L2 Sensor | ||||
| Diameter | DN15-100 | DN50-700 | DN15-100 | DN50-700 | DN300-6000 | DN15-100 | DN50-700 | Above 80 | ||||
| Material | Aluminum alloy | ABS | Special high-temperature Material | |||||||||
| Frequency | 1MHZ | |||||||||||
| Installation method | V | V,Z | V | V,Z | Z | V | V,Z | Z | ||||
| calibration | Calibrate with main unit | |||||||||||
| magnetism | With magnetic | Without magnetic | ||||||||||
| Temperature | 0℃-70 | 0-160℃ | ||||||||||
| Protection Class | IP65 | |||||||||||
|
Dimension (mm) |
200 * 25*25mm |
280* 40*40mm |
45* 30*30mm |
60* 45*45 mm |
80*70*55mm |
90*85*24 mm |
90*28*29mm | |||||
| Weight (g) | 250 | 1080 | 75 | 250 | 650 | 94 | 150 | |||||
| Liquid types | water, sea water, Wast water,chemical liquids,oil,crude oil,alcohol,beer,milk ect | |||||||||||
| Suspension concentration | ≤20000ppm,may contain very small amount of air bubbles | |||||||||||
|
Pipe material |
All metals ,most plastics fiber glass ,ect | |||||||||||
| dedicated shielded transducer cable | standard length 5 meter*2,can be extended to 10 meter *2 or 15 meter *2 | |||||||||||
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
