| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | MF5000 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD895 ~ USD1035/pc |
| Packaging Details: | RS485 Output Mass Digital Air, Gas Flow Sensor Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Oxygen 4-20ma Gas Mass Flow Meter Price | Accuracy: | ±(1.5+0.5FS)% |
|---|---|---|---|
| Environment Temperature: | -20℃ ~ +60℃ | Humidity: | <95%RH (No Icing Or Condensation |
| Flow Channel: | 3~19 Mm | Display: | Flowrate And Accumulated Flow |
| Interface: | 4~20 MA; RS485; Pulse | Calibration: | Air @ 20℃, 101.325 KPa |
| Protection: | IP40 (Without Ex Proof Model); IP66( With Ex Proof Model) | Ex Proof: | Ex Ia IIC T4 |
Description
The MF5000 Series Mass Flow Meters are specially designed for small pipe flow monitoring and control. The Series can measure gas flow in a pipe diameter as small as 3 mm, but not over 19 mm. With the self-flow conditioning feature of the MEMS sensor package, the meters feature an extremely low pressure loss compared to the traditional by-pass thermal mass flow meters in this application scope. The accuracy of the meters are generally ±(1.5+0.5FS)% or better depending on the requests. The meters can work at an environment of -20℃ to +60℃ and pressure up to 1.5 Mpa. Applications include semiconductor gas process monitoring and control, hospital oxygen gas monitoring, etc.

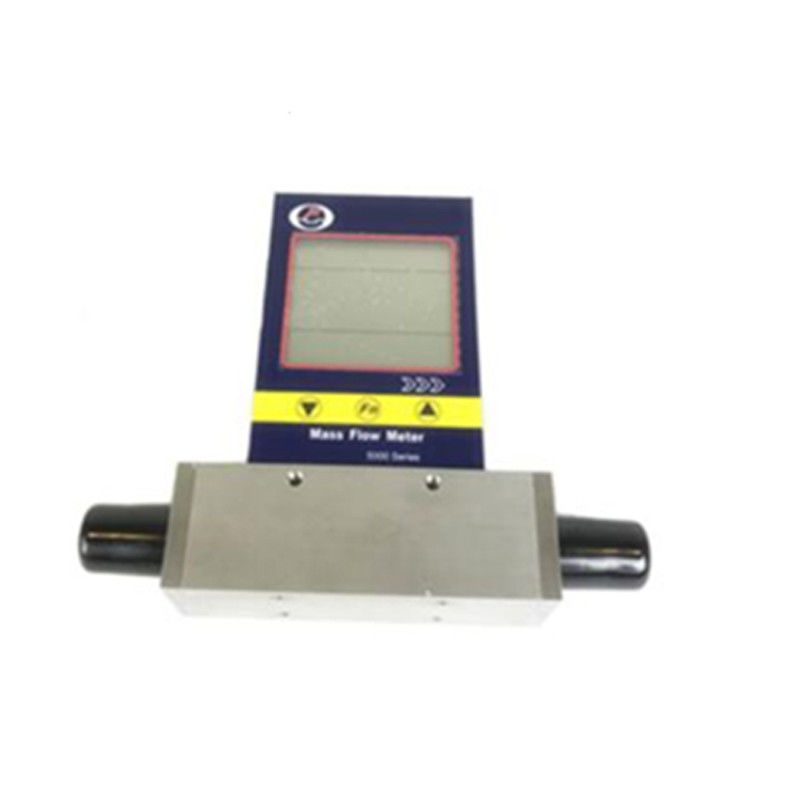

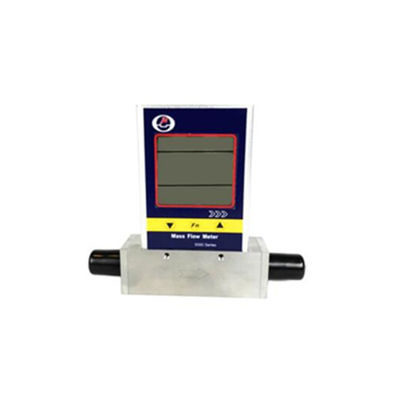

Detailed Images
Specification
| Mass Flow Products Gas Flow Meters MF5000 Series | |
| Accuracy | ±(1.5+0.5FS)% |
| Environment Temperature | -20℃ ~ +60℃ |
| Humidity | <95%RH (No Icing or Condensation |
| Flow Channel | 3~19 mm |
| Display | Flowrate and accumulated flow |
| Interface | 4~20 mA; RS485; Pulse |
| Calibration | Air @ 20℃, 101.325 kPa |
| Protection | IP40 (Without Ex proof model); IP66( With Ex proof model) |
| Ex Proof | Ex ia IIC T4 |
Notes: the above parameters are applicable at 20℃ and 101.325kPa
Mechanical Dimensions
Sensor Selection
Notes: There is flow rate number only for unit SLPM. If other unit is selected, there must be flow rate number with unit together.
Features
! Highly sensitive,measuring as low as 8mm/sec,and as 65m/sec with a single assembly
! Directly sense mass flow using thermal mass flow principle
! Propriety MEMS sensor package design for better reliability
! Standard 12~24VDC power supply
! Low pressure loss forreducing energy cost
! Industrial standard Modbus protocol for easy networking and remote control
