| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | MF5806 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD45 ~ USD105/pc |
| Packaging Details: | RS485 Output Mass Digital Air, Gas Flow Sensor Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Medical Oxygen Flow Meter With Humidifier Portable Oxygen Inhaler | Accuracy: | 1.5% |
|---|---|---|---|
| Range: | 0 ~ 10SLPM | Repeatability: | 0.5% |
| Display: | LCD | Power Supply: | 4 AA Batteries(LR6) Or AC Adapter (6 ~ 15V DC) |
| Digital Output: | RS485(Modbus) | Flow Resolution: | 0.01SLPM |
| Max. Pressure: | 0.6Mpa | DN: | 6.0mm |
Description
MF5806 series oxygen flow meters are specially designed for hospital individual oxygen therapy applications. it provides precise measurement of instant oxygen intake rate and accumulated oxygen dosage for the individual oxygen delivery system. the design provides low power consumption that make it possible for operation on battery when power is an concerm. the meter can be directly connected to the central station via RS 485 that can provide remote monitoring and control which will reduce the risk of oxygen over dosing.

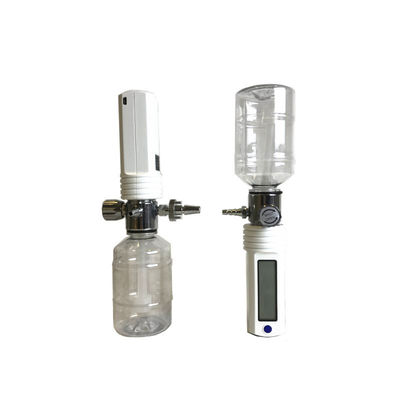

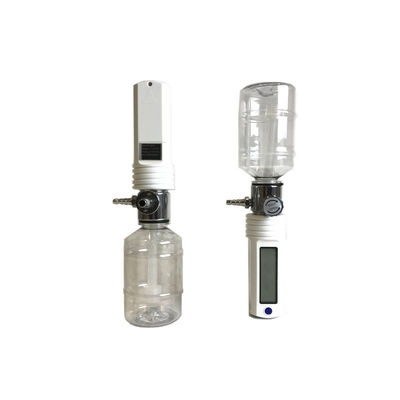

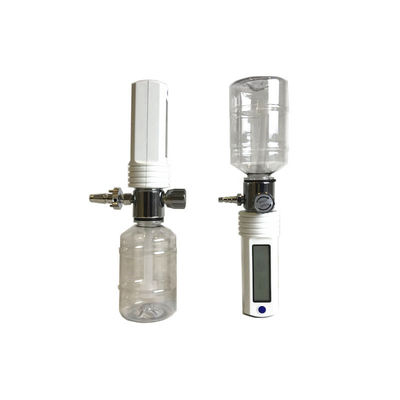

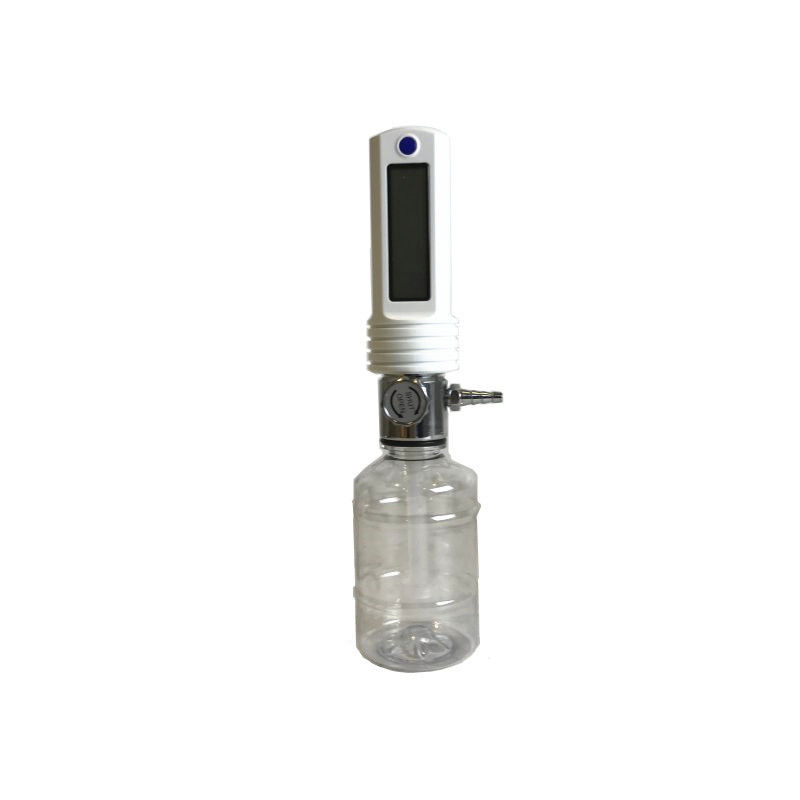

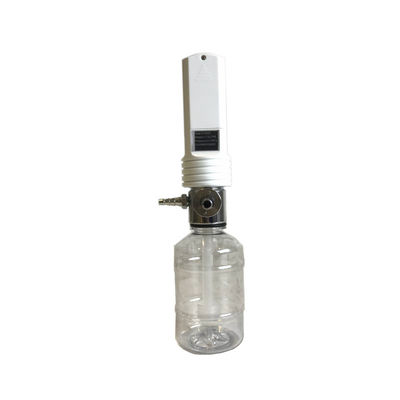

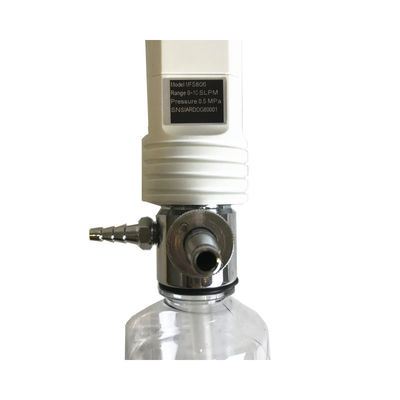

Detail Images
Features
Plug-and-paly hospital oxygen deliver design for easy usage
Mass flow technology provide precise instant rate and accumulated dosage
Historical data storage and retrieval
Password protected access
Instant rate and accumulated dosage alarm
Excellent repeatability and accuracy
Low power design with stand-alone operation by battery
Specification
| Parameter | MF5806 | Unit |
| Flow Range | 0 ~ 10 | SLPM |
| Accuracy | ±(1.5+0.5FS) | % |
| Repeatability | 0.5 | % |
| Power Supply | 4 AA batteries(LR6) or AC adapter (6 ~ 15V DC) | |
| Power Consumption | ≤10 | mW |
| Digital Output | RS485(Modbus) | |
| Display | LCD | |
| Display Information | Instant flow: SLPM; Accumulated flow: M3; Temperature: ℃; Battery status | |
| Flow Resolution | 0.01 | SLPM |
| User Function | Password; alarm limit; accumulated flow; zero reset | |
| Max. Pressure | 0.6 | Mpa |
| Working Temperature | -10 ~ +55 | ℃ |
| Pressure Loss | ≤500 | Pa |
| Battery Life | >60 | Day |
| Calibration | Air @ 20℃, 101.325 kPa | |
| Pin Out | mini USB(optional) | |
| DN | 6.0 | mm |
| Mech. Connection | Medical Oxygen Nozzle (customizable) | |
| Weight | 350 | g |
Dimensions
