| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | MF5806 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD45 ~ USD105/pc |
| Packaging Details: | RS485 Output Mass Digital Air, Gas Flow Sensor Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Medical Oxygen Inhaler Flow Meter With Humidifier | Accuracy: | 1.5% |
|---|---|---|---|
| Range: | 0 ~ 10SLPM | Repeatability: | 0.5% |
| Display: | LCD | Power Supply: | 4 AA Batteries(LR6) Or AC Adapter (6 ~ 15V DC) |
| Digital Output: | RS485(Modbus) | Flow Resolution: | 0.01SLPM |
| Max. Pressure: | 0.6Mpa | DN: | 6.0mm |

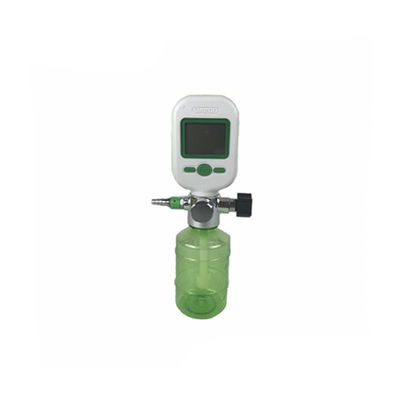

Medical oxygen inhaler flow meter with humidifier
Description
MF5806 series oxygen flow meters are specially designed for hospital individual oxygen therapy applications. it provides precise measurement of instant oxygen intake rate and accumulated oxygen dosage for the individual oxygen delivery system. the design provides low power consumption that make it possible for operation on battery when power is an concerm. the meter can be directly connected to the central station via RS 485 that can provide remote monitoring and control which will reduce the risk of oxygen over dosing.

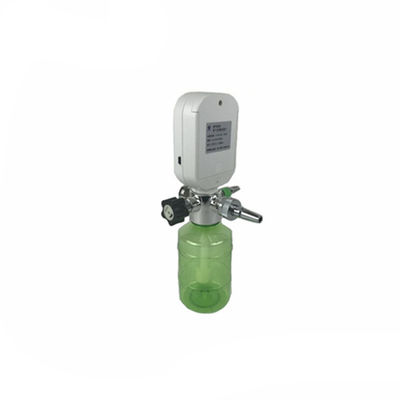

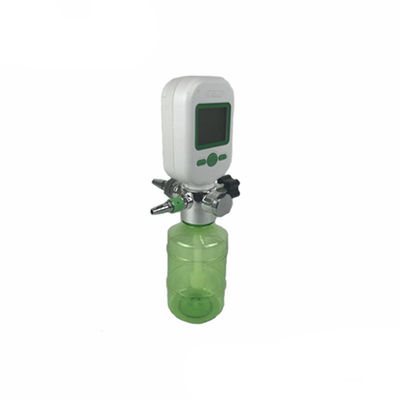

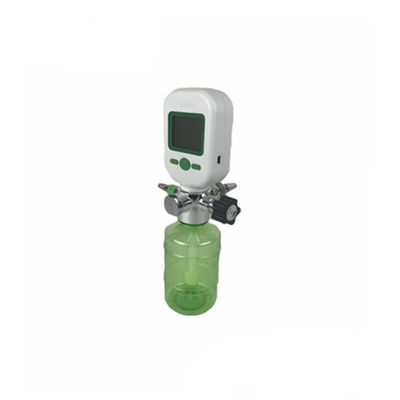

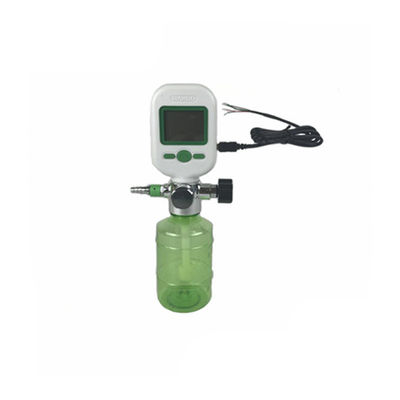

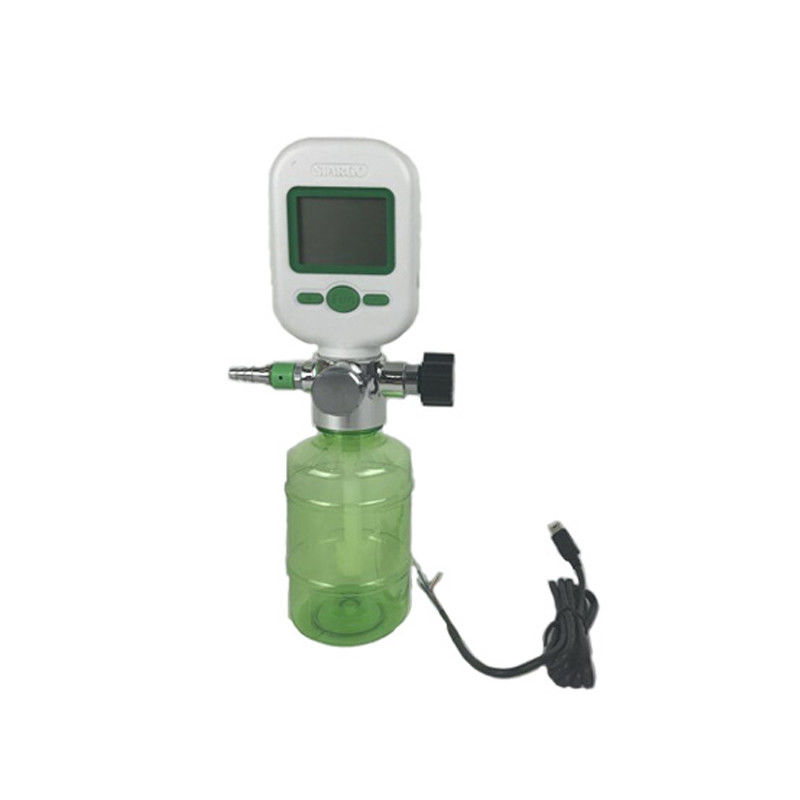

Detailed Images
Features
Plug-and-paly hospital oxygen deliver design for easy usage
Mass flow technology provide precise instant rate and accumulated dosage
Historical data storage and retrieval
Password protected access
Instant rate and accumulated dosage alarm
Excellent repeatability and accuracy
Low power design with stand-alone operation by battery
Specification
| Parameter | MF5806 | Unit |
| Flow Range | 0 ~ 10 | SLPM |
| Accuracy | ±(1.5+0.5FS) | % |
| Repeatability | 0.5 | % |
| Power Supply | 4 AA batteries(LR6) or AC adapter (6 ~ 15V DC) | |
| Power Consumption | ≤10 | mW |
| Digital Output | RS485(Modbus) | |
| Display | LCD | |
| Display Information | Instant flow: SLPM; Accumulated flow: M3; Temperature: ℃; Battery status | |
| Flow Resolution | 0.01 | SLPM |
| User Function | Password; alarm limit; accumulated flow; zero reset | |
| Max. Pressure | 0.6 | Mpa |
| Working Temperature | -10 ~ +55 | ℃ |
| Pressure Loss | ≤500 | Pa |
| Battery Life | >60 | Day |
| Calibration | Air @ 20℃, 101.325 kPa | |
| Pin Out | mini USB(optional) | |
| DN | 6.0 | mm |
| Mech. Connection | Medical Oxygen Nozzle (customizable) | |
| Weight | 350 | g |
Dimensions
Related products
Company Information
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Xi'an Shelok Instrument Technology Co.,Ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
