| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | TUF-2000H |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD315 ~ USD495/pc |
| Packaging Details: | RS485 Output Mass Digital Air, Gas Flow Sensor Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Tuf-2000h Ultrasonic Flow Meter China Ultrasonic Flow Water Meter | Flow Velocity: | 0-±32m/s |
|---|---|---|---|
| Repeatability: | 0.2% | Working Temperature: | -20--160℃ |
| Display: | LCD With Backlight | Accuracy: | ±1% Of Reading At Rates>0.2 Mps |
| Medium: | Virtually All Liquids | Net Weight: | 4kg |
| Package: | Aluminum Alloy Box | Warranty: | 1 Year |
TUF-2000H ultrasonic flow meter china ultrasonic flow water meter
Description
TUF-2000H flow meter incorporates the latest ICs manufactured from the famous semiconductor manufacturers like Philips, Maxim, TI, Win bond, and Xilinx. The hardware features the ease of operation, high accuracy and outstanding reliability, while the software provides a very friendly user interface and much more functions. It employs a patent balanced lower voltage multi-pulse igniting circuit which increases the anti-interference ability magnificently so that the flow meter will work properly even in demanding industrial environments such as those with power frequency transverter working nearby.
TUF-2000H ultrasonic flow meter is designed to measure the fluid velocity of liquid within a closed conduit. The transducers are a non-contacting, clamp-on type, which will provide benefits of non-fouling operation and easy installation.

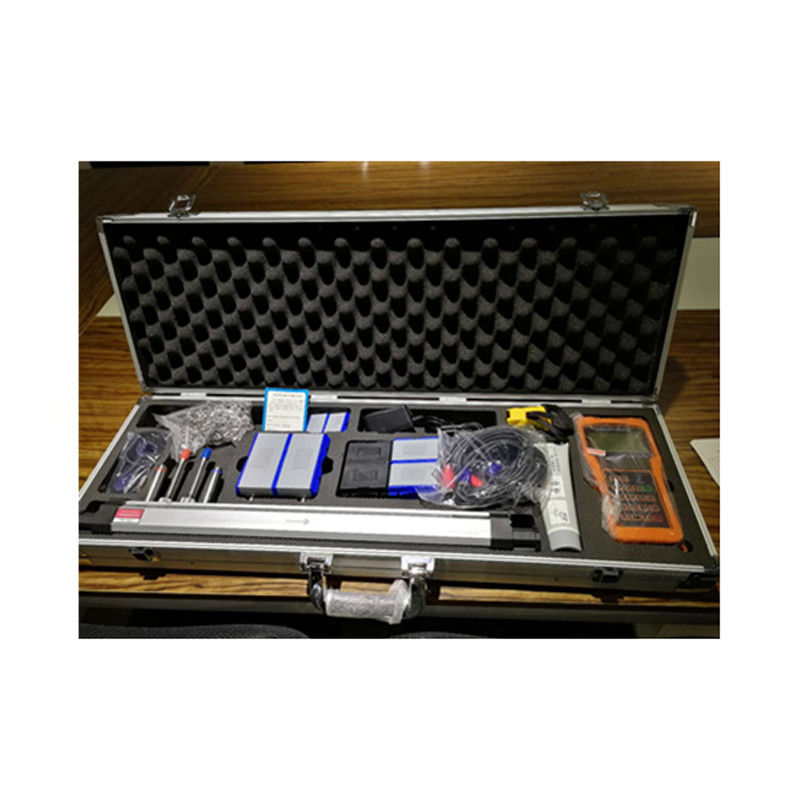

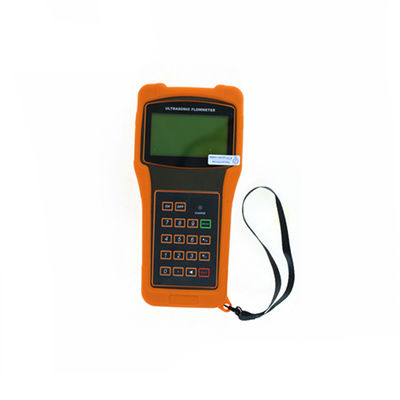

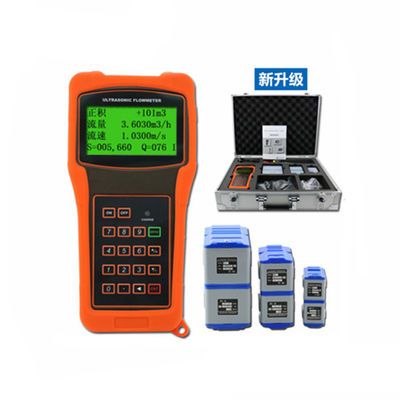

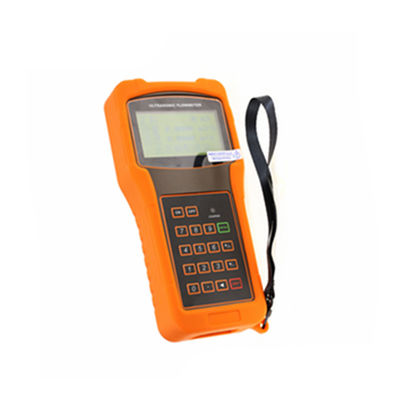

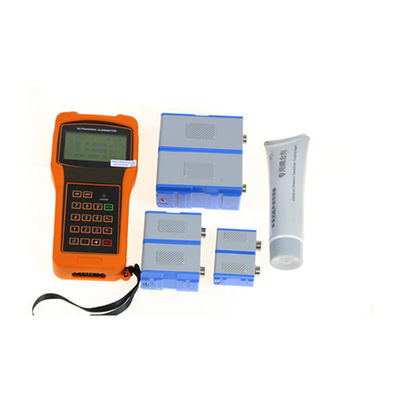

Detailed Images
Features
High Accuracy measuring,Accuracy : ±1 % , l inearity : 0.5 % , repeatability : 0.2 %
Wide measuring range
Several types transducer for selec tion, m easur ing pipe size from D N15mm to DN6000mm
Large capacity battery
Built - in rechargeable Ni - MH battery, provide over 12 hour s of continuous operation
Non- intrusive measuring
Non- intrusive, clamp-on transducer, no pressure drop, no pipe dis turbance
Display instantaneous flow, accumulated flow (positive, negative and net) , velocit y,
working status etc .
Built- in data logger
Built- in 24 K data logger, s tore over 2000 l ines m easur ing data
Specification
| Linearity | 0.5% |
| Repeatability | 0.2% |
| Accuracy | ±1% of reading at rates>0.2 mps |
| Response Time | 0-999 seconds, user-configurable |
| Velocity | ±32 m/s |
| Pipe Size | 15mm-6000mm |
| Totalizer | 7-digit totals for net, positive and negative flow respectively |
| Liquid Types | Virtually all liquids |
| Security | Setup values Modification Lockout. Access code needs unlocking |
| Display | 4x8 Chinese characters or 4x16 English letters |
| Communication Interface | RS-232, baud-rate: from 75 to 57600. Protocol made by the manufacturer and compatible with that of the FUJI ultrasonic flow meter. User protocols can be made by user requirements |
| Transducer Cord Length | Standard 5m x 2, optional 10m x 2 |
| Power Supply |
3 AAA built-in Ni-H batteries. When fully recharged it will last over 12 hours of operation. 100V-240VAC for the charger |
| Data Logger | Built-in data logger can store over 2000 lines of data |
| Manual Totalizer | 7-digit press-key-to-go totalizer for calibration |
| Housing Material | ABS |
| Case Size | 210x90x30mm |
| Main unit Weight | 500g with batteries |
Applications
