| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | F322 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $135~$195/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Economic Ultrasonic Fuel Level Sensor Water Level Sensor | Detection Range: | 15cm - 200cm |
|---|---|---|---|
| Blind: | 15cm | Accuracy: | <3mm |
| Transducer Frequency: | 180Khz | Transducers Emitting Angle: | 14 Degrees |
| Operating Current: | Less Than 50mA | Output: | 4 - 20mA |
ultrasonic level transmitter is fully digital with on-site display and has perfect object level measurement and control, data transmission and human-computer communication functions. They are manufactured with engineering plastic ABS waterproof case and military quality multi-layer PCB board, designed with modular circuit. The main chip adopts dozens of related ASICs with import industrial grade single-chip microcomputer to make them with perfect features of digital temperature compensation and ultra-wide voltage input voltage regulation. Modules can also be added to implement other functions (such as Bluetooth, GPRS communication, etc.) according to customer needs. They have strong anti-interference ability and suport the upper and lower limit nodes and online output adjustment casually, analog quantity selection and switch quantity and RS485 output. They have the characteristics of high reliability, no pollution, stable performance and widely used in various fields related to material level and liquid level measurement and control.
Specification of Economic ultrasonic fuel level sensor water level sensor
| Range | 5m, 8m, 10m, 12m, 15m, 20m, 25m, 30m | ||
| Blind area | <0.4-1.5m (according to different range) | ||
| Beam angle | <12° | ||
| Accuracy | ±0.25%F.S | ||
| Output | Analog signal | Digital signal | Switch signal |
| 4~20mA, 0~20mA 4~20mA, Load>300Ω 0~5V, 0~10V |
RS485 that support Modbus | NPN (with PP pulse output option) Relay (AC:5A/250V DC:10A/24V) | |
| Power supply | DC12-30V or AC220V | ||
| Consumption | <1.5W | ||
| Display | 4 bits 8 segment LED display (LCD option available) | ||
| Min. resolution | 1mm | ||
| Frequency | 20 KHz~43.0KHz | ||
| Protection class | Default IP65 (other options customizable) | ||
| Explosion proof | ExiaII BT4Gb | ||
| Operation temperature | -10°C~60°C | ||
| Housing | ABS/ Nylon | ||
| Cable | User defined (with connectors) | ||
| Dimension |
Φ92mm x 198mm x M60 (5m-15m range) Φ92mm x 270mm x DN80 nonstandard flange (20m-30m range) |
||
| Installation | M60 x 2 or Φ61mm hole with gasket (5m-15m range) DN80 nonstandard flange (20m-30m range) |
||
| Electrical connection | M20 x 1.5 (two units) | ||

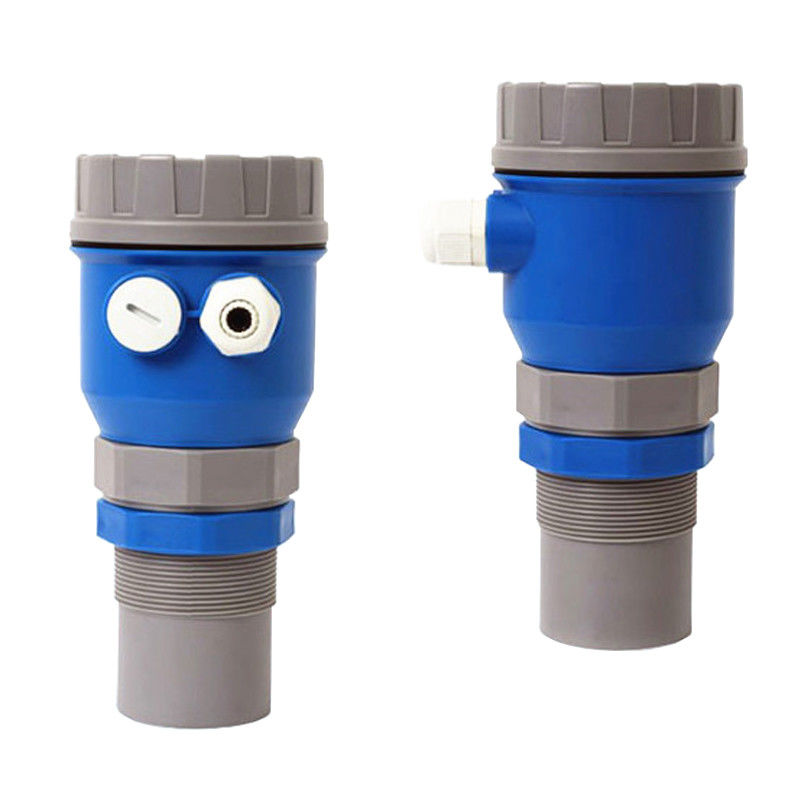

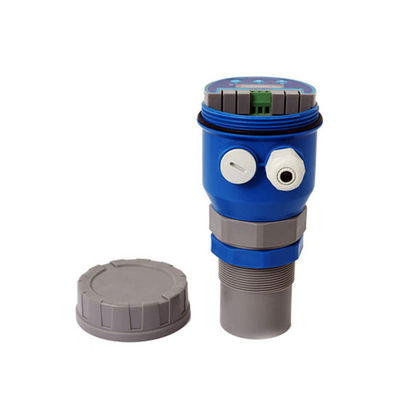

Detailed Images of ultrasonic fuel level sensor water level sensor:
Standard export carton packing.
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
