| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | RD809 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $345~$695/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Range: | 0~35Mpa | Accuracy: | <0.1% |
|---|---|---|---|
| Power Supply: | 24V DC | Output: | 4~20mA /Hart /RS485(Option) |
| Application: | Various Liquids, Solid | Process Temperature: | -40~250℃ |
| Process Pressure: | -1~40BAR | Process Interface: | Thread, Flange (option) |
| Warranty: | 12 Months | Product Name: | Radar Level Indicator Range Transmitter |
radar level indicator range transmitter
Description radar level indicator range transmitter
Radar level sensor emits a very narrow microwave pulse, the pulse to the speed of light in the space, encountered the surface of the measured medium, part of its energy is reflected back, the same antenna to receive. The time interval between the transmitting pulse and the receiving pulse is proportional to the distance from the antenna to the surface of the measured medium to calculate the distance from the antenna to the surface of the measured medium.

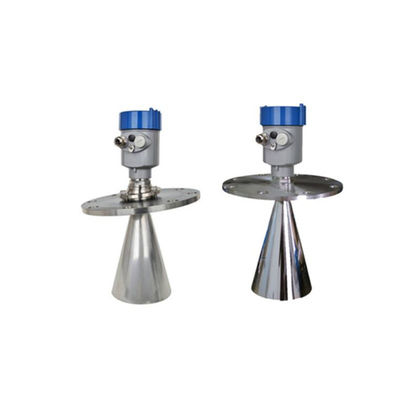

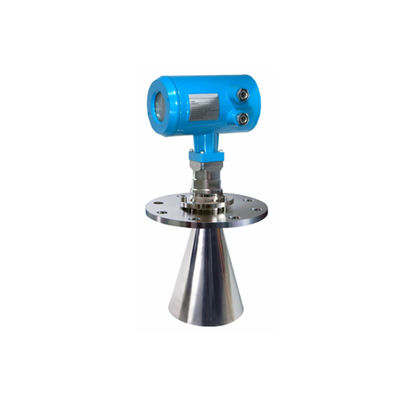

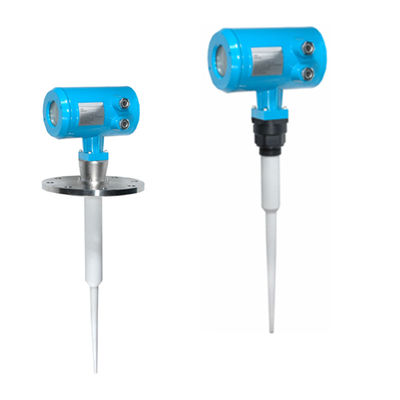

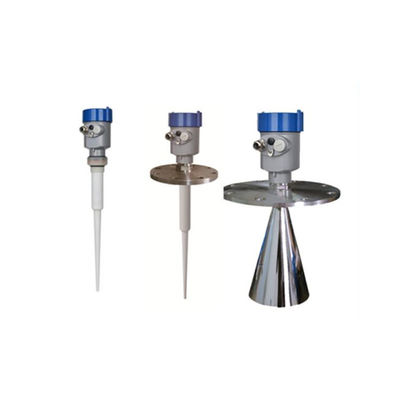

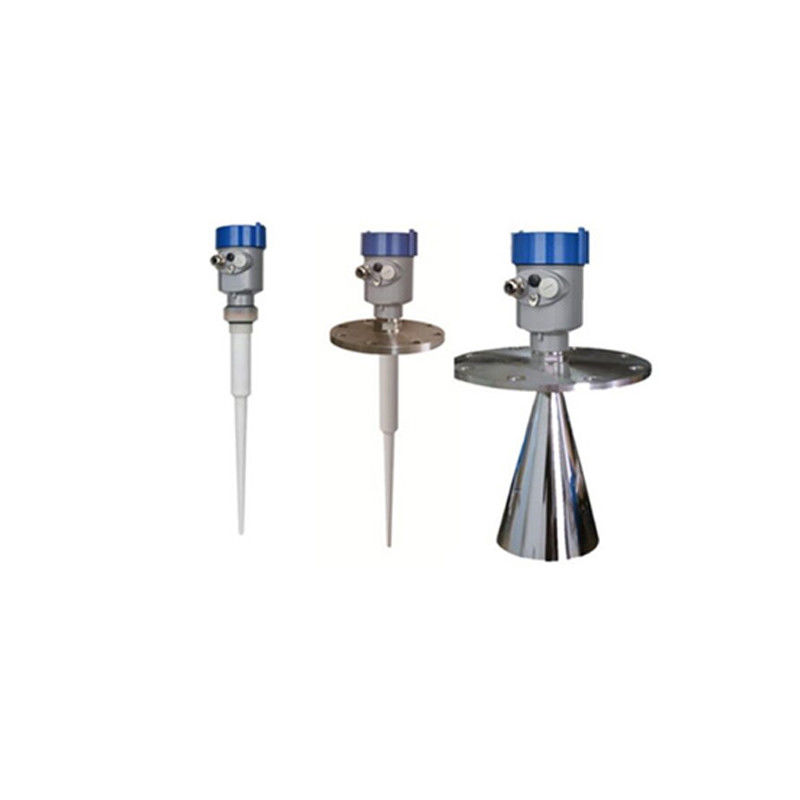

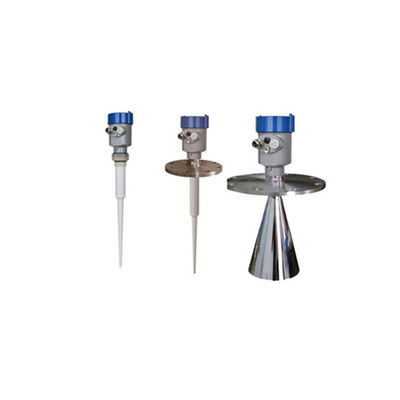

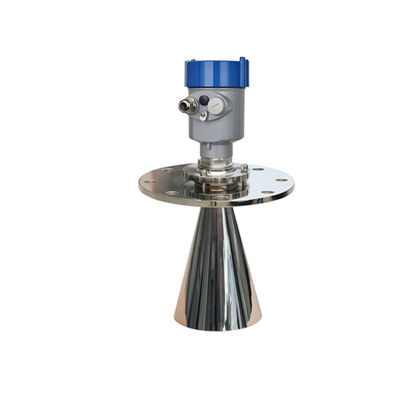

Detailed Images
Specification
| Specifications of Alibaba China smart level sensor 4-20mA | |||
| Model | RD801 | RD802 | RD803 |
| Measuring Range | 0~20 meters , 0~35 meters | ||
| Working Frequency | 6.8Ghz | ||
| Power supply | 24V DC(+/-10%) | ||
| Current signal | 4~20mA ,RS485 (optional) | ||
| Accuracy | <0.1% | ||
| Resolution | 1mm | ||
| Response time | 0.2S | ||
| Environment Temp. | "-40~250℃ | ||
| Pressure gauge | "-1~40bar | ||
| Interface | 2pcs M20*1.5 or 2pcs 1/2NPT (Cable OD 5~9MM) | ||
| Application | Power plants, oil fields, chemicals, metallurgy, cement, water treatment, paper making, and others | ||
| Beam angle | 24" | 24" | 14" 16" 20" |
| Antenna material | PP or PTFE | PTFE | SS |
| Process Connection |
Thread (G11/2A or 11/2NPT optional) |
Flange | Flange |
Drawings
Applications
* Power plant: coal pile, the original coal bunker, fuel tanks, reservoirs, waste gas purification tank, warehouse pumps, ash library, fuel tanks, etc.
* Oil field: crude oil or refined oil storage tank, three - phase separator, settling tank, sewage tank and oil - water interface, drilling mud tank;
* Chemical: crude oil distillation tower, raw materials and intermediate silos, reaction tanks, ammonia tanks, solid silos, separators, etc .;
* Metallurgical: ore silo, ore grinder, raw materials warehouse, auxiliary materials warehouse, blast furnace, alumina powder warehouse, electrolytic tank buffer tank;
* Cement: stone warehouse, raw silo, cement warehouse, coal warehouse, slag storage bin;
* Water treatment: reservoirs, sewage tanks, water treatment tanks, sedimentation tanks, deep wells, drinking water networks;
* Paper: raw materials warehouse, storage tower, drying drum, chemical materials storage warehouse, etc.
* Other: quarry, food, pharmaceutical, environmental protection, shipbuilding and other industries;
