| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | 322-F |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD150.00~$395/pc |
| Packaging Details: | Accuracy 0.1 water proof PH meter PH tester Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Range: | 2m,5m,8m,10m,12m,15m,20m,25m,30m (option) | Blind Area: | <0.25- 1.5m |
|---|---|---|---|
| Minimum Display Resolution: | 1mm | Frequency: | 20 KHz~2000KHz |
| Accuracy: | ±0.3%F.S | Display: | LED,LCD,OLED(option) |
| Digital Output: | RS485(support Modbus) | Switch Output: | 2 Lines NPN |

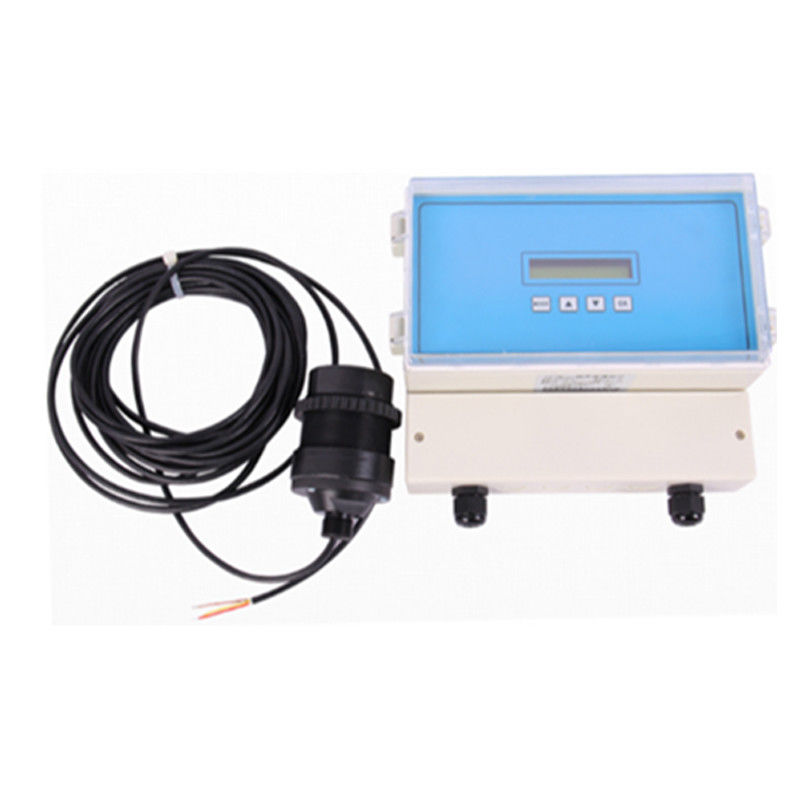

Separated-type Ultrasonic level meter controller water/liquid level controller chinese supplier
Description:
ultrasonic level meter is make from a variety of domestic and international level instrument advantages. To achieve a full digital, user-friendly design concept, I became the upgrading of high-end products. The shell is made of aluminum waterproof shell, using the international general electric interface. Standard terminal, convenient for construction and installation; transparent observation window, more convenient data observation. It has high reliability. Pollution-free.Stable performance. Do not have to contact the industrial media can meet most of the liquid level, material level measurement requirements. Completely solve the traditional measurement methods bring many disadvantages. The utility model can be widely used in various fields of material level and liquid level measurement and control. This product after the inspection approval authority of the state, the product conforms to the requirements of the national standard GB3836.12010 and GB3836.420010, explosion proof mark: ExiaIIBT4Gb.
Product Features
1,International electrical interface easy to take.
2,,The sensor is strong and stable for harsh industrial situations.
3,strong anti-interference
4,4~20MA current output, optional field bus interface
5,Can manually set blind area
Range:2m,5m,8m,10m,12m,15m,20m,25m,30m (option)
Blind area:<0.25- 1.5m
Minimum display resolution:1mm
Frequency :20 KHz~2000KHz
Accuracy:±0.3%F.S
Display:LED,LCD,OLED(option)
Analog signal output:0~20mA;4~20mA>300Ω;0~5V;0~10V
Digital output:RS485(support Modbus);
Switch output:2 lines NPN
Work power: DC12—24V or AC220V
Case Material:Aluminum
Sensor Material: ABSplastics,Nylon
Interface:M20X1.5(2 groups)
Protection grade:IP65 and EXiaII BT4Gb
Drawings
Established with 10 million capital in 2015, Xi'an Shelok Instrument Co., Ltd. is a professional designer and manufacturer that engaged in the fields of pressure measurement instruments. We specializing in developing high precision pressure transmitter, pressure gauges, pressure calibration pump and dead weight tester,level transmitter, flow meter etc., widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
Specialties
pressure transmitter/sensor/transducer, pressure gauge, pressure calibration hand pump, and water level sensor
