| Product Name: | (-60~0~200)kPa New Type Professional Factory Portable Handheld Micro Air Pressure Pump Calibrator | Mode No.: | NH-619 |
|---|---|---|---|
| Pressure Range: | -60 ~ 200kPa | Pressure Stability: | 0.02%F.S |
| Regulating Accuracy: | 0.01Pa | Connection: | 2×M20x1.5 |
| Medium: | Air | Dimension: | 235×193×143mm |
| Instrument Weight: | 1.5KGS | Warranty: | 18 Months |
(-60~0~200)kPa New Type Professional Factory Portable Handheld Micro Air Pressure Pump Calibrator
Product Description
The NH-619 handheld micro-pressure source features a transparent, open-design structure that is simple, lightweight, easy to operate and maintain, leak-resistant, provides smooth pressure adjustment, and offers high reliability. It serves as an ideal pressure source for calibrating various micro-differential pressure transmitters, pressure switches, micro-differential pressure gauges, and other pressure instruments and gauges within the (-60 ~ 200) kPa measurement range in field or laboratory settings.
The NH-619 handheld micro-pressure source is suitable for industries such as food hygiene, aerospace, military, metallurgy, and metrology.

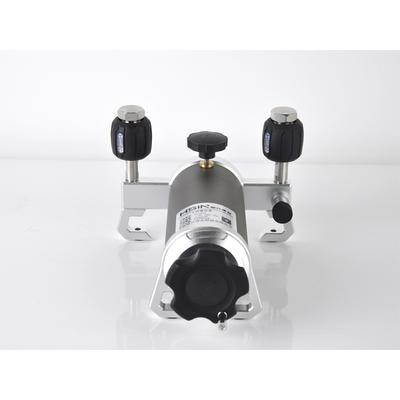

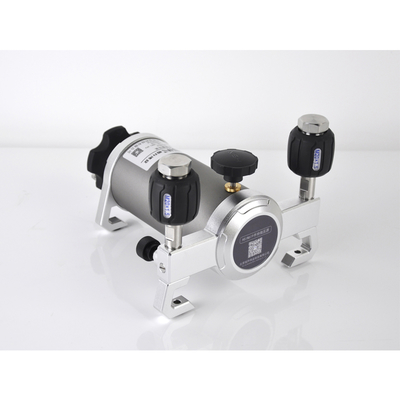

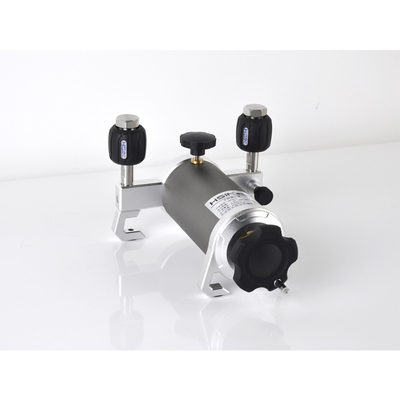

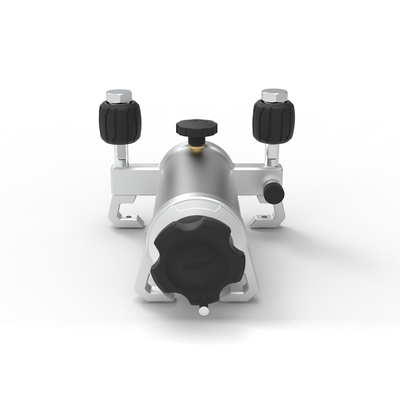

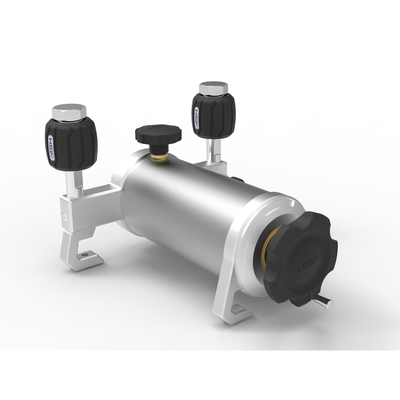

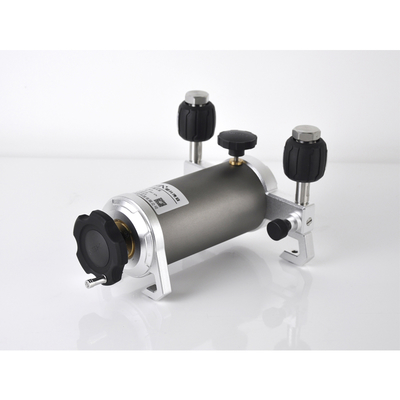

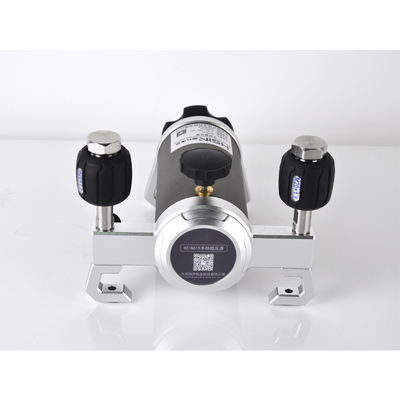

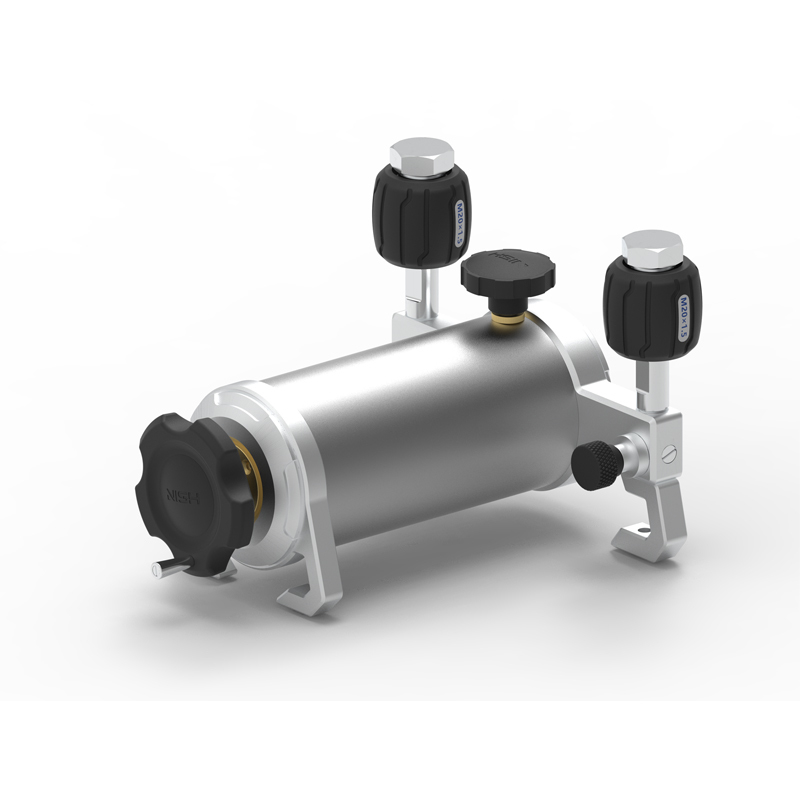

Detailed Images
Specification
| Handheld Operating Micro Pressure Calibrator Pump | |
| Model No | NH-619 |
| Pressure Range | (-60 ~ 0 ~ 200)Kpa |
| Regulating Accuracy | 0.01pa |
| Pressure Stability | 0.02%F.S |
| Medium | Air |
| Dimension | 235×190×143mm |
| Weight | 1.5KGS |
| Connection Size | 2pcs M20×1.5 Standard Port |
| Warranty | 18 Months |
Show Details
Features
The entire system is made of aluminium alloy and stainless steel, which is lightweight and easy to carry.
Transparent, open design, compact structure, and easy maintenance.
Ultra-fine adjustment, high control and adjustment accuracy.
Insulated, minimising the impact of external temperatures.
Application
Industrial and mining enterprises
Scientific research institutions
Colleges and universities
Military industry
Measurement and other departments
Mainly calibrate temperature components (thermocouples, platinum resistance, thermometers)
Temperature transmitters (sensors), temperature switches and temperature instruments.
