| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | ML223/ML323/ML523/ML623 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD506.5 ~ USD379.5/pcs |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 3 ~ 7 Working Day |
| Payment Terms: | L/C, T/T, Alipay, XT |
| Supply Ability: | 100pcs/week |
| Product Name: | Analytical Balances And Semi-Microbalances High Accuracy Versatile | Mode No.: | ML223/ML323/ML523/ML623 |
|---|---|---|---|
| Measuring Range: | 220 ~ 620g | Dividing Value (d): | 1mg |
| Repeatability (5% Load): | ±0.02mg | Operating Temperature: | 10℃~30℃ |
| Operating Humidity: | 20%RH~80%RH | Height Of Weighing Chamber: | 230mm |
| Warming And Fluctuating: | ≤1℃/Hour | DC Adapter: | 100V -240VAC Frequency 50/60HZ; Current: MAX 2.0A |

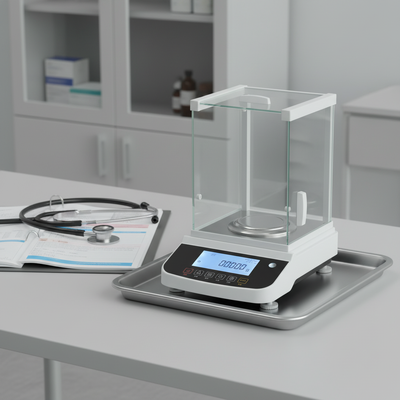

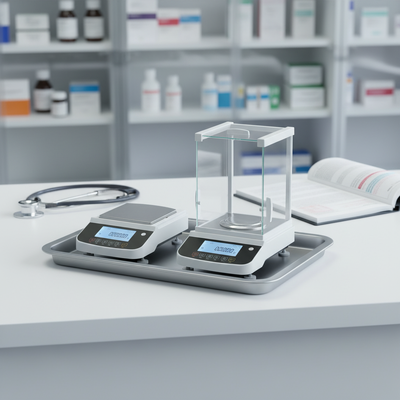

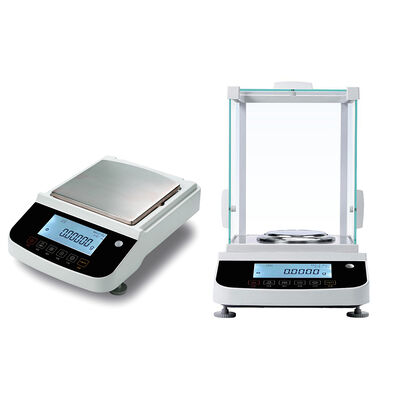

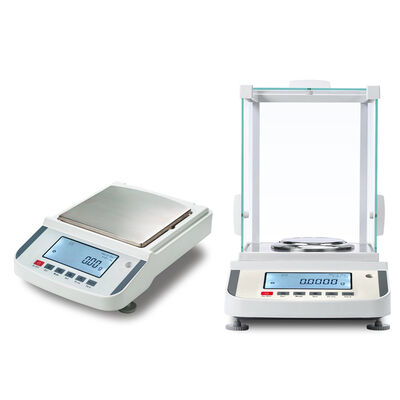

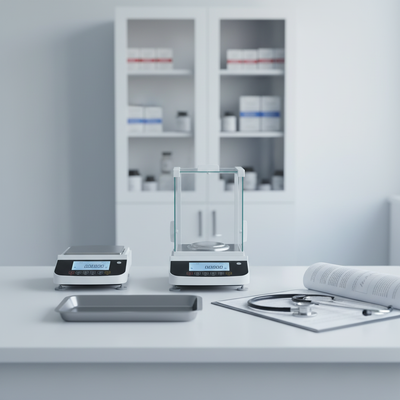

ML Series Lab Analytical Balance Dual Semi Analytical Balance Semi-Microbalance High Accuracy Versatile Electronic Balance 220g ~ 620g 1mg
Product Description
The ML series balances utilize a super-monolithic electromagnetic force sensor, which is machined as a single piece from a block of high-purity aluminum alloy on a high-precision machining center. This design eliminates the hundreds of components found in traditional sensors, resulting in a highly integrated structure and enhanced durability; the uniformity of the material makes the sensor less susceptible to temperature fluctuations, ensuring greater stability. Ultra-precise machining gives the sensor higher resolution and faster response times. Designed with new electronic modules and cutting-edge technology, the balance ensures exceptional weighing accuracy. While meeting customers’ budget requirements, it also provides an efficient and user-friendly weighing experience.

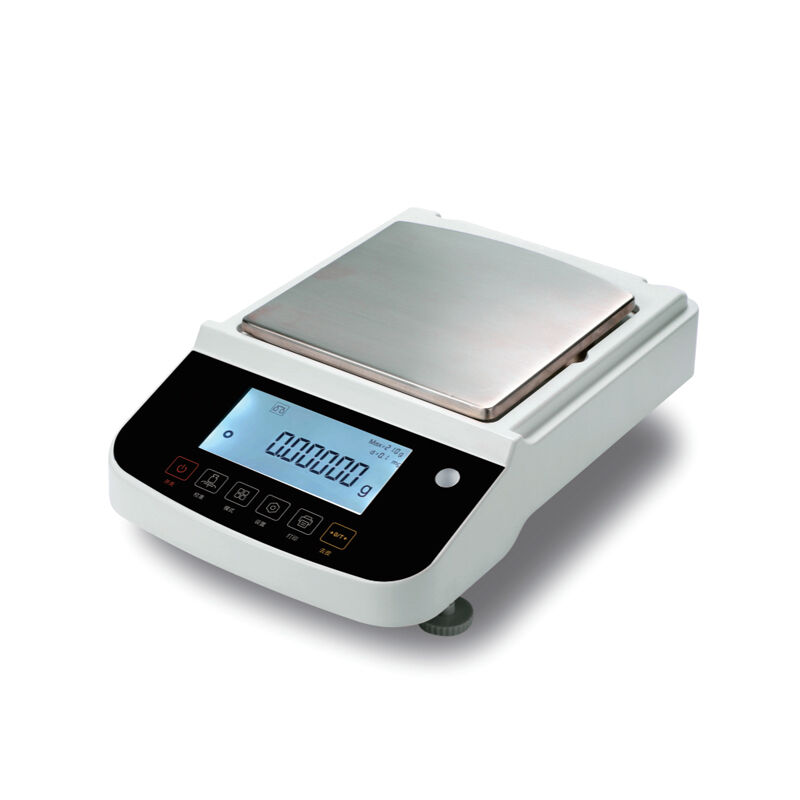

Detailed Images
Specification
|
ML Series Analytical Balances and Semi-Microbalances A high-performance, Versatile Electronic Balance |
||||
| Model No. | ML223 | ML323 | ML523 | ML623 |
| Measuring Range | 220g | 320g | 520g | 620g |
| Dividing Value(d) | 1mg | |||
| Repeatability (typical error)(5% load) | ±1mg | |||
| Repeatability (typical error)(near 100% load) | ±1mg | |||
| Linearity Error(typical error) | ±2mg | |||
| Operating Temperature | 15℃ ~ 30℃ | |||
| Operating Humidity | 20%RH ~ 80%RH | |||
| Sample plate size | Diameter 90mm | |||
| External Dimension | 475mm×375mm×350mm | |||
| Power-on warm-up time | 30 ~ 60minutes | |||
| Warming & Fluctuating | ≤1℃/Hour | |||
| Power Supply | Input: 220V/110V AC/50HZ; Output: 12V DC/2A | |||
| Response Time | ≤2.5s | |||
| Accuracy | Class I | |||
| Calibration | External | |||
Features
Multiple Unit Conversion
Seamlessly switch between units such as grams (g), carats (Ct), ounces (oz), and pounds (lb)
Multiple Weighing Modes
Basic weighing, percentage weighing, and counting modes
Fully Automatic Calibration System
When the temperature changes by 1.5℃ or more than 2 hours have passed since the last calibration, the balance automatically initiates the calibration function. This eliminates potential issues caused by missed scheduled calibrations or inaccurate external weights, ensuring more accurate and reliable weighing results for users while reducing unnecessary operations (internal calibration models only)
Optimized Product Functionality Design
The unit features a streamlined design with quick-access icon buttons for easy navigation, offering both an attractive appearance and user-friendly operation. It is leak-proof, anti-static, and corrosion-resistant, making it suitable for use in a variety of settings.

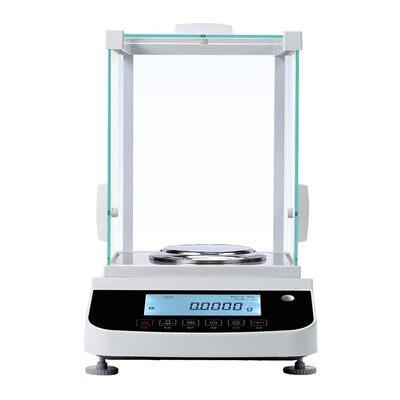

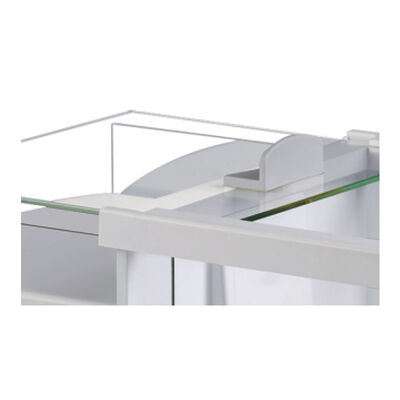

Transparent glass windshield
Allows for multi-angle viewing of samples during weighing and enables easy removal and cleaning for quick maintenance

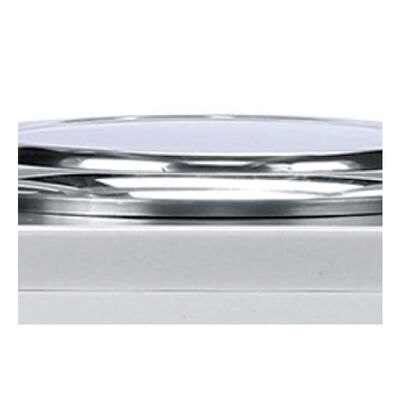

Stainless Steel Weighing Pan
Keeps items stable during weighing to ensure accurate results

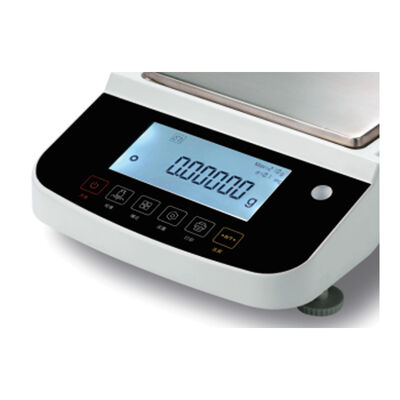

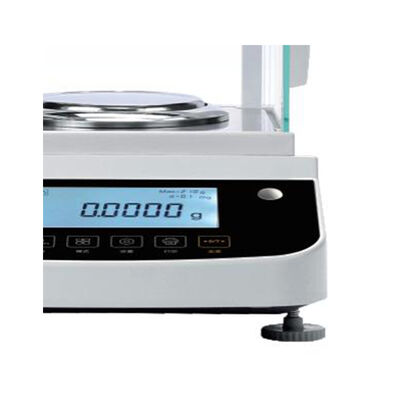

LCD Display
The screen is clear and bright, with a well-organized layout that makes it easy for users to read the weighing results.
Super Monolithic Electromagnetic Force Sensor
Machined from a single block of high-purity aluminum alloy using high-precision machining, this sensor reduces the number of components by 70%, increases response speed by 30%, and lowers the failure rate, resulting in more accurate and reliable weighing results.
Built-in RS232 bidirectional communication port
Enables connection between the balance and a computer or a microprinter. Weighing results can also be transmitted to a PC or other open-source applications.
Applications
Industrial and mining enterprises
Scientific research institutions
Colleges and universities
Technology industry Laboratory
Measurement and other departments
Mainly calibrate temperature components (thermocouples, platinum resistance, thermometers)
Temperature transmitters (sensors), temperature switches and temperature instruments.
