| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | ES-P5K/ES-P8K/ES-P10K |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD354.5 ~ USD392.5/pcs |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 3 ~ 7 Working Day |
| Payment Terms: | L/C, T/T, Alipay, XT |
| Supply Ability: | 100pcs/week |
| Product Name: | Paint Mixing Scale Accuracy Stability Portability Efficiency | Mode No.: | ES-P5K/ES-P8K/ES-P10K |
|---|---|---|---|
| Measuring Range: | 5000g ~ 10000g | Dividing Value (d): | 0.1mg |
| Repeatability (5% Load): | ±0.02mg | Operating Temperature: | 10℃~30℃ |
| Operating Humidity: | 20%RH~80%RH | Height Of Weighing Chamber: | 230mm |
| Warming And Fluctuating: | ≤1℃/Hour | DC Adapter: | 100V -240VAC Frequency 50/60HZ; Current: MAX 2.0A |
ES-P Series Paint Mixing Scale Accuracy Stability Portability Efficiency Balance a Classic Quality Factory Price 5000 ~ 10000g 0.1g
Product Description

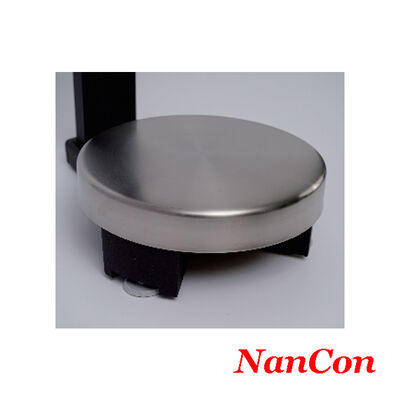

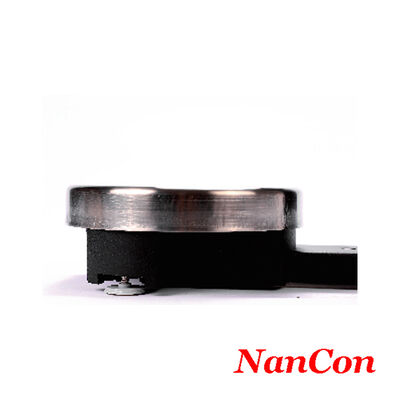

The NanCon ES-P Paint Mixing Scale is designed for fast and accurate paint mixing, and can also be used as a standalone bench scale. The stainless steel weighing pan features a rimmed design that protects the scale from contamination and effectively prevents paint and coatings from spilling over.

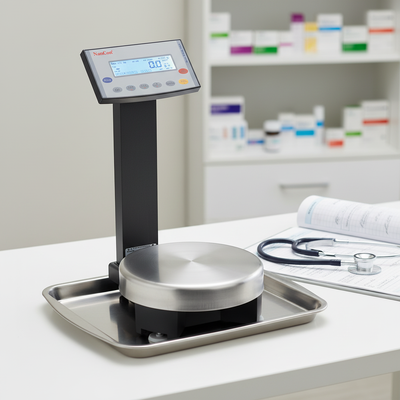

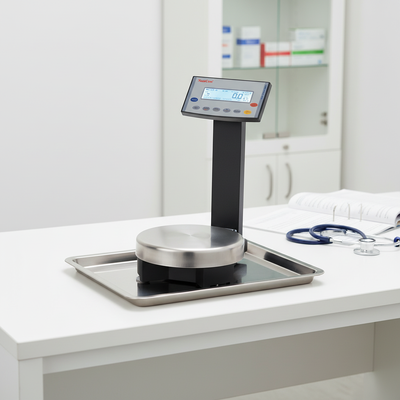

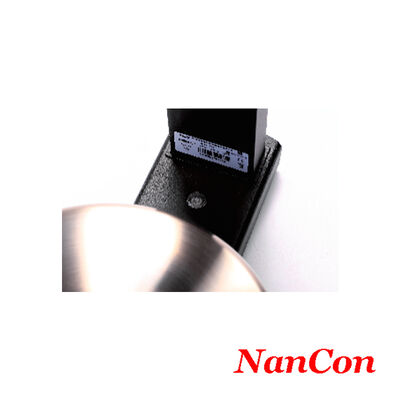

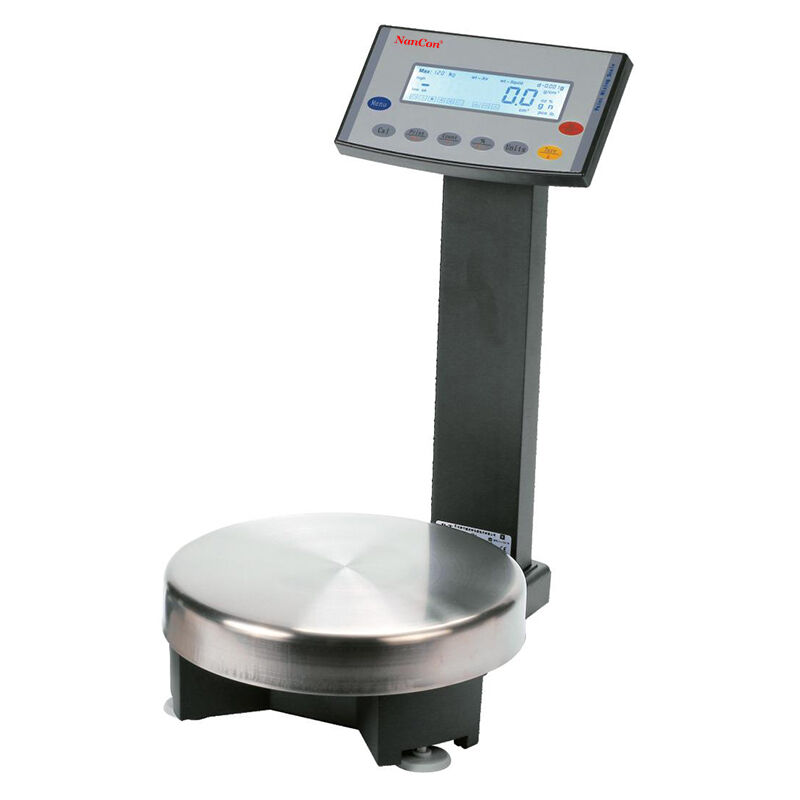

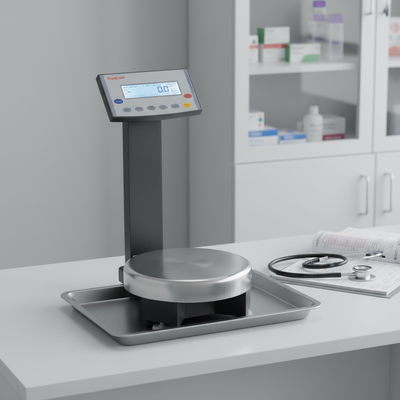

Detailed Images
Specification
|
ES-P Series Paint Mixing Scale Accuracy / Stability / Portability / Efficiency |
|||
| Model No. | ES-P5K | ES-P8K | ES-P10K |
| Measuring Range | 5kg | 8kg | 10kg |
| Dividing Value(d) | 0.1g | ||
| Repeatability (typical error)(5% load) | |||
| Repeatability (typical error)(near 100% load) | ±0.1g | ||
| Linearity Error(typical error) | ±0.1g | ||
| Operating Temperature | 15℃ ~ 30℃ | ||
| Operating Humidity | 10%RH ~ 70%RH | ||
| Sample plate size | Diameter 240mm | ||
| External Dimension | 230mm×360mm×410mm | ||
| Power-on warm-up time | 30 ~ 60minutes | ||
| Warming & Fluctuating | ≤1℃/Hour | ||
| Power Supply | Input: 220V/110V AC/50HZ; Output: 12V DC/2A | ||
| Response Time | ≤2.5s | ||
| Accuracy | Class II | ||
| Calibration | External | ||
Features
* Solvent-resistant housing construction for long-lasting durability
* Enclosed weighing pan design to minimize contamination of the scale
* Overload protection

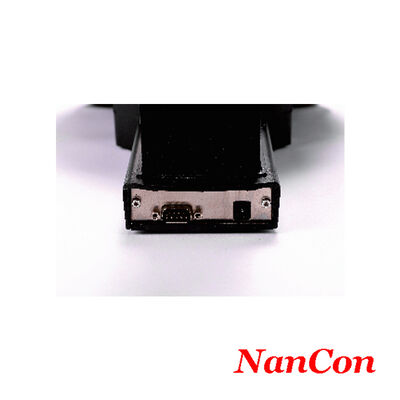

* Communication ports
* High-impedance, rugged, gold-plated ceramic variable capacitance sensors
* High-sensitivity temperature sensors
* High-precision humidity sensors
* Sequential batching system and coefficient-based batching system
Excellent sensitivity and accuracy ensure precise color formulation
Applications
Industrial and mining enterprises
Scientific research institutions
Colleges and universities
Technology industry Laboratory
Measurement and other departments
Mainly calibrate temperature components (thermocouples, platinum resistance, thermometers)
Temperature transmitters (sensors), temperature switches and temperature instruments.
