Double Stage Pure Gas Pressure Regulator
Description Double Stage Pure Gas Pressure Regulator
diaphragm water pressure reducing valve with gauge with single-stage diaphragm vacuum structure, stainless steel diaphragm pressure transmission, the output pressure is stable, suitable for pure gases, standard gases, corrosive gases, liquids and other medium.

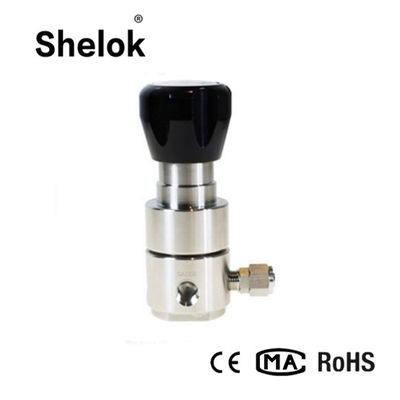

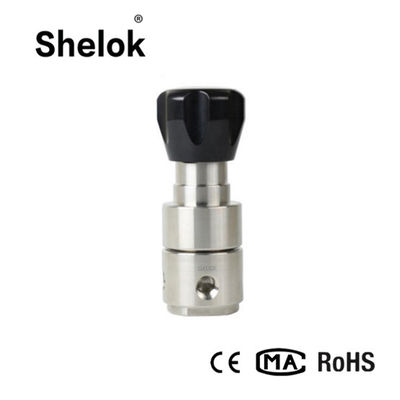

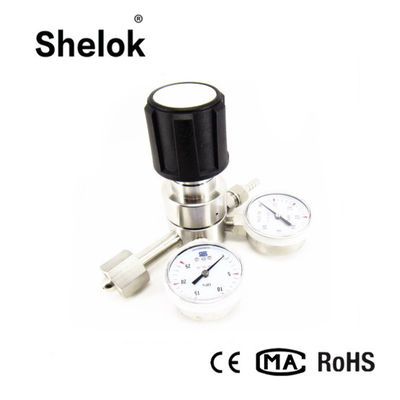

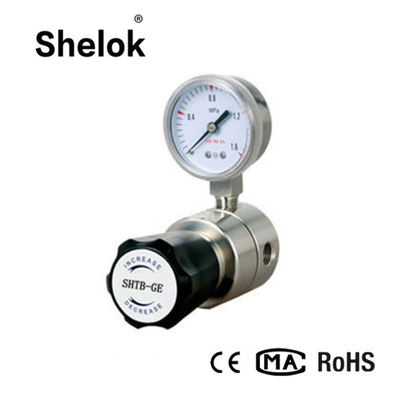

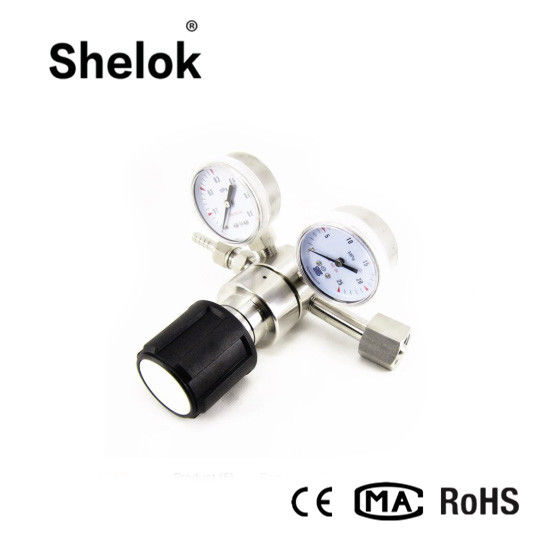

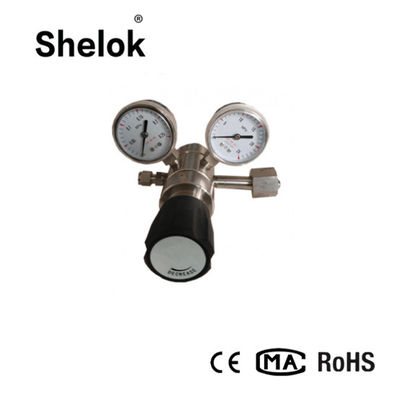

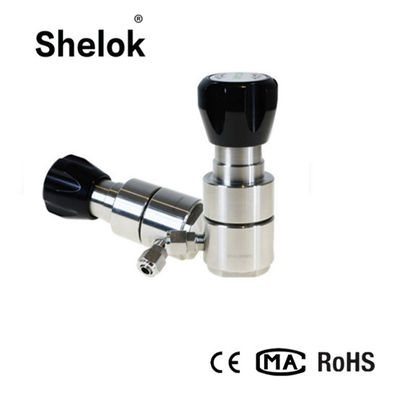

Detailed Images Double Stage Pure Gas Pressure Regulator
Specification Double Stage Pure Gas Pressure Regulator
| Product Name | Air Pressure Relief Valves, Back Pressure Regulator |
| Max pressure range | 500, 3000 psig, 6000Psi |
| Output pressure | 0-25, 0-50, 0-100, 0-150, 0-250 psig |
| Structure | Diraphragm |
| Design Proof Pressure | 150% of rated inlet |
| Parent interface Thread | NPT "1/4 (F) |
| Applicable temperature | 40℃~74℃(-40℉~165℉) |
| Internal leak rate | 2 x 10-8atm.cc/sec He |
| Flow Capacity | Cv=1.0 Cv=1.8 (Optional) |
| Body material | 316L |
| Seat material | PCTFE, Vespel |
| Piston | 316L |
| O-rings | Viton |
Applications Air Pressure Relief Valves, Back Pressure Regulator
• Component Testing
• Calibration Systems
• Laboratory Pressure Control
• High Pressure Sampling Systems
• Service & Test Equipment
Features Air Pressure Relief Valves, Back Pressure Regulator
1. Single stage type relief structure
2. Maternal and diaphragm use hard seal form
3. The internal structure easy to purge and with filter
4. Can use panel or wall mounting
