| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | SLK-YR33 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $168.00~$198.00 |
| Packaging Details: | natural gas oxygen pressure regulator prices Standard export package |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Max Inlet Pressure: | 3000psi, 6000psig | Outlet Pressure: | 0-250psig, 0-500psig, 0-1500psig, 0-3000psig |
|---|---|---|---|
| Safety Testing Pressure: | 1.5 Times Of Maximum Inlet Pressure | Working Temperature: | -23℃~ 74℃(-10°F ~ 165°F) |
| Leakage Rate: | 2*10-8 Atm Cc/sec He | CV Value: | 0.02, 0.06, 0.08, 0.2 |
| Weight: | About 1.5KGS |

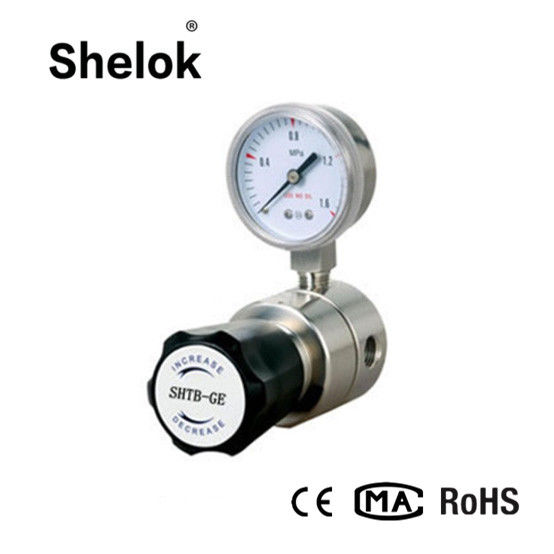

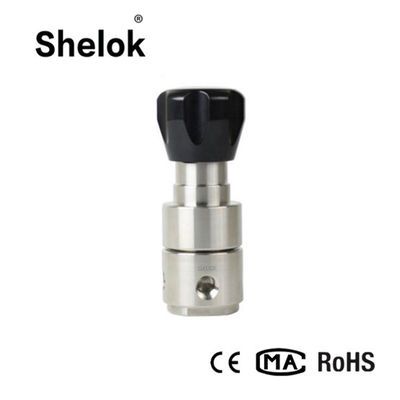

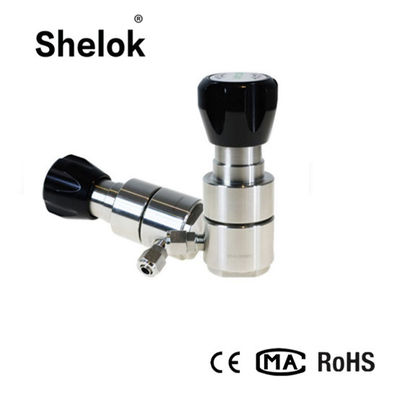

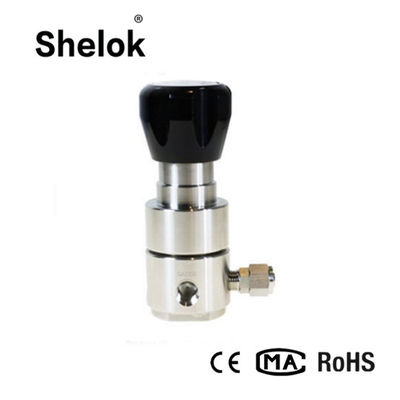

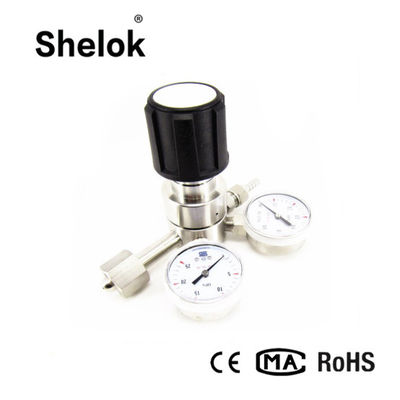

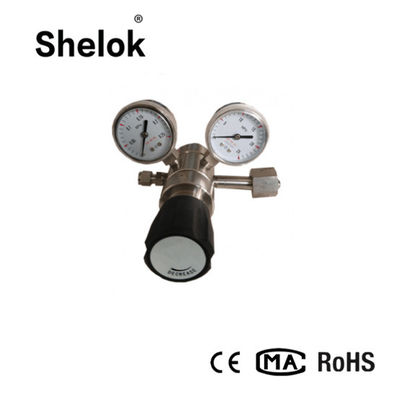

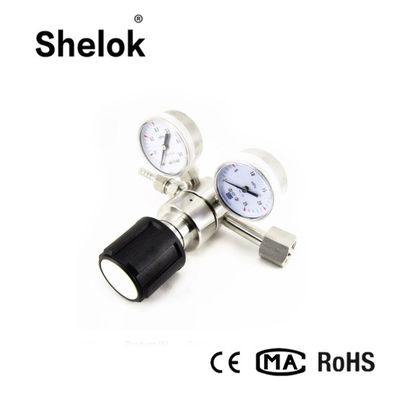

High quality natural gas / oxygen pressure regulator prices
Description of High quality natural gas / oxygen pressure regulator prices
SR31 Series stainless steel pressure regulator adopts piston type decompression structure, outlet pressure is stable, mainly used for high inlet pressure requirements, suitable forhigh purity gas, standard gas, corrosive gas, and other gas.
Application scope of High quality natural gas / oxygen pressure regulator prices
Laboratory, Gas chromatograph, Gas lasers, Gas bus, Petrochemical industry, Test Equipment
Design features of High quality natural gas / oxygen pressure regulator prices
· Double stage decompression structure
· Valve body and diaphragm adopt hard seal form
· The internal structure is easy to clean
· Inside is equipped with filter
· Can be panel mounted
· Can choose needle valve, diaphragm valve for outlet
Material of High quality natural gas / oxygen pressure regulator prices
· Valve body: 316L
· Top cover: 316L
· Diaphragm: 316L
· Filter: 316L (10μm)
· Valve seat: PCTFE , PTFE, Vespel
· Spring: 316L
Basic parameters of High quality natural gas / oxygen pressure regulator prices
Max inlet pressure: 3000psi, 6000psig
Outlet pressure: 0-250psig, 0-500psig, 0-1500psig, 0-3000psig.
Safety testing pressure: 1.5 times of maximum inlet pressure
Working temperature: -23℃~ 74℃(-10°F ~ 165°F)
Leakage rate: 2*10-8 atm cc/sec He
CV value: 0.02, 0.06, 0.08, 0.2
Weight: About 1.5kg
