| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | SLK-YR32 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $158.00~$198.00/pc |
| Packaging Details: | China manufacture pressure regulation valve for gas Standard export carton packing. |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | China Manufacture Pressure Regulation Valve For Gas | Measure Range: | 0.0 - 14.0 PH |
|---|---|---|---|
| Accuracy: | ±0.1 PH (20°C), ±0.2 PH | Application Temp.: | 0 - 50°C (32 - 122°F) |
| Lable: | Customized Available |

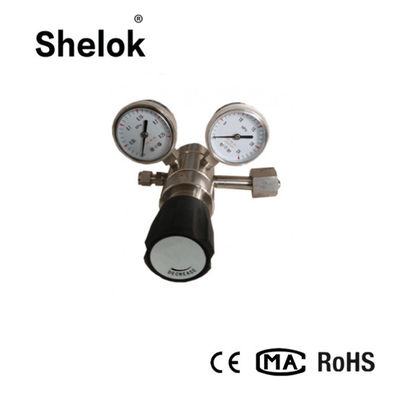

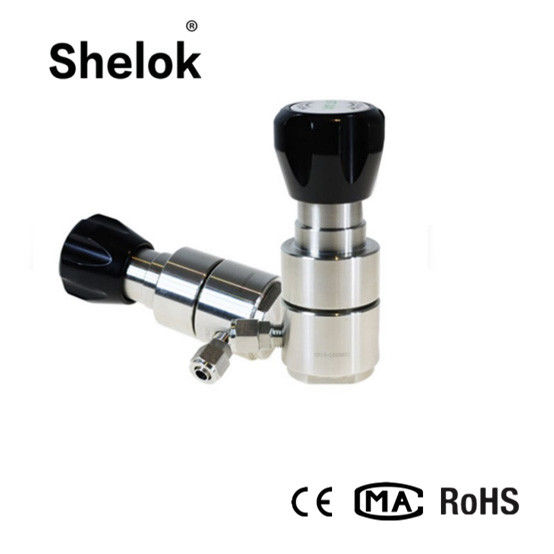

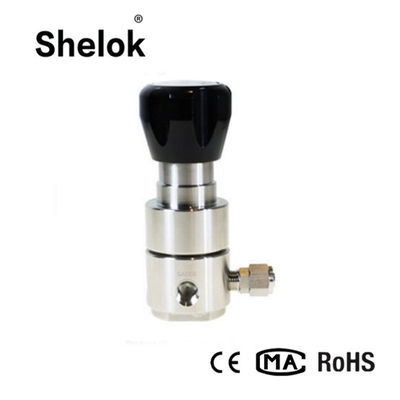

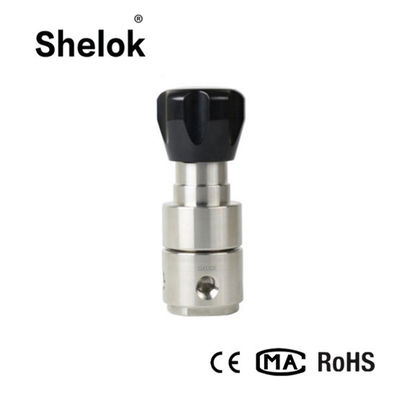

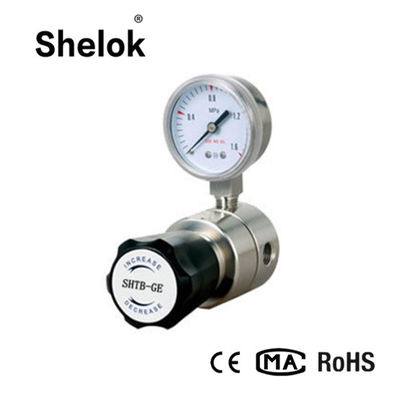

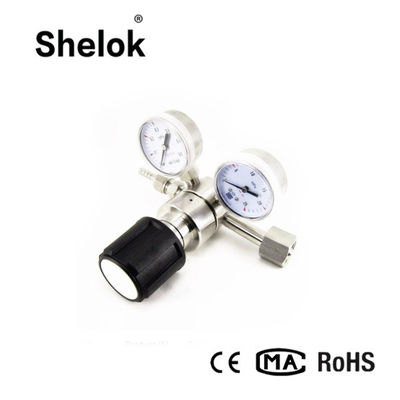

T1-FM-TY-A series Low pressure and high pressure gas regulator prices for diesel has double stage diaphragm pressure reducing structure, constant outlet pressure, suitable for purified gas, standard gas, corrosive gas etc.
Features of China manufacture pressure regulation valve for gas:
Body with six port design
Double stage pressure reducing structure
Metal to metal diaphragm seal
Body inlet and outlet port: 1/4”NPT Female
Easy to clean structure
Filter mesh inside
Panel mount or wall mount
Outlet with needle valve or diaphragm valve for option
|
Specification of China manufacture pressure regulation valve for gas
|
|||
|
Maximum input pressure
|
2200, 3000psi
|
Output pressure
|
0-25, 0-50, 0-100, 0-250, 0-500psi
|
|
Proof pressure
|
1.5 times of maximum rated pressure
|
Working temperature
|
-40 + 165 deg F (-40 +74 deg C)
|
|
Inboard leakage
|
2 x 10-8 atm cc/sec He, at 1500psi input pressure
|
Outboard leakage
|
2 x 10-8 atm cc/sec He, at 1000psi input pressure
|
|
Flow capacity
|
Cv = 0.06
|
|
|
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Xi'an Shelok Instrument Technology co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
