| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | YR32 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $116.00~$198.00 |
| Packaging Details: | Double Stage Pure Gas Pressure Regulator Standard export package |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
Double Stage Pure Gas Pressure Regulator
Description Double Stage Pure Gas Pressure Regulator
diaphragm water pressure reducing valve with gauge with single-stage diaphragm vacuum structure, stainless steel diaphragm pressure transmission, the output pressure is stable, suitable for pure gases, standard gases, corrosive gases, liquids and other medium.

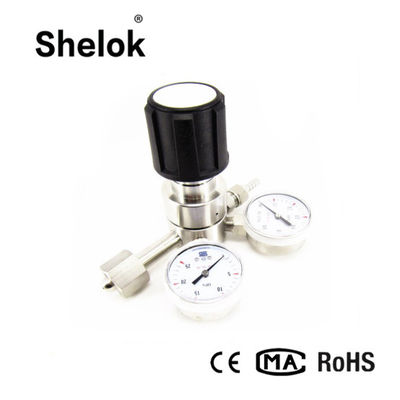

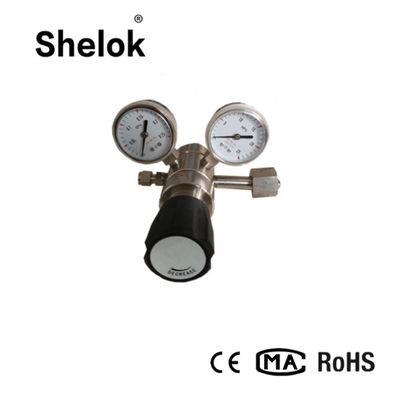

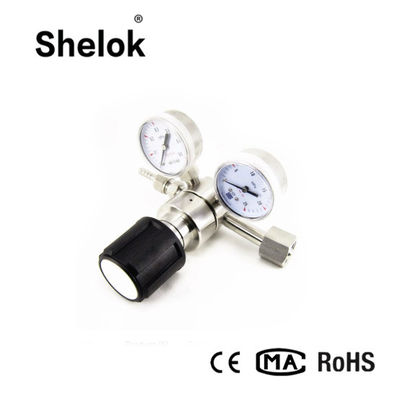

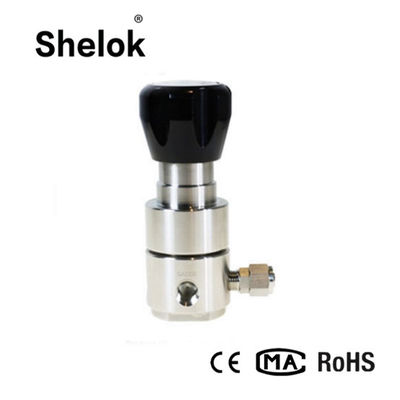

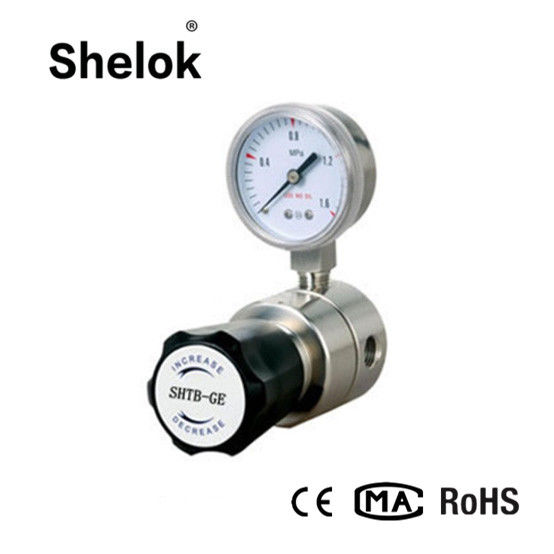

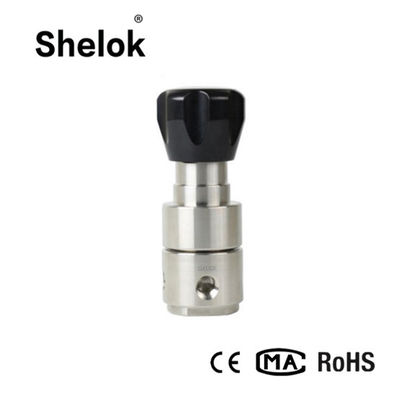

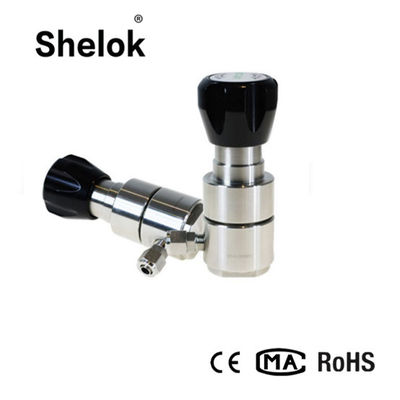

Detailed Images Double Stage Pure Gas Pressure Regulator
Specification Double Stage Pure Gas Pressure Regulator
| Product Name | Air Pressure Relief Valves, Back Pressure Regulator |
| Max pressure range | 500, 3000 psig, 6000Psi |
| Output pressure | 0-25, 0-50, 0-100, 0-150, 0-250 psig |
| Structure | Diraphragm |
| Design Proof Pressure | 150% of rated inlet |
| Parent interface Thread | NPT "1/4 (F) |
| Applicable temperature | 40℃~74℃(-40℉~165℉) |
| Internal leak rate | 2 x 10-8atm.cc/sec He |
| Flow Capacity | Cv=1.0 Cv=1.8 (Optional) |
| Body material | 316L |
| Seat material | PCTFE, Vespel |
| Piston | 316L |
| O-rings | Viton |
Applications Air Pressure Relief Valves, Back Pressure Regulator
• Component Testing
• Calibration Systems
• Laboratory Pressure Control
• High Pressure Sampling Systems
• Service & Test Equipment
Features Air Pressure Relief Valves, Back Pressure Regulator
1. Single stage type relief structure
2. Maternal and diaphragm use hard seal form
3. The internal structure easy to purge and with filter
4. Can use panel or wall mounting
Related products
FAQ Double Stage Pure Gas Pressure Regulator
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
Company Information
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Xi'an Shelok Instrument Technology co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
