High quality natural gas / oxygen pressure regulator prices

Description

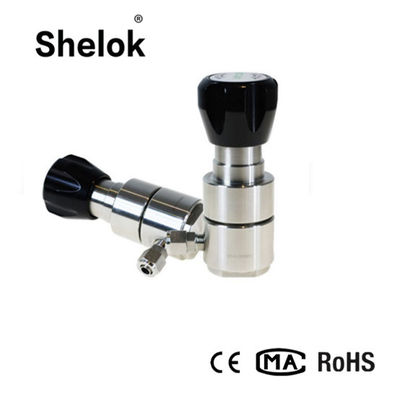

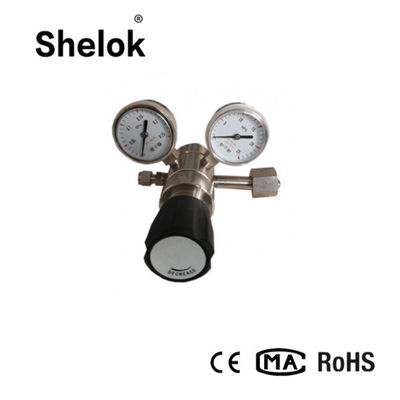

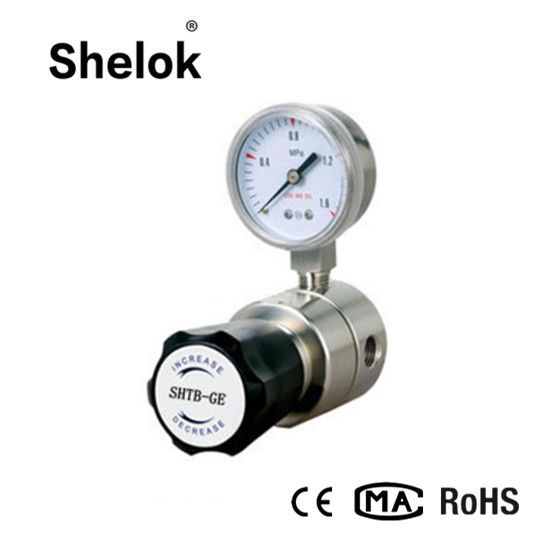

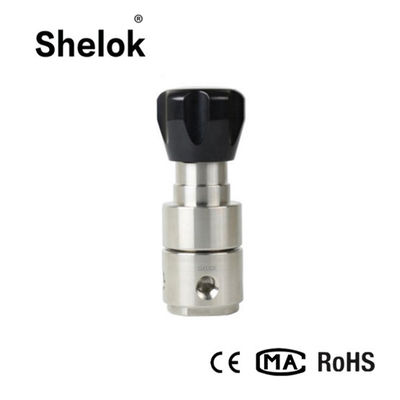

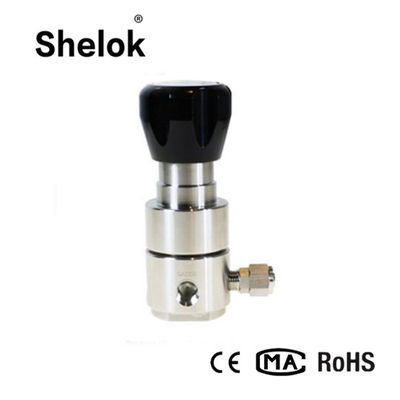

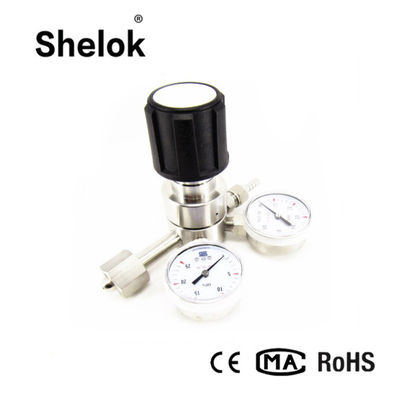

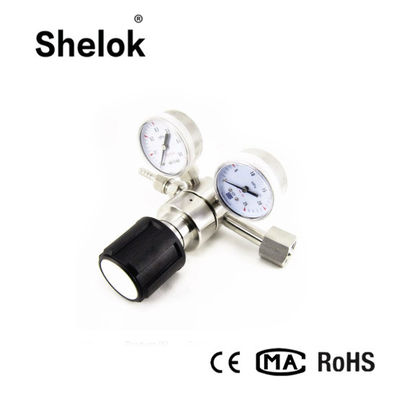

SR31 Series stainless steel pressure regulator adopts piston type decompression structure, outlet pressure is stable, mainly used for high inlet pressure requirements, suitable forhigh purity gas, standard gas, corrosive gas, and other gas.

Application

Laboratory, Gas chromatograph, Gas lasers, Gas bus, Petrochemical industry, Test Equipment

Features

· Double stage decompression structure

· Valve body and diaphragm adopt hard seal form

· The internal structure is easy to clean

· Inside is equipped with filter

· Can be panel mounted

· Can choose needle valve, diaphragm valve for outlet

Material

· Valve body: 316L

· Top cover: 316L

· Diaphragm: 316L

· Filter: 316L (10μm)

· Valve seat: PCTFE , PTFE, Vespel

· Spring: 316L

Basic Parameters

Max inlet pressure: 3000psi, 6000psig

Outlet pressure: 0-250psig, 0-500psig, 0-1500psig, 0-3000psig.

Safety testing pressure: 1.5 times of maximum inlet pressure

Working temperature: -23℃~ 74℃(-10°F ~ 165°F)

Leakage rate: 2*10-8 atm cc/sec He

CV value: 0.02, 0.06, 0.08, 0.2

Weight: About 1.5kg

FAQ Detailed Images

FAQ

Q:How long will you reply me?

A:We will contact you as soon as possible but within 12 hours

Q: Can I get some samples?

A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.

Q: How soon can you arrange your production?

A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.

Q: What's delivery time?

A: It usually takes about 3-5 working days for small order and 10-15 days for big order.

Q:How do you control your quality ?

A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).

Q: What certificates do you have ?

A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.

Q:Could I visit your factory?

A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.

Q: What's your warranty terms?

A: We offer 12 months warranty time.

Q:can you provide OEM & Customized service?

A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.

Company Information

NanCon considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.

Zhejiang NanCon is a professional R&D center and manufacture of measuring instruments. And here's a variety of products for you choice: Dry Block Temperature Calibrator, Pressure Calibrator, Dead Weight Tester, Pressure Transmitters, Flow Meter, Digital Pressure Gauge, Pressure Regulator, Level Transmitter, Temperature Transmitters, Fork Density Meter, Load Cell, Electronic Balance, Gas Detector, Petroleum Instrumentation, weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
