| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | KY Series |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $1350.00~$4500.00/pc |
| Packaging Details: | Water Pressure Balance Load Cell Test Equipment Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | 0.005%RD Dead Weight Tester Pressure Gauge Calibrator | Usage: | Pressure Testing Instrument |
|---|---|---|---|
| Measuring Range: | 5~600bar | Power: | Electronic |
| Accuracy: | 0.02%,0.015% | Resolution: | 0.1bar |
| Sectional Area: | 0.05, 0.1cm2 | Warranty: | 12 Months |
| Load Quantities: | 2~11 | Pipe Pressure: | 135.1bar |
Description

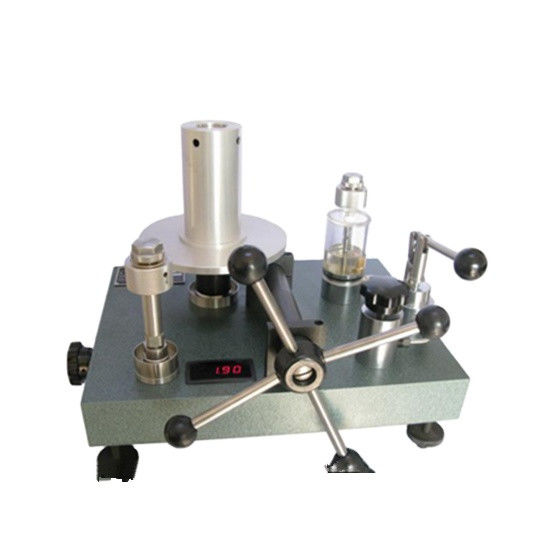

Mainly used to calibrate other dead weight tester, the configuration of the piston main piston displacement system and digital pressure indication and temperature indication system provide convenient for calibration .It has the pressure port to test pressure gauges and pressure transmitters also.
Features
Detailed Images
Specification
| KY2.5 |
-0.1-0.25Mpa -0.1-0.4Mpa -0.1-0.6Mpa |
| KY0.6 | 0.04-0.6Mpa |
| KY6 | 0.1-6Mpa |
| KY25 | 0.5-25Mpa |
| KY60 | 1-60Mpa |
| KY100 | 2-100 Mpa |
| KY250 | 5-250Mpa |
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
