| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | YS Series |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $865~$945/pc |
| Packaging Details: | Water Pressure Balance Load Cell Test Equipment Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Low Cost Dead Weight Tester Pressure Calibrator | Power Type: | Hydraulic |
|---|---|---|---|
| Measuring Range: | 0-70mpa | Accuracy: | 0.05% Or 0.02%FS |
| Pressure Connection: | M20*1.5 |
Low cost dead weight tester pressure calibrator
Description dead weight tester pressure calibrator
Low cost dead weight tester pressure calibrator is a calibration standard which uses a piston cylinder on which
a load is placed to make an equilibrium with an applied pressure underneath the piston.Deadweight testers are
so called primary standards which means that the pressure measured by a deadweighttester is defined through other quantities; Length, mass and time.Typically deadweight testers are used in calibration laboratories to
calibrate pressure transfer standards like electronic pressure measuring devices.

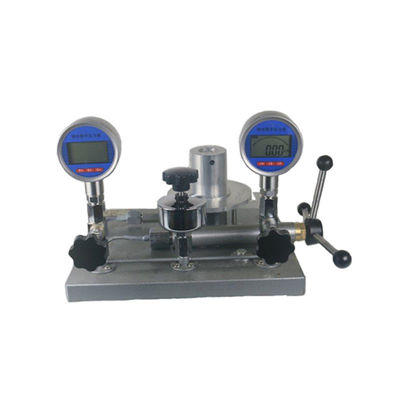

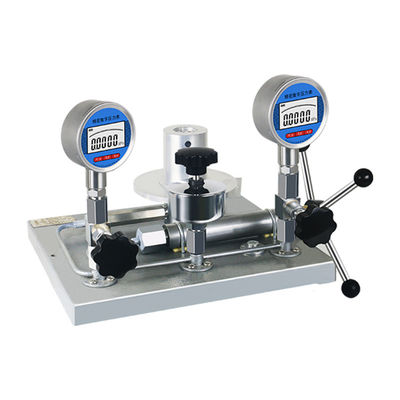

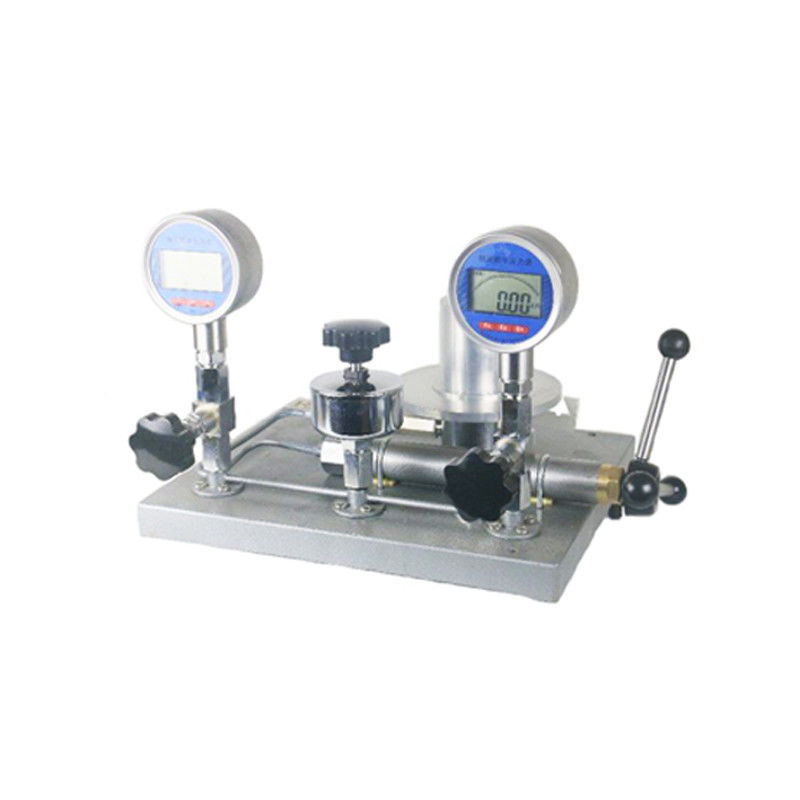

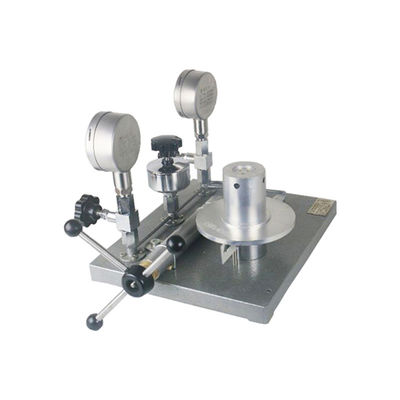

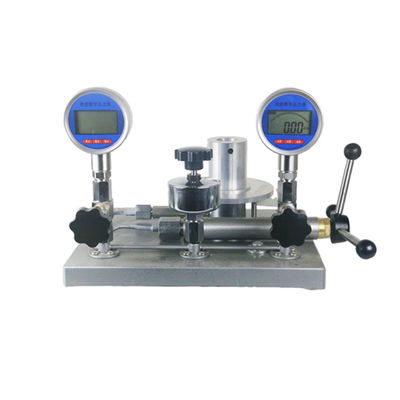

Detailed Images dead weight tester
Specification
| Model | YS-6 | YS-60 | YS-250 | YS-600 | |||||
| Measure Range | bar | 0.04-0.6 | 0.1-6 | 0.5-25 | 1-60 | ||||
| Accuracy | % | 0.02 or 0.05 | |||||||
| Nominal Area of Piston | cm2 | 1 | 0.5 | 0.2 | 0.1 | ||||
| Carrier and Piston | Nominal Mass | kg | 0.4 | 0.5 | 1 | 1 | |||
| Produced Pressure | bar | 0.4 | 1 | 5 | 10 | ||||
| Supplied Weights | Nominal Mass | kg | 0.10.5 | 0.52.5 | 15 | 15 | |||
| Produced Pressure | bar | 0.10.5 | 15 | 525 | 1050 | ||||
| Quantity Block | pcs | 610 | 411 | 49 | 411 | ||||
| Pressure Connection | M 20×1.5 | ||||||||
| Working Medium | Transformer Oil (viscosity 9~12 centistokes at 20i), or Medical Castor Oil (aciditymg KOH/g) |
||||||||
| Dimensions | mm | 630×382×593 | |||||||
| Weight | kg | 20+5.6 | 26+29.5 | 26+49 | 26+59 | ||||
Features
YS-6 Deadweight Tester. Pressure Range 5.8 - 87psi. Accuracy: 0.015% or 0.020% of reading.
YS-60 Deadweight Tester. Pressure Range 14.5 - 870 psi. Accuracy: 0.015% or 0.020% of reading.
YS600 Deadweight Tester. Pressure Range 145 - 8700 psi. Accuracy: 0.015% or 0.020% of reading
