| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | KY Series |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $1350~$7950/pc |
| Packaging Details: | Water Pressure Balance Load Cell Test Equipment Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Piston Dead Weight Tester /pressure Gauge Tester | Pressure Range: | 0.04~100MPa |
|---|---|---|---|
| Accuracy: | ±0.05 | Working Temperature(°C): | 15~30 |
| Temperature Coefficient ( /°C): | 1.7*10-5 | Rated Air Pressure (MPa): | 0.5,0.9 Or 0.6 |
| Dimension(mm): | 380*240*260 |

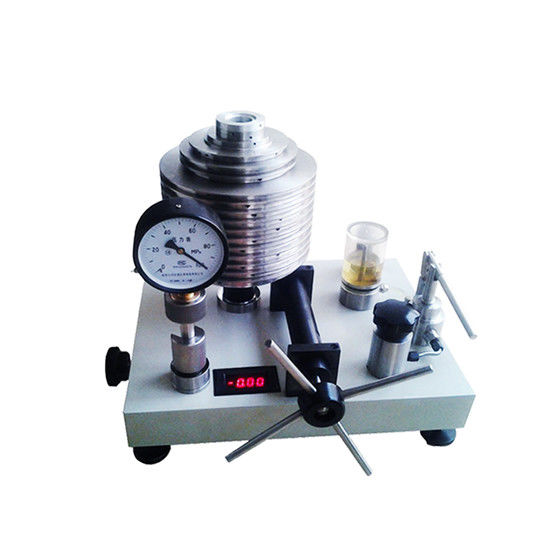

Piston Dead Weight Tester / Pressure Gauge
Detailed Images
Description
KY series DWT is a high precision and reliable standard pressure calibrator which is basic on Pascal law and a statics balance principle. It is usually called piston gauge or manometer, sometimes pressure balance instrument, major used in the lab and measure workshop, or as a pressure calibrator. Sometimes, we use it on some other gauges to calibrate the data.
Features
Parameters
1. Measurement range and accuracy
At ambient temperature(20±2)℃, the temperature fluctuation is not more than 0.5℃ reference Table 1.
| Model | Measure Range (MPa) | Accuracy |
| KY-0.6 | 0.04~0.6 |
±0.05%
±0.02% |
| KY-6 | 0.1~6 | |
| KY-25 | 0.5~25 | |
| KY-60 | 1~60 | |
| KY-100 | 2~100 |
| Parameter | Unite | Pressure Range | ||||
| 0.6MPa | 6MPa | 25MPa | 60MPa | |||
| Upper limit | MPa | 0.6 | 6 | 25 | 60 | |
| Lower limit | MPa | 0.04 | 0.1 | 0.5 | 1 | |
| Nominal piston area | cm2 | 1 | 0.5 | 0.2 | 0.1 | |
| Base and Piston | Nominal mass | Kg | 0.4 | 0.5 | 1 | 1 |
| Generated pressure | MPa | 0.04 | 0.1 | 0.5 | 1 | |
| Special Weights | Nominal mass | Kg | 0.1;0.5 | 0.5;2.5 | 1;5 | 1;5 |
| Generated pressure | MPa | 0.01;0.05 | 0.1;0.5 | 0.5;2.5 | 1;5 | |
| Qty | pcs | 6 ;10 | 4;11 | 4;9 | 4;11 | |
| Thread Size | M20×1.5 | M20×1.5 | M20×1.5 | M20×1.5 | ||
| Weight | Kg | 35 | 65 | 85 | 95 | |
| Type | YS Piston | KY Piston | DK Piston | Difference |
| Piston System Material | Alloy Steel (Hardness 28) |
(hardness102) |
(hardness102) |
Alloy steel easy wear, high deformation coefficient, high pressure errors increase Tungsten carbidemore harder, less temperature coefficient, wear resistance, but brittle |
| Weighing plate style | Bearing plate | Basket | Bearing plate |
Basket for lower center of gravity, add weights need both hands to operate, low efficiency. Bearing plate only need one hand to put the weights, can calibrate faster. |
|
Piston Anti-breaking device |
With guide rod anti-break | Without guide rod easy break | With guide rod anti-break | Anti-breaking device will sacrifice fall delay of the piston and other parameters, but will protect the piston rod , more practical. |
| Pre-pressurizing device | without | with | Option (electric pre-pressurized) |
Pre-pressurization is mainly used when the customer needs to connect more oil-filled pipes and equipment achieve oil filled function. Common check does not require pre-pressurized. |
| Displacement indications | Scale displacement indications | Single digital indication |
Scale indication (lighting instructions optional) |
Physical scale indication may be out of power constraints, digital indication more intuitive , both have their advantages, JQ type can have two kinds of instructions for simultaneous, can also be used when power off. |
| Pressurization System | Traditional screw pressing pressure |
Self-lubricating pressurized cylinder No need replacing seals |
Small-diameter pressurized screw, need replace the seals, but longer life |
Traditional screw pressurized , especially hyperbaric pressure too tired. Self-lubricating pressure more easy. Small-diameter pressurized cylinder in the middle position |
| Base | Cast iron base | Cast aluminum base | Cast iron base |
Cast iron base,low cost,high hardness |
