| Place of Origin: | Made In China |
| Brand Name: | NanCon |
| Certification: | CE |
| Model Number: | JQ Series |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $895~$975/pc |
| Packaging Details: | Water Pressure Balance Load Cell Test Equipment Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |

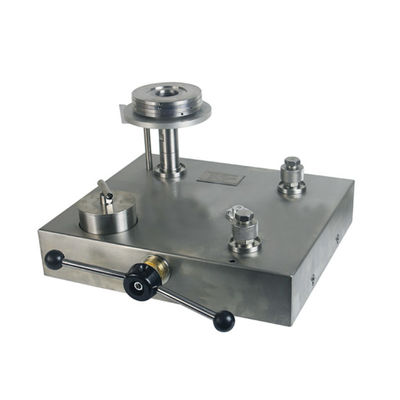

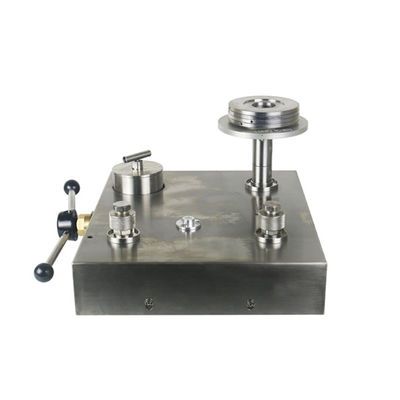

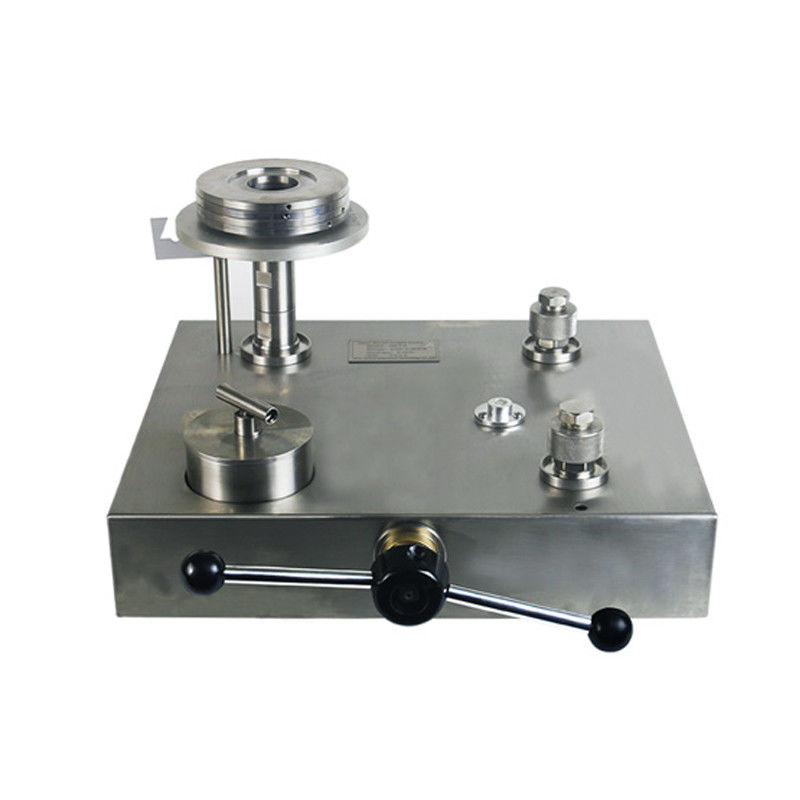

| Product Name: | Hydraulic Piston Dead Weight Tester | Power Type: | Hydraulic |
|---|---|---|---|
| Usage: | Universal Testing Machine | Pressure Type: | Hydrostatic |
| Warranty: | 12 Months | Type: | Measuring Instruments |
| Accuracy: | 0.05%F.S | Application: | Hydraulic Industries |
| Case: | Stainless Steel Casing | Color: | Blue |
JQ series Piston DWT is a high accuracy high reproducibility and high reliability of the standard pressure measuring instruments based on Pascal's law and the principle of hydrostatic equilibrium produced. Mainly used for measuring room, laboratory and production as part of scientific experiments, or use a reference pressure.
Features of Hydraulic piston dead weight tester
1. Compliance with JJG59-2007 "Dead Weight Tester", JJG99-2006 "Weights" national verification procedures.
2. The piston and cylinder consist of high strength, low alloy steel, high hardness and temperature coefficient of linear expansion, tungsten carbide and other materials, thermal expansion coefficient, little deformation, thus ensuring periodic rate of change of the effective area of the piston is small so as to ensure dead weight tester has high sensitivity.
3. The piston and cylinder grinding by Seiko, the roundness error and the gap is extremely small, the working medium using low viscosity sebacic acid ester, which greatly improves the duration of piston rotation, there is a corresponding decrease in the rate of decline of the piston, to improve pistons discrimination.
4. For the need for verification work, the effective area of the piston is relatively small, so the total mass of weight relatively light , saving labor intensity.
5. Use pallets loaded directly, avoid the additional vertical force, reducing the weight center of gravity, reducing the weight side corresponding additional error. Rotation of the piston is more stable.
6. The working piston use displacement sensor monitoring, sensitive, smart, accurate. Weight has been corrected pressure deformation coefficient and the local acceleration of gravity.
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Xi'an Shelok Instrument Technology co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
