| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | LZ Series |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $420.00~$750.00 |
| Packaging Details: | RS485 Output Mass Digital Air, Gas Flow Sensor Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Gas Application Of Rotameter | Range Ratio: | 10: 1 |
|---|---|---|---|
| Connection: | Flange | Standard Accuracy: | 1.5%,2.5% |
| Relative Humidity: | ≤85% | Cable Interface: | M20 Multiple By 1.5 |
| Flow Range: | 2.5L/h ~200m3/h | High Accuracy: | 1.0%,1.5% |
| Protection Class: | IP65, IP67 | Explosion-proof: | ExiallCT6;Exd LlCT6 |

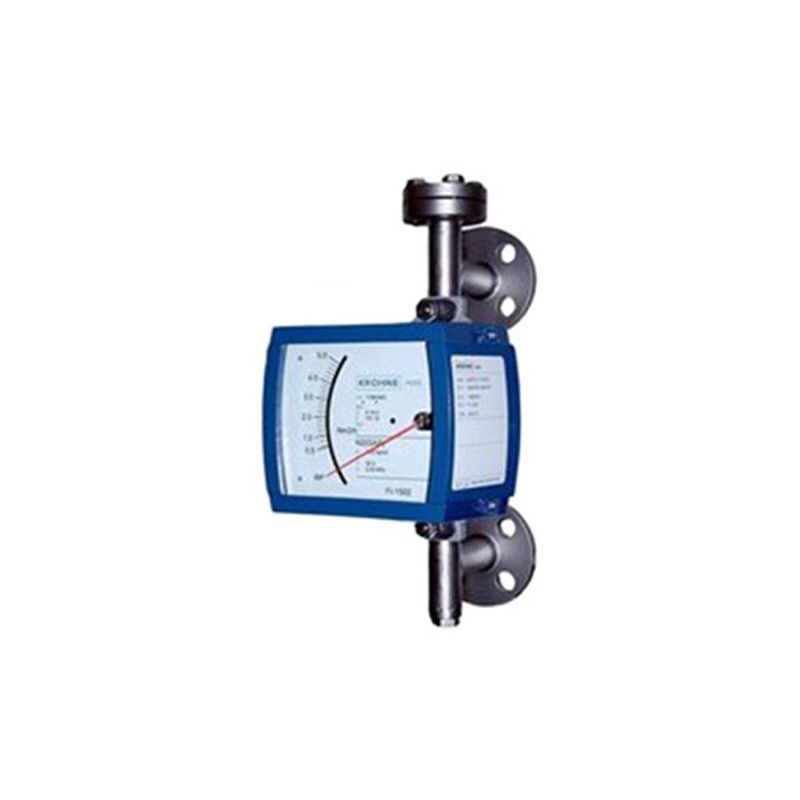

High Accuracy Low Cost Gas Application Of Rotameter Steam Flow Meters
Description
PTD metal rotor flowmeter is composed of sensors and indicators. Combination of different ways to achieve different environmental requirements of different specifications of metal pipe flow meter. Widely used in petroleum, chemical, metallurgical, power, food, pharmaceutical, paper and other industries of liquid, gas, steam media measurement and process control.

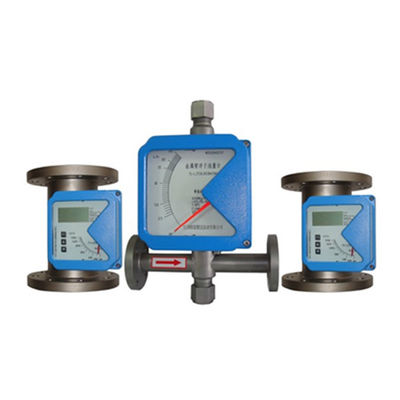

Detailed Images
Specification
| High Accuracy Low Cost Gas Application Of Rotameter Steam Flow Meters | ||
| Range Ratio | 10:1 | |
| Accuracy Level | Local Type | 1.5, 2.0 |
| Far EasTone | 1.0, 1.5, 2.0 | |
| Protection Class | IP65, IP67 (Standard: IP65 other order to be specified) | |
| Nominal Pressure | 1.6Mpa, 2.5Mpa, 4.0Mpa, 32Mpa, 25MPa, 20Mpa | |
| Medium Temperature | In-situ Type | -80℃ ~ +300℃ |
| Far EasTone | -40℃ ~ +150℃ | |
| Ambient Temperature | Placement | -40℃ ~ +120℃ Max: 120℃ |
| Far EasTone | -40℃ ~ +50℃ Max: 60℃ | |
| Storage Conditions | Temperature Range | -20℃ ~ +60℃ |
| Relative Humidity | ≤85% | |
| Connection Type | Flange Connection, Standard DIN2501 Other Standard Order Separately | |
| Cable Interface | M20×1.5 | |
| Explosion-Proof Mark | Exia IICT6 (GYBO4325); Exd IICT6 (EC041432 | |
Features
·Modularly combined,maintenance-free.
·High accuracy, generally up to ± 1.5% R, ± 1.0% R.
·Non-contacting magnetic coupling structure,the spectrum signals travel well.
·LCD with backlight,duplicate rows display.
·Data backup and recovery.
·All metal construction,seismic pressure ,heat-resistant and anti-corrosion.
Applications
The digital types of rotameter can be widely used in below industry
* Petroleum
* Chemical
* Metallurgical
* Power
* Food
* Pharmaceutical
* Paper and other industries of liquid, gas, steam media measurement and process control.
