| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | MF4001 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $219 ~ $245.00 |
| Packaging Details: | RS485 Output Mass Digital Air, Gas Flow Sensor Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Maximum Flow: | 30,100,200,500,1000sccm | Accuracy: | ±(1.5+0.5FS)% |
|---|---|---|---|
| Repeatability: | ±0.25% | Zero Output Drift: | ±30m V |
| Working Power: | 3.0~3.6VD C ,20m A | Display Resolution: | 0.01sccm |
| Maximum Flow Pressure Loss: | 350Pa | Maximum Working Pressure: | 0.5MPa |
| Operating Temperature: | -10~55℃ | Display Method: | LC D Showing Instantaneous Flow |

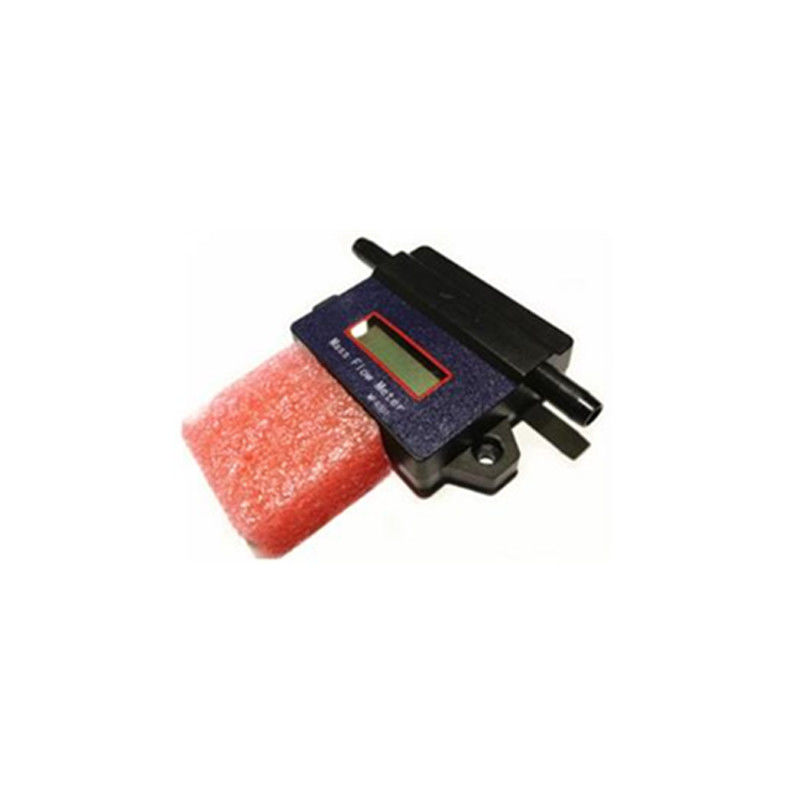

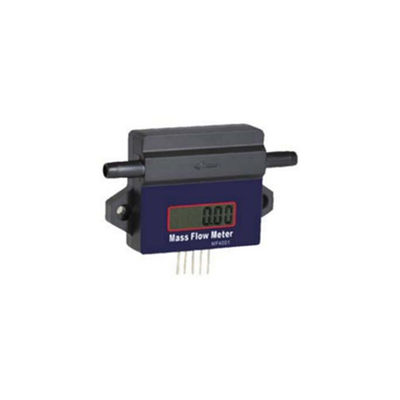

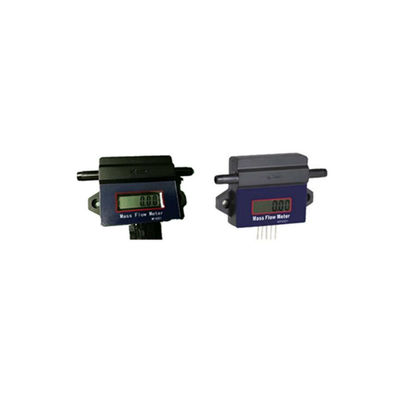

MF4001 series gas mass flow meters are specially designed for measuring various types of small flow gases and process control . This series of flow meters uses micro Electromechanical system (M EM S? Flow sensor chip for the production of various types of clean gas body. Unique packaging technology enables it to be used in various pipe diameters, low cost, easy installation, no needs temperature and pressure compensation, which can replace traditional flow meters with volumetric or differential pressure.
The sensor chip uses thermal mass flow metering, eliminating the need for temperature pressure compensation, ensuring flow
Gauge high-precision measurement
Multi-sensor integration on a single chip, greatly improving the range ratio of the flow meter
High stability at zero
Full scale high stability
Full scale high accuracy and excellent repeatability
Low power consumption, low pressure loss
Fast response time
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Xi'an Shelok Instrument Technology co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept
