| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | TUF-2000H |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $325.00 ~ $650.00 |
| Packaging Details: | RS485 Output Mass Digital Air, Gas Flow Sensor Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Range: | 2m,5m,8m,10m,12m,15m,20m,25m,30m (option) | Blind Area: | 0.06~ 1.5m |
|---|---|---|---|
| Minimum Display Resolution: | 1mm | Frequency: | 20 KHz~200KHz |
| Accuracy: | 0.3%F.S | Work Power: | AC220Vor DC12-24V |
| Signal Output: | 4~20mA,0~20mA,0~5V, 0~10V>300Ω | Product Name: | Handheld Ultrasonic Liquid Water Level Sensor |
Description TUF-2000H Handheld Ultrasonic Flow Meter:
TUF-2000H Handheld Ultrasonic Flow Meter is our company plot many years of production experience, learn a variety of similar products advantages, and the development of a convenient hand-held ultrasonic rangefinder instrument. With accurate measurement, reliable work, the appearance of generous, easy to carry and so on. Using large-scale integrated circuits, component patch rate of 99%. To ensure the long-term reliability of the product, while reducing its power consumption to a very low. Using a large screen display clear, the entire Chinese menu easy to use, support SD card data acquisition and serial data download. Can record ten interference echo points.
Product Features TUF-2000H Handheld Ultrasonic Flow Meter
1, Built-in GPRS, Wifi.
2,The sensor is strong and stable for harsh industrial situations.
3,Backup and restore settings.
4, Can adjust the analog output and manually set blind area
5, Digital filtering and echo recognition
6,Support blue-tooth ,GPRS,Mini SD card ,USB ,Mini printer (option)
7,Chinese and English bilingual menu easy to read.

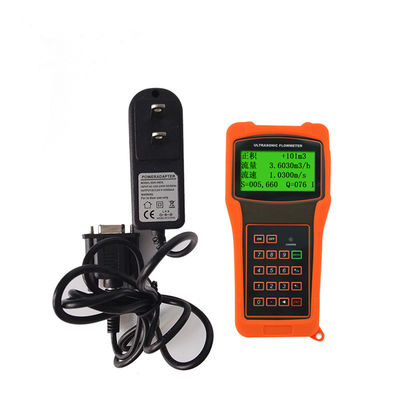

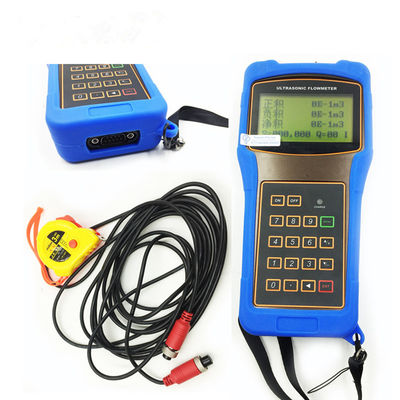

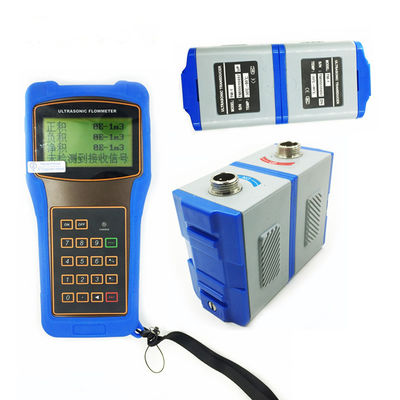

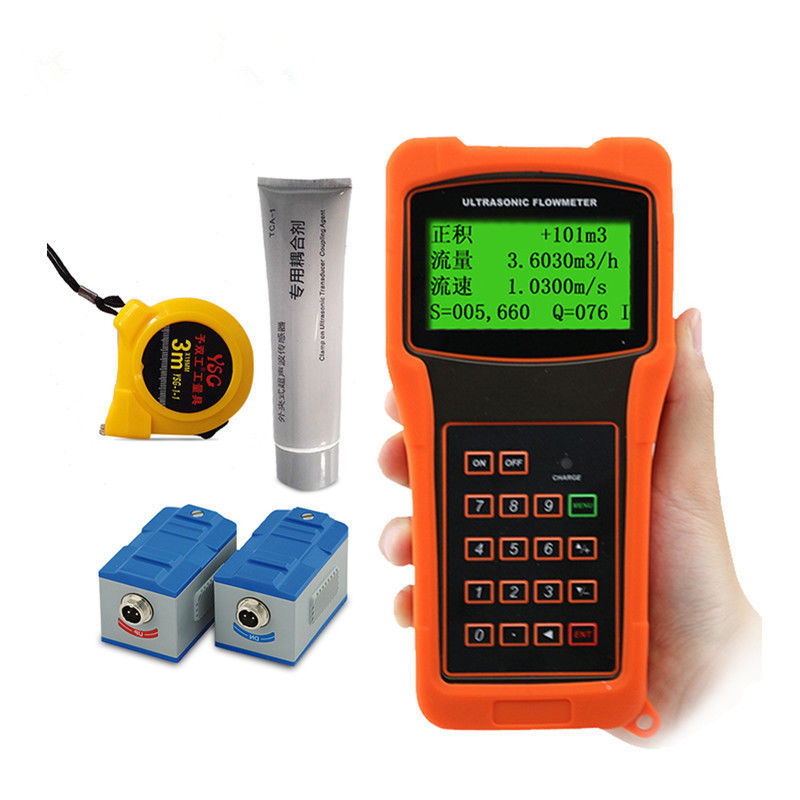

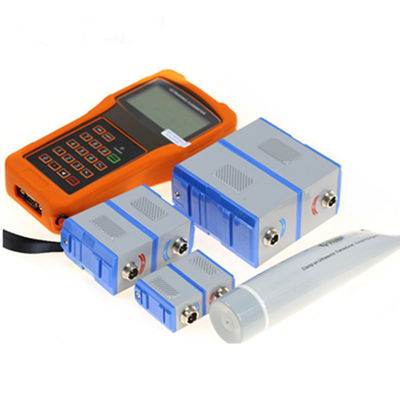

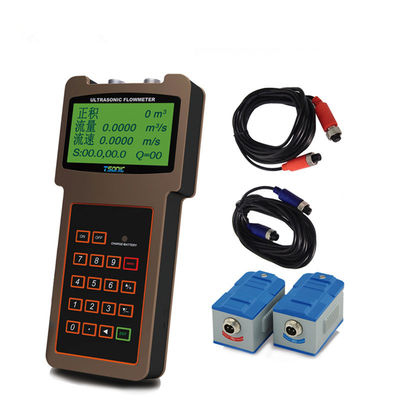

Product show TUF-2000H Handheld Ultrasonic Flow Meter
Range:1m,2m,5m,8m,10m,12m,15m,20m,25m,30m (option)
Blind area:0.06~ 1.5m
Minimum display resolution:1mm
Frequency :20 KHz~200KHz
Accuracy:±1mm`0.3%F.S
Display:Chinese and English bilingual LCD, colourful TFT(option)
Output Method:USB-UART
Signal output:4~20mA,0~20mA,0~5V, 0~10V>300Ω
Work power:AC220Vor DC12-24V
Product Size:200mm×94mm×40mm
Material:ABS plastics,Nylon
Sensor material: 2m shielded cable(option the length )
Interface:G1 1/2, M60×2 ,M30X1.5 or DN80 non-stander flage(Range 20m-30m)
Protection grade:IP65 and EXiaII BT4Gb
