| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | LWGY |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | $165.00 ~ $585.00 |
| Packaging Details: | RS485 Output Mass Digital Air, Gas Flow Sensor Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Flow Meter Low Price/flow Meter Digital/flow Meter Water | Accuracy: | 0.5 |
|---|---|---|---|
| Power Supply: | 24VDC | Output: | 4-20mA |
| Nominal Pressure: | .0Mpa; 1.6Mpa; 2.5Mpa; 4.0Mpa; 6.3Mpa | Explosion-proof Mark: | ExiaIICT4 |
| Protection Class: | IP65 | Medium Temperature: | -20℃~80℃ |
| Ambient Temperature: | -30℃~60℃ |
Flow meter low price/flow meter digital/flow meter water
Description
LWGY series liquid turbine flowmeter is a kind of speed instrument, which has the advantages of high accuracy, good repeatability, simple structure, small pressure loss and convenient maintenance. It is used to measure the volume flow of low viscosity liquid in closed pipe. In the petroleum, chemical, metallurgy, water supply, paper and other industries with a wide range of applications.

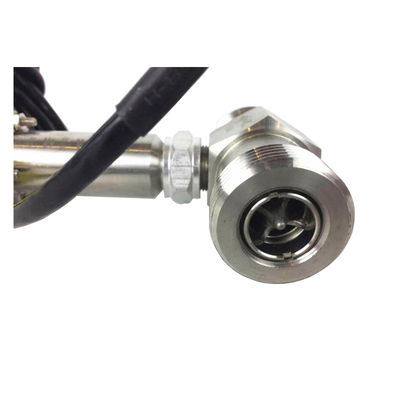

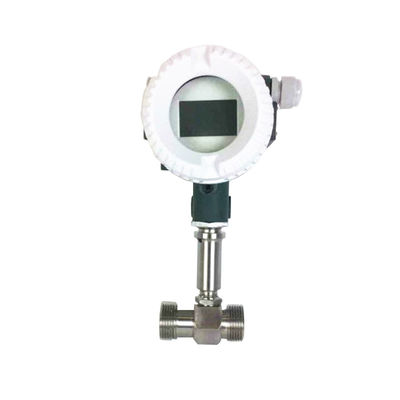

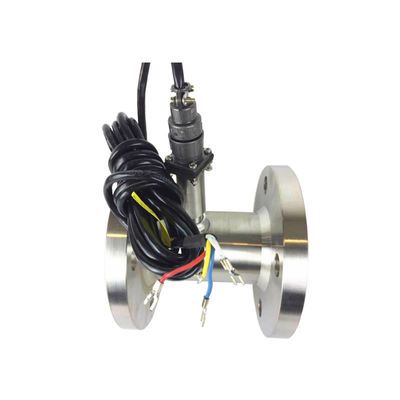

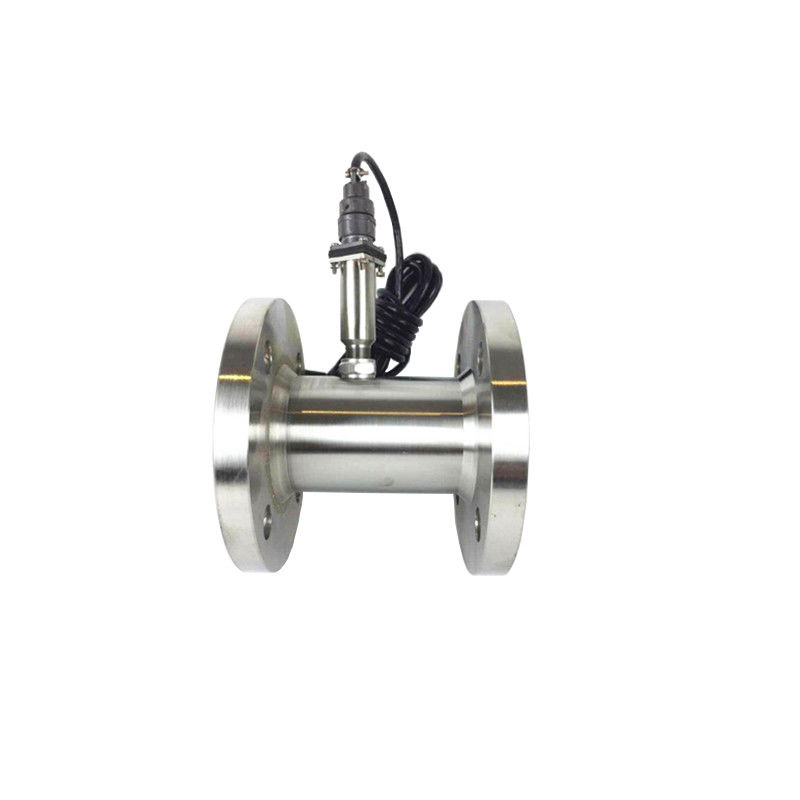

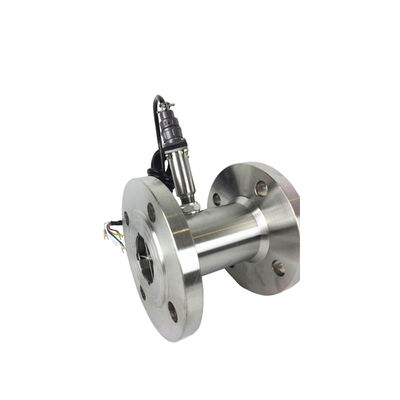

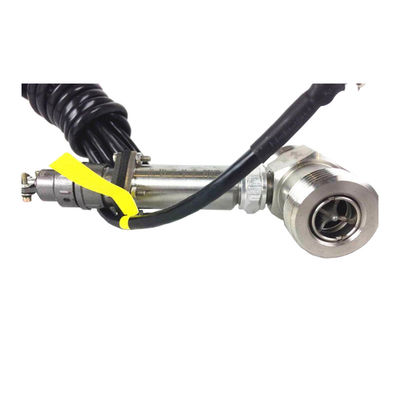

Detailed Images
Specification
|
Measure medium:
|
liquid or gas
|
|
Nominal diameter:
|
DN4 -- DN200mm
|
|
Measurement accuracy:
|
0.2, 0.5, 1.0 (preferred)
|
|
Medium viscosity:
|
less than 5 × 10-6m2 / s (for the liquid with >5 × 10-6m2 / s , the flowmeter needs to be calibrated before using)
|
|
Nominal pressure:
|
1.0Mpa; 1.6Mpa; 2.5Mpa; 4.0Mpa; 6.3Mpa
|
|
Medium temperature:
|
-20 ℃ ~ +120 ℃ (stainless steel measuring tube)
|
|
Environmental conditions:
|
Ambient temperature: -20 ℃ ~ +60 ℃; Relative humidity: 5% to 95%; Atmospheric pressure: 86kPa ~ 106kPa;
|
|
Power supply:
|
3.6V lithium battery; 12VDC; 24VDC;
|
|
Output signal:
|
three-wire pulse output, two-wire 4-20mA output
|
|
Ingress protection :
|
IP65 (IP67, IP68 );
|
Selection
Nominal size
Medium
Input power
Output signal
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delivery of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
