| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | TUF-2000H |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD339.00 ~ USD1350.00/pc |
| Packaging Details: | RS485 Output Mass Digital Air, Gas Flow Sensor Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Handheld Ultrasonic Flow Meter Price | Measurement Range: | DN15-DN6000 |
|---|---|---|---|
| Temperature: | -30~160°C | Power Consumption: | 1.5W |
| Housing Material: | Inflaming Retarding ABS | Main Unit Weight: | 390g |

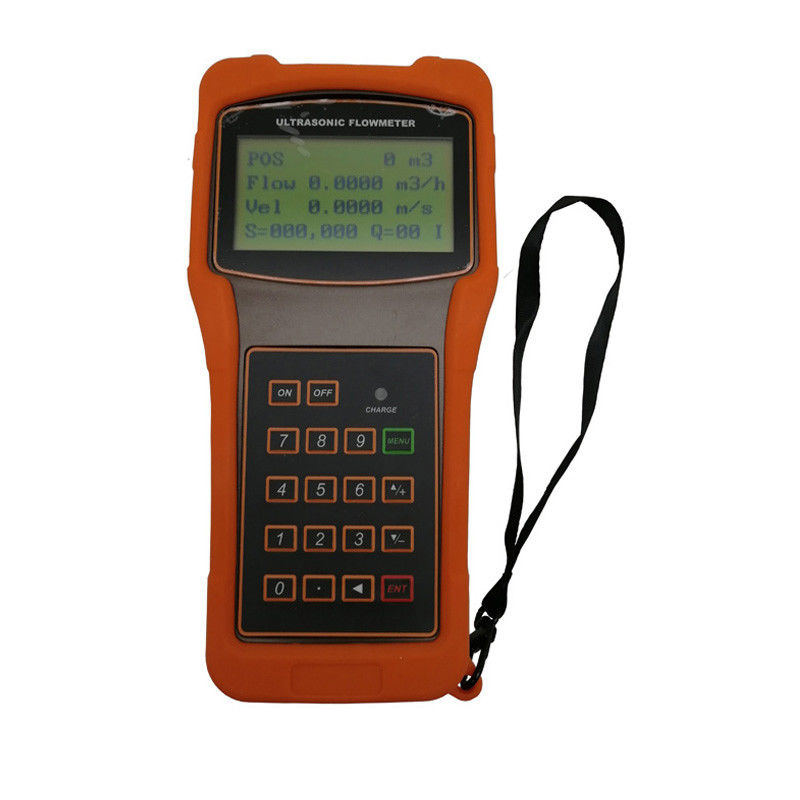

Handheld ultrasonic flow meter price
Specification
| Items | Performance & Parameter | |
|
Meter |
Principle | Transit time ultrasonic flowmeter |
| Accuracy | ± 1% | |
| Display |
4×16 character LCD with backlight, support the language of Chinese, English and Italian |
|
| Signal Output |
1 way OCT pulse output(Pulse width 6~1000ms, the default value is 200ms) |
|
| Data Interface |
Insulate RS232 serial interface, upgrade the flowmeter software by computer |
|
|
Pipe Installation Condition |
Pipe Material |
Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed. |
| Pipe Diameter | 15~6000mm | |
| Straight Pipe |
Transducer installation should be satisfied: upstream 10D, downstream 5D, 30D from the pump. |
|
|
Measuring Medium |
Type of Liquid |
Single liquid can transmit sound wave, such as water, sewage, oil, chemicals, plant effluent, beverage, ultra-pure liquids, etc. |
| Temperature | -30~160°C | |
| Turbidity | Less than 10000ppm and little bubble | |
| Flowrate | 0 ~ ±7m/s | |
|
Working Environment |
Temperature | main unit: -20~60°c; Transducer: -30~160°c |
| Humidity | main unit: 85%RH; Transducer protection level: IP67 | |
| Power Supply |
3 built-in Ni-MH batteries 1.2V(for over 12 hours of operation). Achieve to continuous measurement by connecting AC 90V - 260V adapter. |
|
| Power Consumption | 1.5W | |
| Housing Material | Inflaming retarding ABS | |
| Main unit Weight |
390g |
|

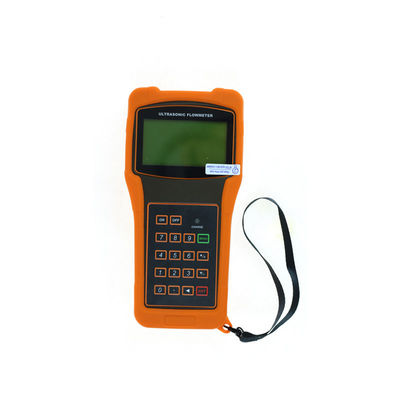

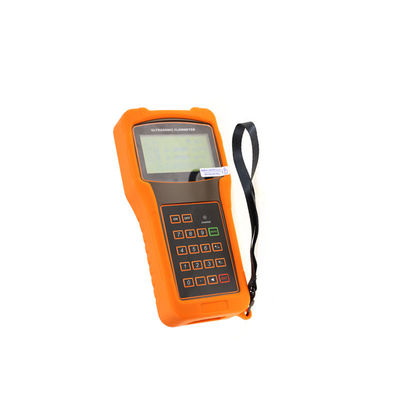

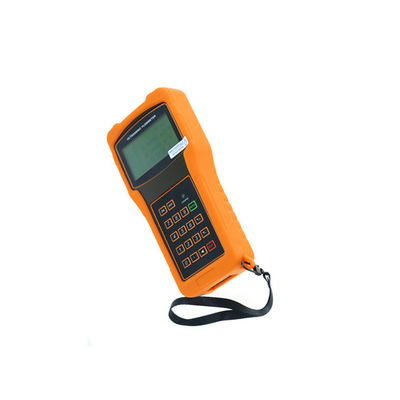

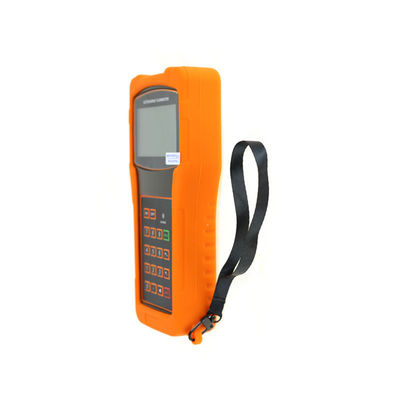

Detailed Images
Advantages
High accuracy measuring: Accuracy: ±1%, linearity: 0.5%, repeatability: 0.2%
Wide measuring range: DN15~DN6000
Large capacity battery: Ni-MH battery, operate over 12 hours
Non-intrusive measuring: clamp on transducer, no pressure dropSupport multiple language
menu: Chinese, English, Italian and other language can be customized.
Large LCD display:show varieties of results like accumulated flow rate, velocity, working status etc
Built-in data logger: store over 2000 lines measuring data

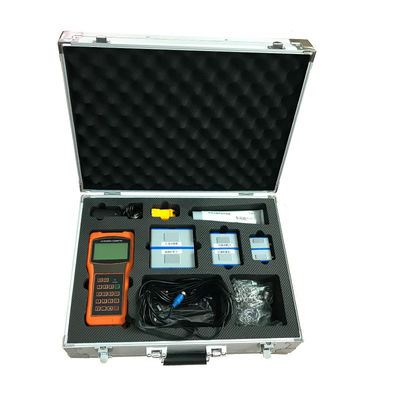

Standard packing
1. TUF-2000H Ultrasonic Flowmeter
