Name: Digital water liquid flow meter
Brand: Zhejiang Nancon Industrial Technology Co., Ltd.
SKU: ZFG
Price: 784.00 USD
Availability: InStock

Home Products Flow Meter

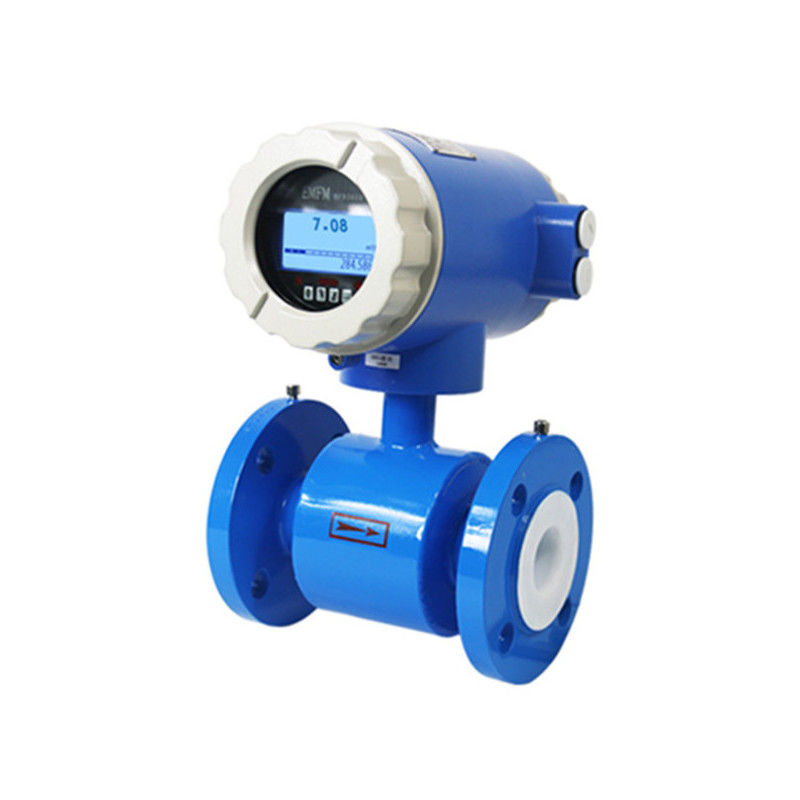

Digital water liquid flow meter

Product Details:

Place of Origin:	Made In China
Brand Name:	SHELOK
Certification:	CE
Model Number:	ZFG

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	USD219.00 ~ USD1350.00/pc
Packaging Details:	RS485 Output Mass Digital Air, Gas Flow Sensor Standard export carton packing or can customized
Delivery Time:	3 ~ 7 Working Days After Payment
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	10000pcs/Month

Contact Now

Detailed Product Description

Product Name:	Digital Water Liquid Flow Meter	Nominal Diameter:	DN15-DN3000mm
Working Pressure:	≤1.6MPa	Working Temperature:	≤70 °C
Conductivity Range:	≥50μs/cm	Upper Flow Rate Range:	Adjustable From 1 To 10 M/s
Medium Type:	Liquid	Output Signal:	Current, Pulse
Electrode Materials:	304, 304L, 316, 316L, Hastelloy, Ti	Accuracy:	0.5%

Digital water liquid flow meter

Description

Intelligent electromagnetic flowmeter consists of two parts, the sensor and converter. It is based on the work of Faraday's law of electromagnetic induction, used to measure the conductivity is greater than 5μS / cm conductive liquid volumetric flow rate, is a measure of the volume flow of conductive medium for induction meter. In addition to measure the volume flow of conductive liquid, it can also be used to measure the volume of a homogeneous liquid-solid two-phase flow of a liquid suspension of acid and alkali and other strong corrosive liquids and slurries, pulp and paper pulp. Widely used in flow measurement of petroleum, chemical, metallurgy, textile, paper, environmental protection, food and other industrial and municipal administration, water conservancy construction, river dredging and other fields.

Detailed Images

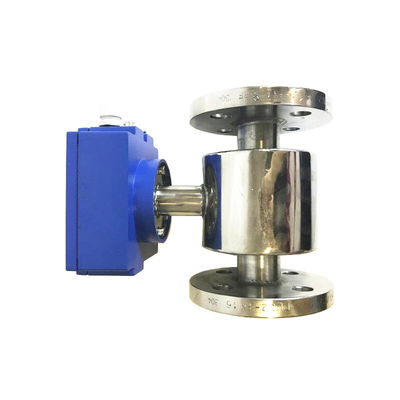

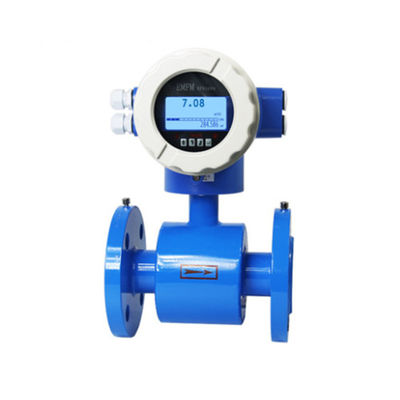

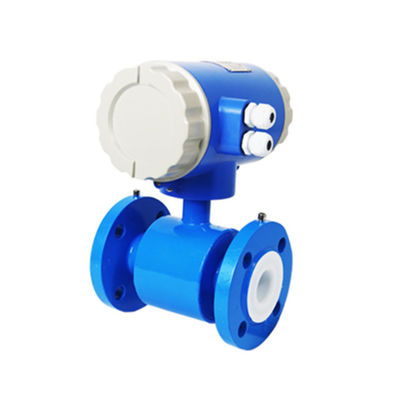

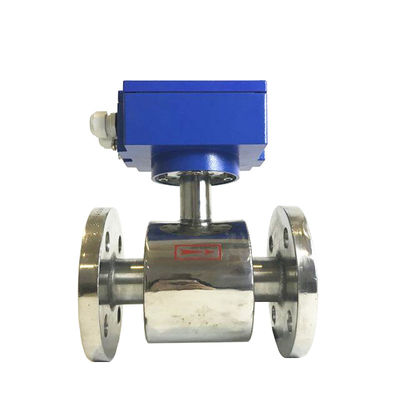

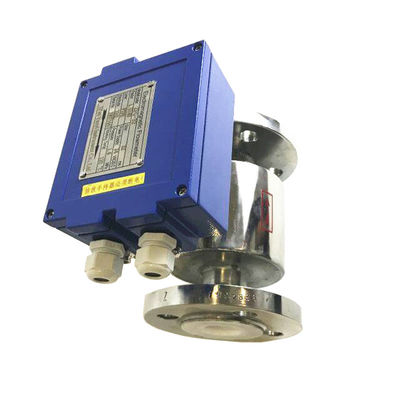

Digital water liquid flow meter

Specification

Size(mm)	DN15mm---DN3200mm
Medium	Conductive liquid, slurry
Medium Temperature	Chloroprene Rubber:-10-60℃: PTFE:-10-120℃
Installation Type	Flange connection, Insert type, sanitary clamp type, thread connection.
Lining	Chloroprene Rubber,PTFE, Polyurethane ,fluororesin-46
Electrode material	316L,HC,HB,Titanium,Tantalum,Platiniridium
Grade of Accuracy	0.2%, 0.5%
Flow Velocity	≤15m/s
Rated pressure	1.0MPa, 1.6MPa, 2.5MPa, 4MPa
Cable Interface	M20*1.5 or G1/2 Female Thread etc.
Sealed	IP65, IP68
Output Signal	4-20mA Current or Pulse
Communication	RS485 Protocol Modbus protocol
Power Supply	220VAC, 24VDC

Features

Fully digital processing, anti-interference ability, reliable measurement, high accuracy flow measurement range up to 1500: 1

Ultra-Low EMI switching power supply for supply voltage variation range, anti-EMI performance.

16-bit embedded microprocessors, computing speed, high precision, programmable low-frequency square wave excitation frequency and improve the stability of the flow measurement, low power consumption.

using SMD devices and surface mount (SMT) technology, circuit reliability.

No moving parts inside the pipe l, unimpeded flow of parts, measuring almost no additional pressure loss.3

range in the field can be modified online according to the actual needs.

measurements and velocity distribution, the physical parameters of the fluid pressure, temperature, density, viscosity and the like.

High-resolution backlit LCD display, full Chinese menu, easy to use, simple to operate, easy to understand.

have RS485, RS232, Hart, and Modbus and other digital communication signal output. (Optional)

has a self-test and self-assertion.

total hourly recording function to record the total flow in units of hours for hourly metering system (optional)

have three internal totalizer can show the cumulative amount of forward and reverse cumulative amount of the difference between the volume totalizer, the internal power-down features not always, can record 16 power-down times. (Optional)

IR handheld operator, 115KHZ communication speed, long-distance non-contact operation of all functions converter (optional)

Selection

1. Nonimal diameter

2. Input power

3. Output signal

4. Medium

5. Pressure and temperature
