| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | ZFG-F |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD299.00 ~ USD398.00/pc |
| Packaging Details: | RS485 Output Mass Digital Air, Gas Flow Sensor Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Split Electromagnetic Acid Flow Meter | Accuracy: | ± 0.5%, ± 1% |
|---|---|---|---|
| Ambient Temperature: | -25 ℃ ~ +45 ℃ | Relative Humidity: | 5% To 95% |
| Power Supply: | 220VAC ± 10%, 50Hz ± 5% 24VDC ± 10% | Electrode Material: | 316 Stainless Steel |
| Nominal Pressure: | 1.0Mpa ~ 32Mpa | Protection Class: | IP65, IP68 |
| Explosion-proof Mark: | ExibBT4 | Connection: | Flange Clip, Flange Connection |

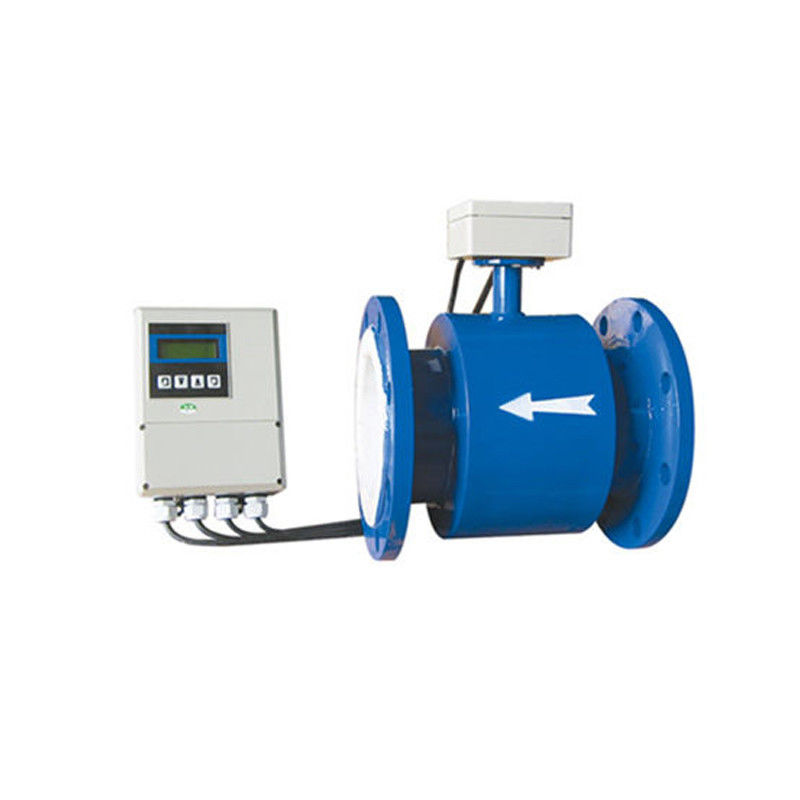

Split electromagnetic acid flow meter application water
Description
ZFG-F split electromagnetic flow meter measurement principle is based on Faraday`s law of electromagnetic induction, split electromagnetic flow meter by the sensor and converter components, the sensor installed in the measurement pipeline, the converter is installed within 30 meters from the sensor or within 100 meters, both between the shielded cable connection.Split electromagnetic flow meter sensor is the main components: measuring tube, electrode, excitation coil, iron core and yoke shell.

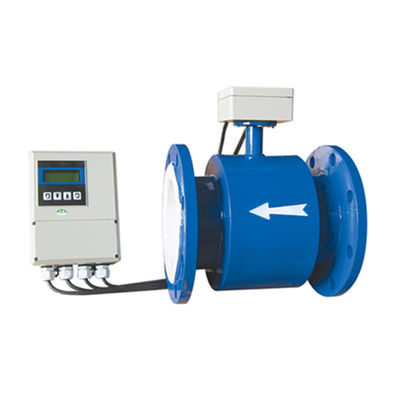

Detailed Images
Specification
| Split electromagnetic flow meter | ||
| Accuracy Class | ±0.5%, ±1% | |
| Material | Lining Material | Polyurethane, Chloroprene rubber, poly tetrfluoroethlane |
| Electrode Material | Stainless Steel, Hastelloy, Titanium, Platinum iridium alloy | |
| Nominal Diameter Series | Tetrafluoroethane lining: DN5~DN1200mm; Rubber lining: DN10~DN2000mm | |
| Operating Temperature | Neoprene Lining: -20℃ ~ +60℃; Polyurethane lining: -20℃ ~ +90℃; Polytetrafluoroethylene lining: -30℃ ~ +180℃ | |
| Flow Rate Range | 0.5 ~ 10m/S | |
| Power Consumption | less than 25W | |
| Medium Temperature | 0℃ ~ 70℃; 0℃ ~ 130℃(0℃ ~ 180℃) | |
| Nominal Pressure | 1.0Mpa ~ 32Mpa | |
| Working Voltage | 220V AC; 24V DC | |
| Working Pressure | DN10~DN65: 2.5Mpa; DN80~DN150: 1.6Mpa; DN200~DN1600: 1.0Mpa | |
| Ambient Temperature | -25℃ ~ +45℃ | |
| Relative Humidity | 5% ~ 95% | |
| Output Signal and Load Resistance | 0~10mA DC, 0~1000Ω; 0~1000Hz; not less than 10KΩ; 0~4~20mA DC, 0~500Ω; 1~5V, 0~5V, not less than 10KΩ | |
Traffic Range
Features
·The measurement tube without obstruction of moving parts, no pressure loss, straight pipe requirements lower;
·The converter uses a new excitation method, low power consumption, zero stability, high accuracy. Flow range of up to 150: 1;
·The converter can be integrated with the sensor or separation type;
·Flow meter for the two-way measurement system, built-in three totalizer;
·The converter using surface mount technology (SMT), with self-test and self-diagnostic function
·For conductivity than 5μs / cm conductive fluid volume flow measurement
·The measurement tube without activity and blocking components, the pressure loss is small
·With different materials lining and electrode has good corrosion resistance
·Free from media, density, viscosity, temperature, pressure and conductivity
·Low frequency rectangular wave excitation, not susceptible to interference, can be stable and reliable
·The converter low energy consumption, easy to install, the user does not need debugging
Applications
Split electromagnetic flow meter is mainly used to measure the volume flow in the conductive fluid and slurry in the closed pipe. Such as water, sewage, mud, pulp, all kinds of acid, alkali, salt solution, food slurry, widely used in petroleum, chemical, metallurgy, textile, food, pharmaceutical, paper and other industries and environmental protection, municipal management, water conservancy construction and other fields High temperature, high humidity, inconvenience to observe the environment.
