| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | LUWG |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD299.00 ~ USD398.00/pc |
| Packaging Details: | RS485 Output Mass Digital Air, Gas Flow Sensor Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Nominal Diameter(mm): | 25,40,50,65,80,100,125,150,200,250,300 | Nominal Pressure (MPa): | DN25-DN200 DN250-DN300 |
|---|---|---|---|
| Medium Temperature(℃): | Piezoelectric Type:-40~260,-40~320 | Accuracy: | ±1%R,±1.5%R,±1FS;Insert Type:±2.5%R,±2.5%FS |
| Range: | 1:6~1:30 | Explosion Proof Marks: | Intrinsic Safety Type: Exd IA CT2-T5 Flameproof Type: Exd CT2-T5 |
| Product Name: | China Cheap Digita Gas Liquid Flow Meter Vortex Flowmeter |

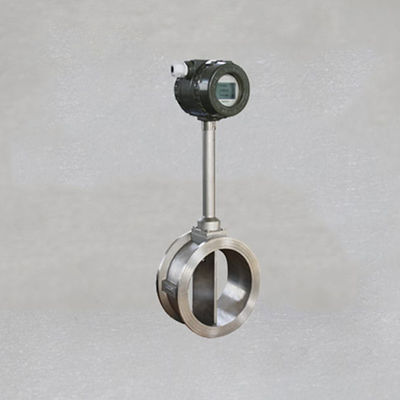

China cheap digita gas liquid flow meter vortex flowmeter
Description of China cheap digita gas liquid flow meter vortex flowmeter:
vortex flowmeter is a kind of intelligent integration by using the latest international digital integrated technology and according to the actual needs of domestic industrial automatic control research and development of a new generation of high quality intelligent instrument.Piezoelectric crystals as detecting element stress testing new type intelligent turbine flow meter.
Main features of China cheap digita gas liquid flow meter vortex flowmeter:
1.Two-wire and three -wire system.
2.large range
3.Can be used to measure gas,steam and liquid.
4.EVC function is optional.

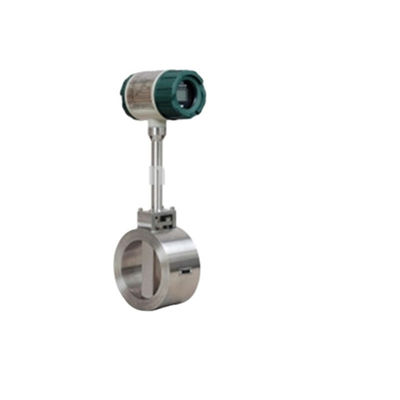

digita gas liquid flow meter vortex flowmeter
Technical parameters of vortex flowmeter:
| Nominal diameter(mm) | 25,40,50,65,80,100,125,150,200,250,300,(300~1000 Insert type) |
| Nominal pressure (MPa) | DN25-DN200 4.0(>4.0 Supply agreement),DN250-DN300 1.6(>1.6 Supply agreement) |
| Medium temperature(℃) |
Piezoelectric type:-40~260,-40~320;Capacitance type : -40~300, -40~400,-40~450(Supply agreement) |
| Body material | 1Cr18Ni9Ti,(Other materials supply agreement) |
| Allowable vibration acceleration | Piezoelectric type:0.2g Capacitance type:1.0~2.0g |
| Accuracy | ±1%R,±1.5%R,±1FS;Insert type:±2.5%R,±2.5%FS |
| Range of | 1:6~1:30 |
| Power supply voltage | Sensor:+12V DC,+24V DC;Transmitter:+12V DC ,+24V DC;Battery type:3.6V Battery |
| Output signal | Square wave pulse ( not including the battery power supply type ): high level or low level5V,1V; current: 4~ 20mA |
| Pressure loss coefficient | In line with the JB / T9249standard Cd = 2.4 |
| Explosion proof marks | Intrinsic safety type: Exd IA CT2-T5 flameproof type: Exd CT2-T5 |
| Protection grade | The ordinary IP65 diving type IP68 |
| Environmental conditions | Temperature - 20~ 55,5% ~ 90% of relative humidity, atmospheric pressure is 86 ~ 106kPa |
| Applicable medium | Gas, liquid, steam |
| Transmission distance | Three wire system pulse output type: < 300m, two line standard current output type (4 ~ 20mA ): load resistance less than 750ohm |
Standard export carton packing.
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
