| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | LZB-WB |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD13.00 ~ USD95.00/pc |
| Packaging Details: | RS485 Output Mass Digital Air, Gas Flow Sensor Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Gas Air Water Liquid Glass Tube Flow Meter Pipe Rotameter | Accuracy: | 1.5, 2.5, 4, 6 |
|---|---|---|---|
| Flow Range: | 0.16-25, 0.03-45L/Min | Range Rate: | 10:1 |
| Taper Pipe Length: | 100,120mm | Medium Temperature: | 0-60℃ |
| Pressure: | ≤0.2MPa | Diameter: | DN3,4,6,10 |
| Installing Hole: | 10 | Connection: | Hose Nozzle,Metal Pipe Nozzle |
Description
The main measuring components of the glass rotameter are a vertically mounted small upper and large tapered glass tube and a float that can be moved up and down. When the fluid passes through the conical glass tube from bottom to top, a pressure difference is generated between the upper and lower sides of the float, and the float is used for the differential pressure.
When the rising force, the buoyancy and the viscous lift of the float are equal to the gravity of the float, the float is in equilibrium. Therefore, there is a certain proportional relationship between the fluid flow rate flowing through the glass rotor flowmeter and the rise height of the float, that is, the flow area of the glass rotor flowmeter, and the position height of the float can be used as the flow measurement.

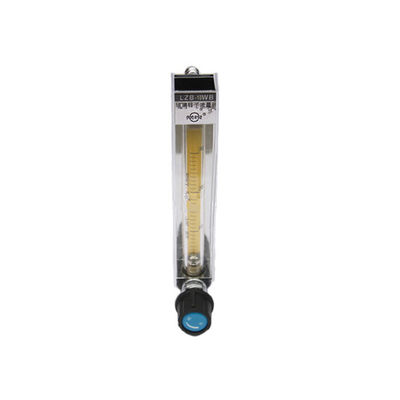

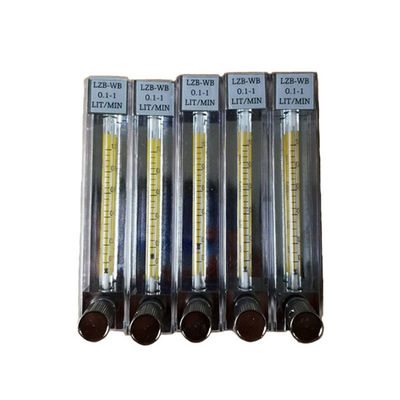

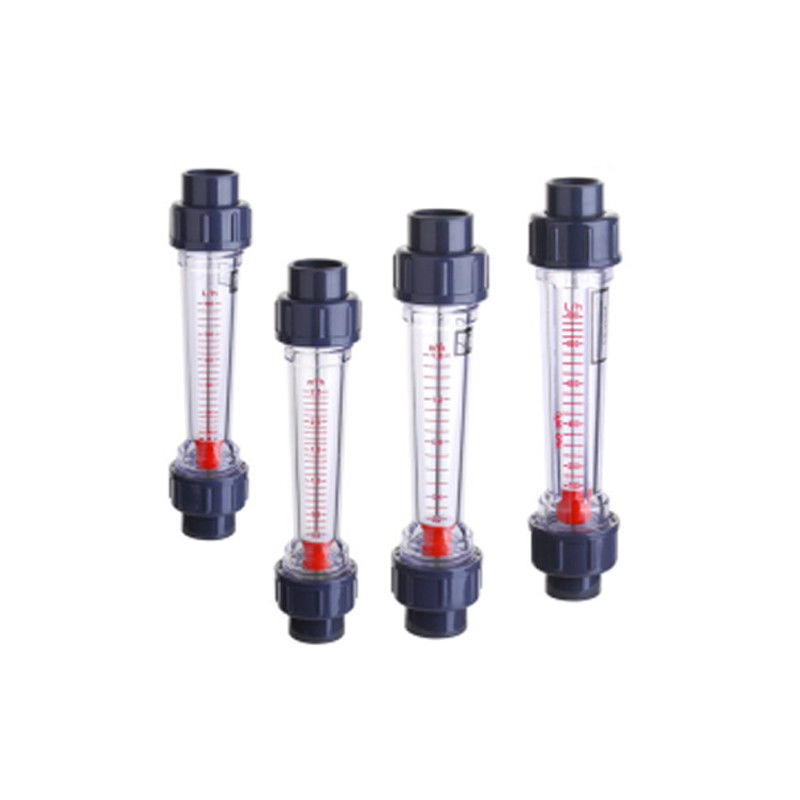

Detailed Images
Specification
| Flange type 4-20ma output digital rotameter flowmeter for Gas | |
| Measuring range | water ( 20°C) 1- 200000 I/h |
| Air ( 20°C, 0.1013 Mpa) 003-4000m3/h | |
| Ratio of spans | standard type 10 : 1 special type 20 : 1 |
| Accuracy | standard type class1.5 special type class1.0 |
| Pressure Class | |
| standard type | DN15-DN50 4.0Mpa DN80 –DN200 1.6Mpa |
| Special type | DN15-DN50 25Mpa DN80 –DN200 16Mpa |
| Pressure loss | 7kPa-70kPa |
| Medium temperature | |
| standard type | -80°C~ + 200°C |
| PTFE | 0°C~ 85°C |
| High temperature type | at most 400°C |
| Medium viscosity | |
| DN 15 | viscosity < 5mPa.s ( F15.1-F15.3 ) |
| Viscosity < 30mPa.s ( F15.4-F15.8 ) | |
| DN 25 | < 250mPa.s |
| DN 50-DN 150 | < 300mPa.s |
| Ambient temperature | liquid crystal type –30°C~+85°C |
| Pointer type –40°C~ +120°C | |
| Connection forms | |
| standard type | DIN 2510 standard flange |
| Special type | flange and thread appointed by users of any standard |
| Cable interface | M20 × 1.5 |
| Power Supply | standard type : 24V DC two-wire 4~20 mA ( 10.8 VDC ~ 36 VDC) |
| Alarm output | upper limit and lower limit instant flow rate alarm |
| Explosion-proof symbols | intrinsically safe ia II CT6 ,Explosion separation type d II CT6 |
Features
l Firm work, little maintenance and long life
l Low requirements to straight pipe part
l Broader ratio of flow rate 10:1
l Two-wire LCD indicator; instant/accumulated display of flow rate are available; backlight option.
l Single axis and sensitive display
l Rotation of non-contact magnetic coupling
l Can be applied to hazardous occasions such as flammable and explosive ones
l All-metal structure, fit for high temperature, high pressure and mediums with strong erosion.
l power supply such as two-wire system, battery, alternating current option
l Multi-parameters calibration function
l Function of date recovery, date copy and power-off protection
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
Company Information
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Xi'an Shelok Instrument Technology co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
