| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | LZB-6WB |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD11.50 ~ USD39.00/pc |
| Packaging Details: | RS485 Output Mass Digital Air, Gas Flow Sensor Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |

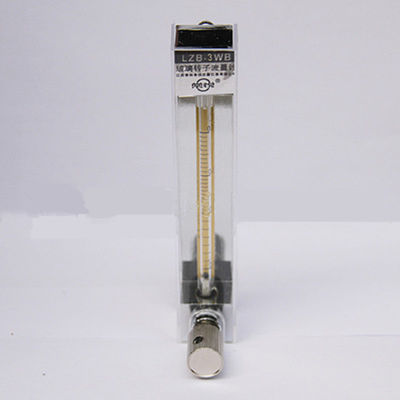

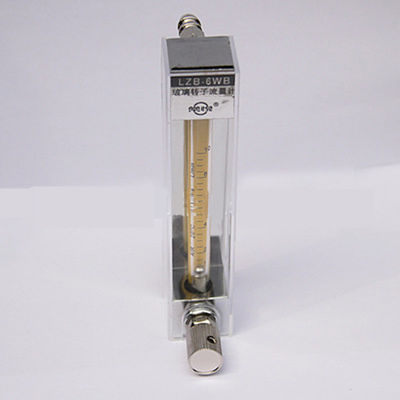

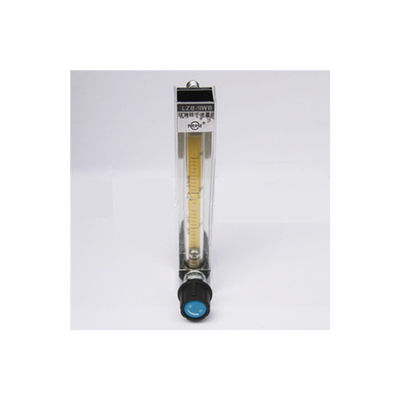

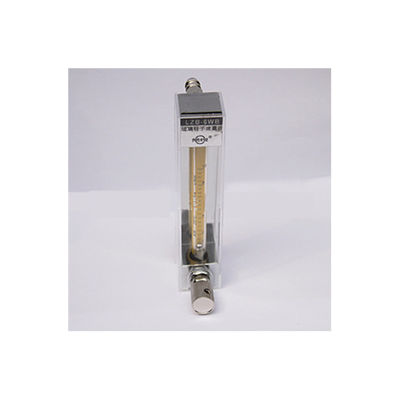

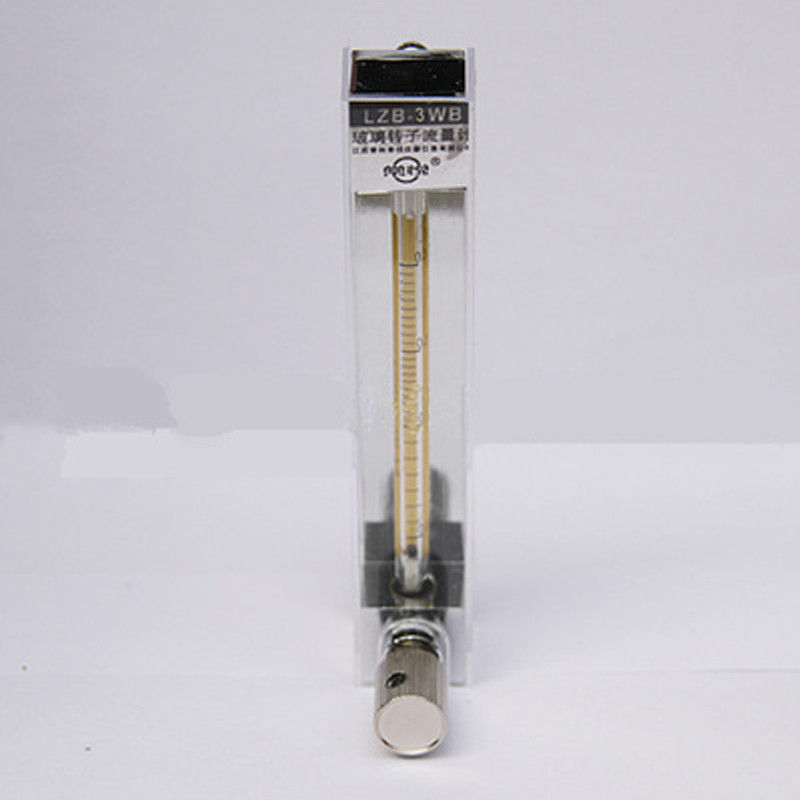

| Product Name: | Gas Air Glass Tube Rotameter Flow Meter | Accuracy: | 1.5,2.5,4,6 |
|---|---|---|---|
| Range: | 0.16-25, 0.03-45L/Min | Range Rate: | 10:1 |
| Taper Pipe Length: | 100,120mm | Temperature: | 0-60℃ |
| Pressure: | ≤0.2MPa | Diameter: | DN3,4,6,10 |
| Installing Hole: | 10 | Connection: | Hose Nozzle,Metal Pipe Nozzle |
Description
The main measuring components of the glass rotameter are a vertically mounted small upper and large tapered glass tube and a float that can be moved up and down. When the fluid passes through the conical glass tube from bottom to top, a pressure difference is generated between the upper and lower sides of the float, and the float is used for the differential pressure.
When the rising force, the buoyancy and the viscous lift of the float are equal to the gravity of the float, the float is in equilibrium. Therefore, there is a certain proportional relationship between the fluid flow rate flowing through the glass rotor flowmeter and the rise height of the float, that is, the flow area of the glass rotor flowmeter, and the position height of the float can be used as the flow measurement.
Specification
Dimensions
Related products
Company Information
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Xi'an Shelok Instrument Technology Co.,Ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
