| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | TUF-2000H |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD295 ~ USD353/pc |
| Packaging Details: | RS485 Output Mass Digital Air, Gas Flow Sensor Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Name: | Digital Water Diesel Ultrasonic Flow Meter | Accuracy: | ±1% |
|---|---|---|---|
| DN: | DN15~DN6000 | Pipe Material: | Stainless Steel, Cast Iron, Copper, Cement Pipe, PVC, Al, Glass Steel |
| Type Of Liquid: | Liquid | Temperature: | -30~160C |
| Humidity: | Convertor: 85%RH;Flow Transducer: Ip67 | Case Material: | ABS |
| Dimension: | 200*93*32MM(Convertor) | Power Consumption: | 1.5W |
Description low price ultrasonic flow meter
TUC-2000H ultrasonic flow meter is a non-contact instrument that measures both large diameter media flow and can not be used for measurements that are less accessible and observed. It is very accurate measurement, almost no interference with the various parameters of the measured medium, in particular, can not solve other instruments can not be corrosive, non-conductive, radioactive and flammable and explosive media flow measurement.
Parameter select low price digital liquid ultrasonic flow meter
| Repeatability | Better than 1% |
| Pipe size | 15mm~6000mm |
| Accuracy | ±1% of reading at rates>0.2 mps |
| Response Time | 0-999 seconds, user-configurable |
| Velocity | 0.03±32 m/s |
| Totalizer | 7-digit totals for net, positive and negative flow respectively |
| Liquid Types | Virtually all liquids |
| Security | Setup values Modification Lockout. Access code needs unlocking |
| Display | 4x8 Chinese characters or 4x16 English letters, display instant flow, velocity, total flow, signal status |
| Signal output | Non-isolation RS232(FUJI extension protocol), one channel isolation OCT output |

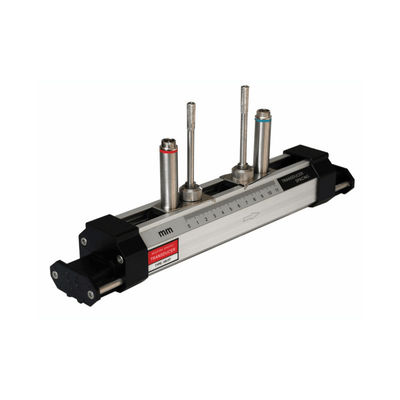

| Transducers | Clamp on type transducers |
| Transducer Cord Length | Standard 2x10 meters, optional 2x 500 meters |
| Power Supply |
3 AAA Ni-H built-in batteries. When fully recharged it will last over 12 hours of operation. 100V-240VAC for the charger |
| Data Logger | Built-in data logger can store over 2000 lines of data Housing Material ABS |
| Case Size | 48*38*20 mm |
| Handset Weight | 514g (1.2 lbs) with batteries |
Features low price digital liquid ultrasonic flow meter

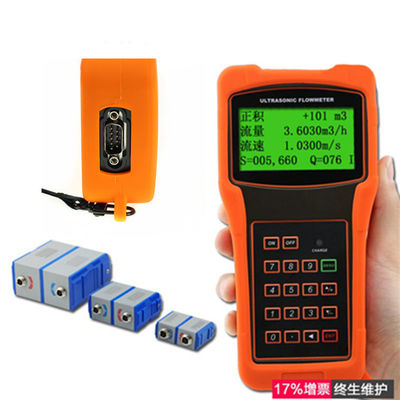

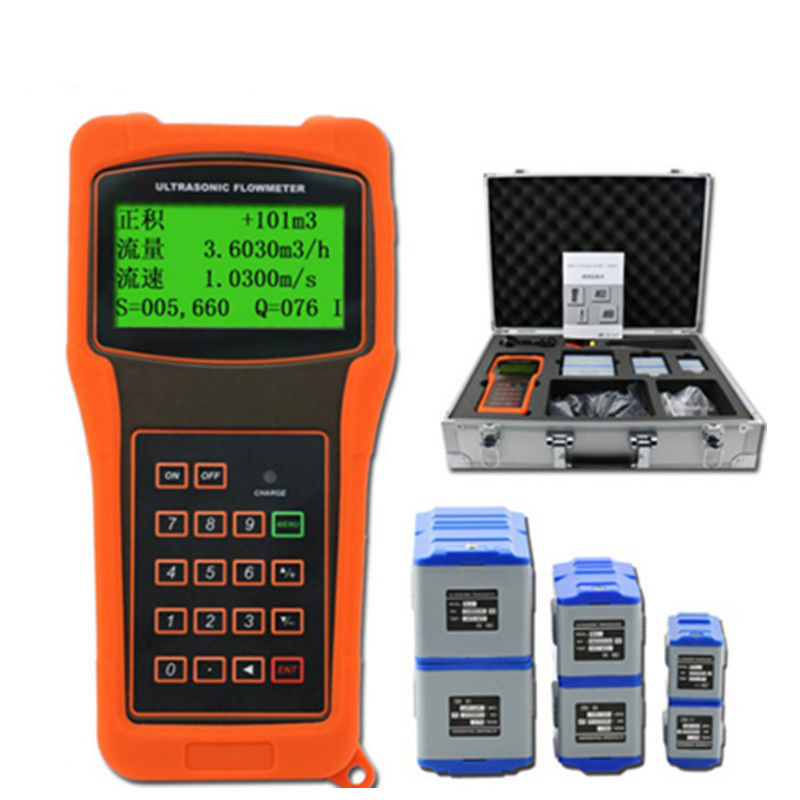

* Clamp on handheld ultrasonic flow meter
* Better than 1% accuracy.
* 0.2% of repeatability.
* Positive / negative / net flow totaliser
* 4 line LCD display.
* Operate with clamp-on transducers.
* RS-232/OCT output
* Ni-MH Battery life for up to 12 hours continuous operation.
Other flow meter

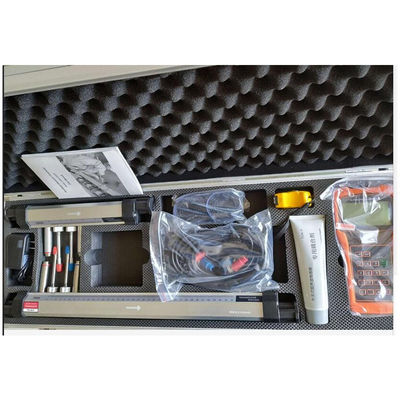

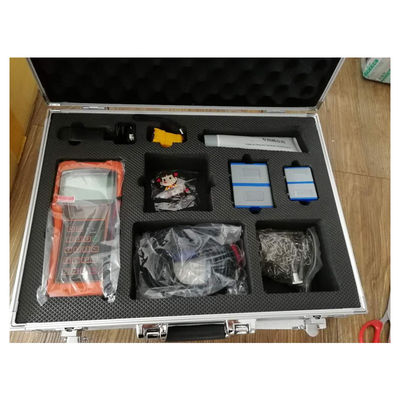

Package:
