| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | LWQ |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD320 ~ USD495/pc |
| Packaging Details: | RS485 Output Mass Digital Air, Gas Flow Sensor Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Natural Gas Turbine Flow Meters | Accuracy: | 1.0 |
|---|---|---|---|
| Power Supply: | 24VDC | Output: | 4-20mA/Pulse |
| Nominal Pressure: | 1.0Mpa ~ 32Mpa | Explosion-proof Mark: | ExdIIBT6,ExiaIICT4 |
| Protection Class: | IP65 | Medium Temperature: | -20℃~80℃ |
| Ambient Temperature: | -30℃~60℃ | Material: | Stainless Steel |

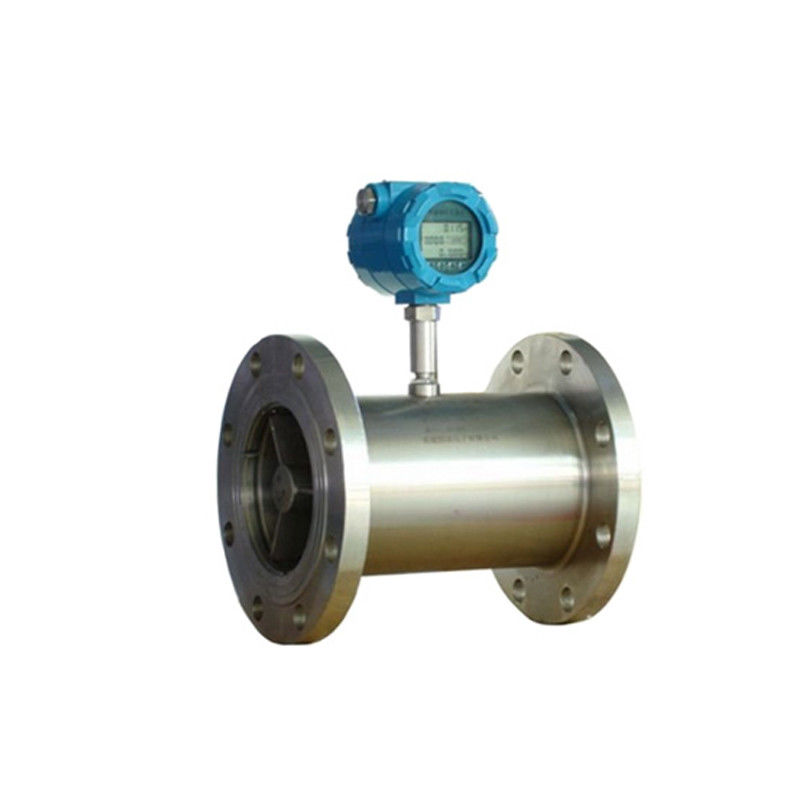

Natural gas turbine flow meters
Description
Gas flowmeter for measuring with a turbine. It first converts the flow rate to the turbine speed, and then converts the speed into an electrical signal proportional to the flow rate. This flow meter is used to detect instantaneous flow and total accumulated flow, the output signal is frequency, easy to digitize.

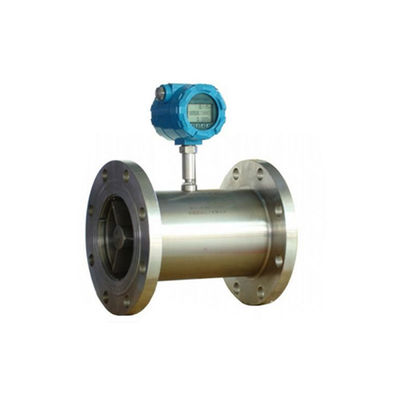

Detailed Images
Specification
| Natural gas turbine flow meters | |||||
| Specification | |||||
| Model | LWQ-N | LWQ-A | LWQ-B | LWQ-C | LWQ-D |
| Signal Output | Pulse | 4~20mA | Without | 4~20mA | 4~20mA/Pulse |
| Power Supply | +24VDC ±15% | +24VDC ±15% | Lithium Battery | 24VDC ±15% | 24VDC±15%+lithium battery |
| Accuracy | 2.5 ~ 1.5 | 1.5 ~ 1.0 | 1.5 ~ 1.0 | ||
| Measuring Range | Standard Range | Standard or Extended | Standard or Extended | ||
| Monitor | Without | Within | Within | ||
| Temperature Compensation | Without | Without | Within | ||
| Communication Interface | Without | Without | RS485 | ||
| Real-time Recording | Without | Without | Within | ||
| Medium Temperature | -20℃ ~ +80℃ | -20℃ ~ +80℃ | -20℃ ~ +80℃ | ||
| Ambient Temperature | -30℃ ~ +60℃ | -30℃ ~ +60℃ | -30℃ ~ +60℃ | ||
| Explosion | ExdllBT6 or ExiallCT4 | ||||
Measuring Range
Features
1.Can measure the flow is low, about vortex flowmeter 1/4, suitable for trade settlement
2.High accuracy, generally up to ± 1.5% R, ± 1.0% R
3.Good repeatability, short-term repeatability of up to 0.05% - 0.2%
4.Can achieve the integration of temperature, pressure real-time compensation, direct measurement of standard state flow
5.Pressure loss is small
6.Anti-vibration performance
