| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | MH-GDL204 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD550 ~ USD850/pc |
| Packaging Details: | RS485 Output Mass Digital Air, Gas Flow Sensor Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Ultrasonic Flow Meter Application Of Water | Flow Rate Range: | 0.01~±32 M/s |
|---|---|---|---|
| Flow Range: | 0.1~99999999 M3/h | Diameter Range: | DN32-10000mm |
| Accuracy: | ± 1% | Frequency: | 20 KHz To 2000 KHz |
| Analog Output: | 0 ~ 20mA; 4 ~ 20mA | Power Consumption: | <1W |
| Explosion-proof Grade: | EXiaII BT4Gb |

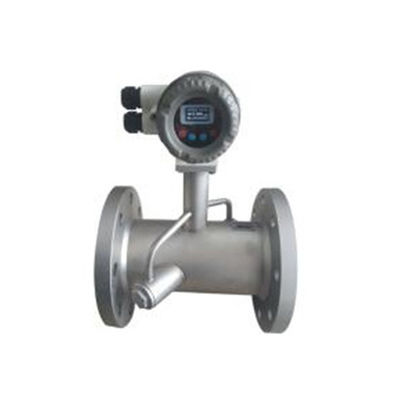

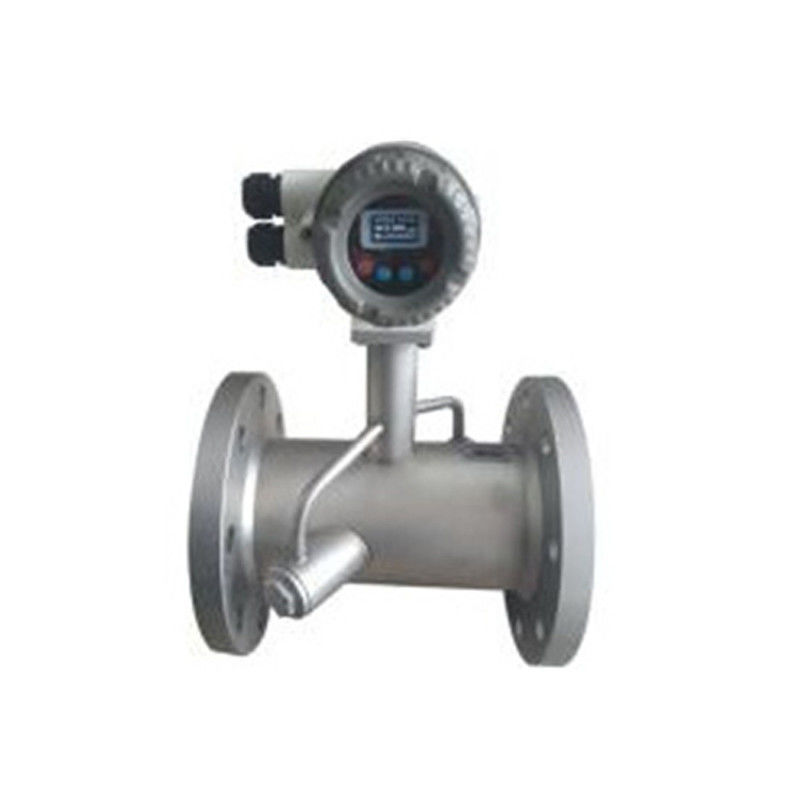

Pipeline ultrasonic flow meter
Description
MH-GDL204 Ultrasonic flow meter application of cold and heat water integrated thickness measurement function,non-open-hole and non-full-tube measurement.It has realized the all-digital, humanized design concept, with perfect flow measurement control, data transmission and man-machine communication. No need to open the hole, easy to install, does not affect the on-site production.The measurement is accurate even the liquid is uder high temperature, high pressure. This ultrasonic flow meter is highly reliable, non-polluting, stable in performance, and does not require contact with industrial media to meet flow metering requirements. It is suitable for flow measurement in various sizes.And the userd can order the types with GPRS, Wifi.
Detailed Images
Specification
| Pipeline ultrasonic flow meter application of warm and cold water | |
| Performance | |
| Flow Rate Range | 0.01 ~ ±32m/s |
| Flow Range | 0.1 ~ 9999999999M3/h |
| Diameter Range | DN32 ~ 10000mm |
| Accuracy | ±1% |
| Frequency | 20KHz ~ 2000KHz |
| Environmental Performance | |
| Protection Class | IP65(host), IP68(sensor) |
| Explosion-proof Grade | Exiall BT4Gb |
| Working Temperature | |
| Sensor | -30℃ ~ 100℃ |
| Host | -20℃ ~ 75℃ |
| Working Pressure | Atmospheric Pressure |
| Storage Humidity | ≤80%RH no condensation |
| Output/Input | |
| Analog Output | 0 ~ 20mA; 4 ~ 20mA Load>300Ω; 0 ~ 5V; 0 ~ 10V |
| Digital Output | RS485(support Modbus), M_bus, Hart Protocol, GPRS Wireless transmission |
| Pulse Output | Isolated Programmable OCT output |
| Analog Input | Four 4 ~ 20mA Analog Inputs |
| Storage Mode | EEPORM, TFT memory card, USB storage |
| Physical Characteristics and Power Supply | |
| Installation Method | Flange |
| Housing Material | Cast aluminium, Carbon steel(host), Ceramic(sensor) |
| Key Mode | Wireless infrared remote control+four button operation menu |
| Power Consumption | <1W |
| Operating Voltage | Isolated 12 ~ 36V DC or 85 ~ 250V AC |
Features
·Backup and restore settings parameters
·Wireless infrared remote control menu interface
·Adjustable pulse output and analog output
·Support isolated 4-20mA output
·Support HART protocol
·Support Bluetooth, GPRS, GPS communication, etc.
·Support custom serial data format
·Support storage mode can choose EEPORM, TFT memory card or USB storage
·Support dual-channel measurement function
·Support measurement of pipe thickness function
·Support for non-open hole non-full pipe measurement function
·Support cold calorimeter measurement function
Applications
The measuring medium is a single stable liquid such as water, seawater, sewage, and alcohol. The measuring materials are uniform and dense pipes such as steel, stainless steel, cast iron, PVC, and glass fiber reinforced plastic. Therefore, it can be widely used in various areas related to flow measurement.
·Heating, power generation
·Metallurgy, mining
·Petroleum, chemical industry
·Water Resources and Water Resources
·Food and Medicine
·Water and Drainage
·Energy-saving monitoring, water-saving management
·Papermaking, hull manufacturing industry
