| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | 2000 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD241 ~ USD475/pc |
| Packaging Details: | RS485 Output Mass Digital Air, Gas Flow Sensor Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Ultrasonic Water Flow Meter For Sale | Accuracy: | ±1% |
|---|---|---|---|
| Medium Temperature: | 0.1~30℃ | Pressure: | 1.6MPa |
| Installation: | Clamp On | Audio Output: | Mono Channel |
| Diameter Nominal: | DN80,DN100 | Power Consumption: | 0.5mV |
| Protection Grade: | IP68 | Working Temperature: | -30~45℃ |

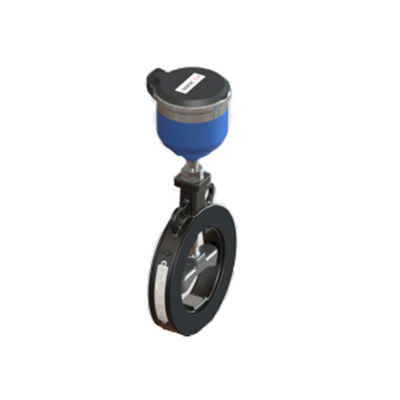

Low cost card type ultrasonic water flow meter for sale
Description
The card type ultrasonic water flow meter is designed for agricultural irrigation, garden management and water resources monitoring.The agricultural irrigation ultrasonic water flow meter has the advantages of low cost, high measurement accuracy, low power consumption as well as stable and reliable work performance.
The thickness of the card type ultrasonic water flow meter is only 1 inch which can save the installation space. All the parts` protection level is IP68, which can be used in all kinds of bad working environment.The measuring result would not be affected by water quality and there was no pressure loss.

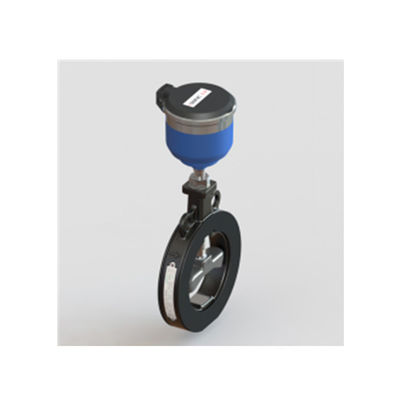

Detailed Images
Specification
| Low cost card type ultrasonic water flow meter for sale | |
| Accuracy | ±1% |
| Medium | water,sewage,sea water(can be customized for other liquid)and the pipe must be full |
| Medium temperature | 0.1~30℃ |
| Working environment | temperature:-30~45℃;humidity:≤100%(RH) |
| Pressure | 1.6MPa |
| Installation | clamp on |
| Audio output | mono channel |
| Straight pipe | upstream≥5D,downstream≥3D(D for pipe diameter),the pipe must be full |
| Pulse output | 2 isolated OCT/2 TTL pulse output |
| Analog output | 1 two-wire 4-20mA analog output |
| Digital communications | RS485/USART/Infrared |
| Protection grade | IP68,can work underwater(≤2m) |
| Display | double row,9 bit cumulant,4 transient flows,various status prompts |
| Data storage | use EEPROM/FLASH as data storage way,automatic record for 256 months,accumulated record for 512 days |
| Period | measurement:once per second;calibration status :four times per second |
| Power consumption | 0.5mV |
| Power Supply | built-in lithium battery(3.6V,9Ah)/external DC8-36V/two-wire system 4-20mA |
Features
Dimensions of Low cost card type ultrasonic water flow meter for sale
Applications
·Agricultural irrigation:Can monitor agricultural water usage remotely to save water
·Industrial water metering
·Intelligent irrigation and landscaping
