| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | 2000B |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD359 ~ USD695/pc |
| Packaging Details: | RS485 Output Mass Digital Air, Gas Flow Sensor Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Wall-mounted Fixed Ultrasonic Flow Meter Water | Accuracy: | Better Than ±1% |
|---|---|---|---|
| Protection Grade: | Main Unit:IP67; Transducers:IP | Repeatability: | Better Than ±0.5% |
| Power Supply: | DC8v~36v ; AC85v~264v | Power Consumption: | 1.5W |
| Flow Rate: | 0~±12m/s | Temperature: | -40~160℃ |
| Working Humidity: | 85%RH | Working Environment: | Fixed For Long-term Measurement |

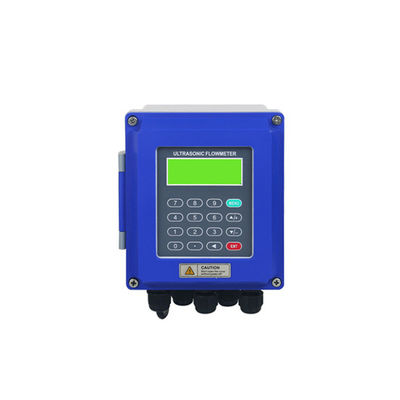

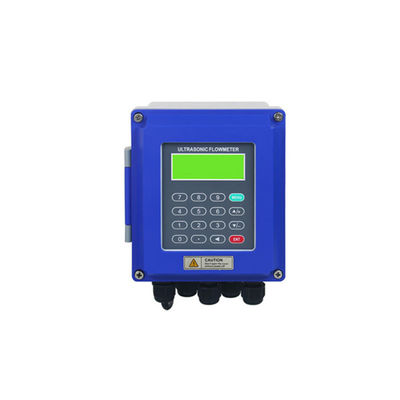

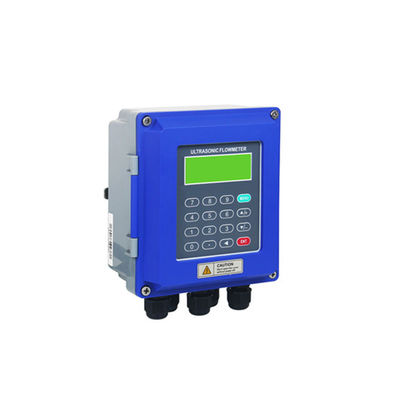

High accuracy wall-mounted fixed ultrasonic flow meter water and gas
Description

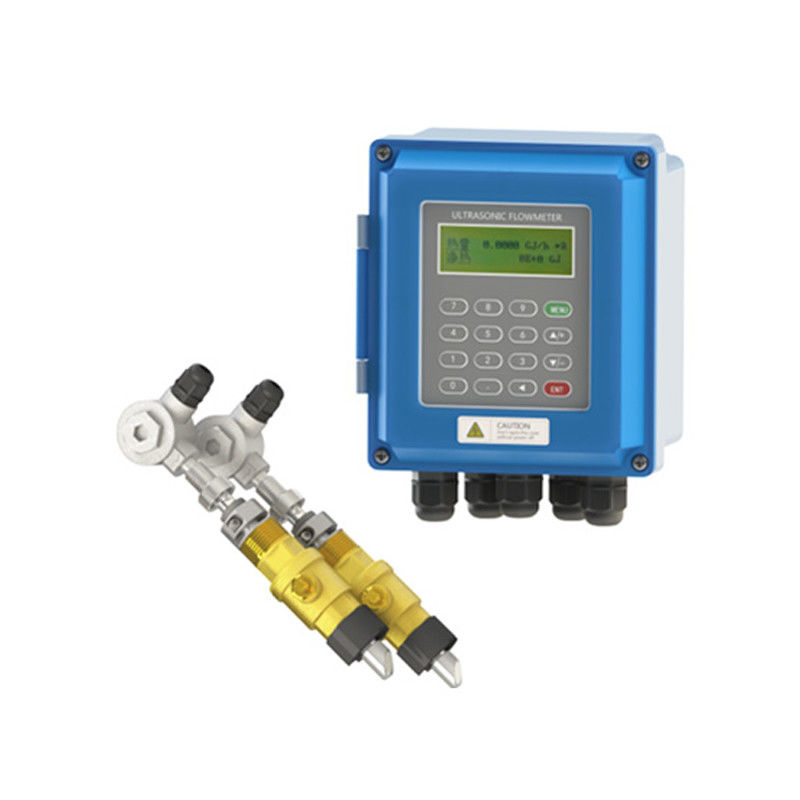

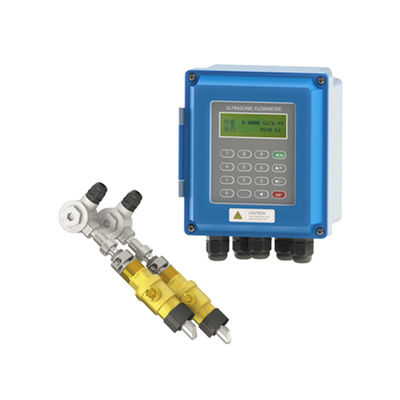

The plug-in ultrasonic flow meter is composed of wall-mounted main unit and plug-in sensor.The protection level of the main engine has been upgraded to IP67.The insertion sensor can be installed only by opening two mounting holes on the pipe surface.With the opening tool, it can be used to install the ultrasonic sensor without stopping water, because the sensor is directly in contact with the fluid, and the measurement is stable and reliable.
Detailed Images
Specification
| PERFORMANCE | |
| Main Unit | |
| Accuracy | Better than ±1% |
| Repeatability | Better than ±0.5% |
| Display | 2×10 backlight or 2×20 character LCD dispaly, the instantaneous, cumulative flow rate, flow velocity, instaneous, cumulative quantitiy of heat and time can be displayed on the same screen |
| Signal Output | 1 current output, impedance 0~1K, precision 0.1%; 1 OCT pulse output(pulse width 6~1000s, default 200ms); 1 relay output |
| Signal Input | 3 current input (4~20mA), Accuracy 0.1%, can collect temperature, pressure, level and other signals |
| Data Interface | Isolated RS485 Serial interface, can be upgraded by PC; Support Modbus |
| Working Conditions | |
| Temperature | |
| Main Unit | -20℃ ~ +60℃ |
| Flow Transducer | -40℃ ~ +160℃ |
| Humidity | 85%RH; Flow transducer: can be submerged (depth≤2m) |
| SPECIFICATION | |
| Power Supply | 8 ~ 36V DC/85 ~ 264V AC |
| Power Consumption | 1.5W |
| Flow Rate | 0 ~ ±12m/S |
| Medium Temperature | -40℃ ~ +160℃ |
| Medium Turbidity | -40℃ ~ +160℃ |
| Diameter Nominal | DN15 ~ 6000mm |
| Medium | Water, Sea Water, Industrial Sewage, Acid and Alkali, Alcohol, Beer, Oil, Other Ultrasound-conduct Single and Uniform Liquid |
| Sensor Installation Requirements | Upstream for 10 Pipe Diameter, Downstream for 5 Pipe Diameter, 30 Pipe Diameter from Pump Outlet |
| Piping Material | Steel, Stainless Steel, Cast Iron, Cement Pipe, Copper, PVC, Aluminium, Glass Fiber Reinformed Plastic |
| Special Cable | customized twisted-pair(≤50m) |
Features
·No need to cut off the pipeline, no pressure drop.
·High accuracy within ±1%
·High protection class: Main unit:IP67; Transducers:IP68
·Multiple output of 4-20mA analog, OCT pulse and relay output.
·Coming with RS485 interface and supporting MODBUS protocol, easily access PLC or DCS
·Achieve heat measurement by connecting 3-wired heat transducers PT100.
