| Place of Origin: | Made In China |
| Brand Name: | SHELOK |
| Certification: | CE |
| Model Number: | TUF-2000F2 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD350 ~ USD950/pc |
| Packaging Details: | RS485 Output Mass Digital Air, Gas Flow Sensor Standard export carton packing or can customized |
| Delivery Time: | 3 ~ 7 Working Days After Payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/Month |
| Product Name: | Integrated Ultrasonic Sewage Flow Meter | Accuracy: | ±0.5%,±1.0% |
|---|---|---|---|
| Working Temperature: | Main Unit:-20~60℃;flow Transducer:-30~160℃ | Signal Input: | 4-20mA |
| Medium: | Liquid | Flow Rate: | 0~±10m/s |
| Power Supply: | DC8~36V/AC85~264V | Power Consumption: | 1.5W |
| Explosion-proof Grade: | IP68 | Working Humidity: | Can Be Submerged |

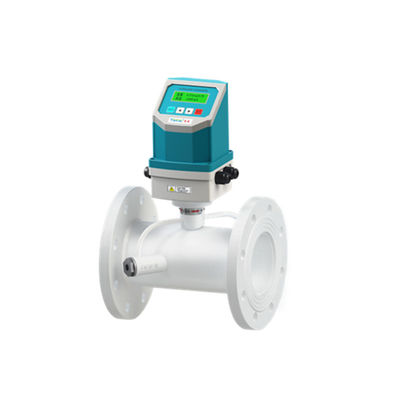

Integrated ultrasonic sewage flow meter water
Description
TUF-2000F2 series is integrated ultrasonic sewege flow meter to improve the protection grade, in accordance with the JJG1030-2007 ultrasonic flow meter verification regulations.This ultrasonic river/sewege flow meter uses ultrasonic time difference principle to measure the flow and is available for DN15 ~ DN6000 pipeline.Each component of the flowmeter is designed according to the IP68 protection class standard.

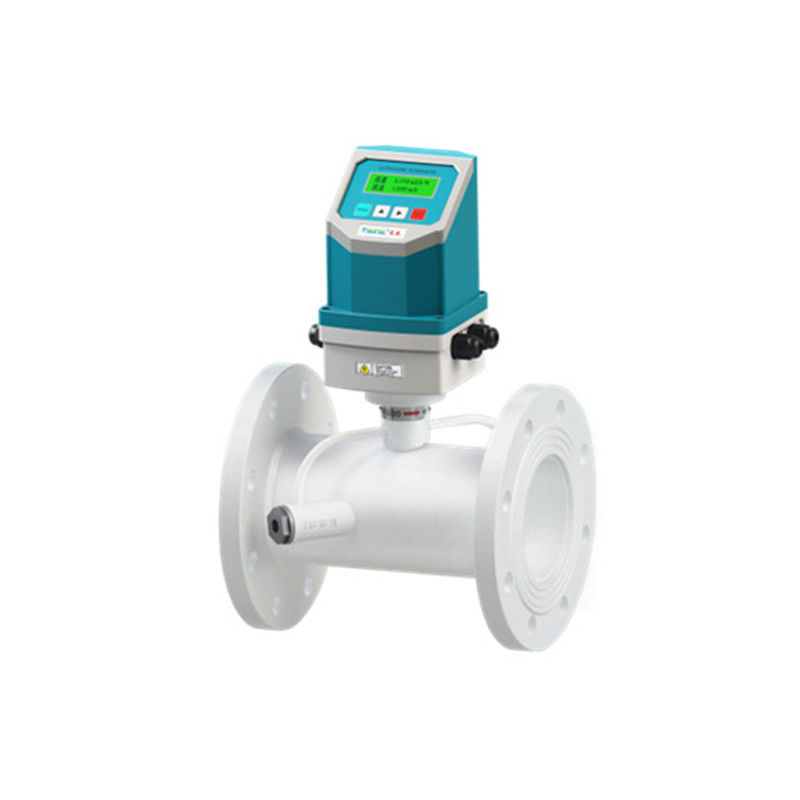

Detailed Images
Specification
| Integrated ultrasonic sewage flow meter water | |
| Performance | |
| Unit | |
| Accuracy | Pipeline: ±0.5%; Clamp on: ±1.0%; Plug-in: ±1.0% |
| Operation | Supports 4-key magnetic rod operation; 4-key touch keyboard; analog keyboard software |
| Signal Output | 1 Current output, Impedance 0~1K, Precision 0.1%; 1 OCT pulse output (Pulse width: 6~1000s, default: 200ms); 1 relay output |
| Signal Input | 3 Current input (4~20mA), Accuracy 0.1%, can collect temperature, pressure, level and other signal |
| Data Interface | Isolated RS485 Serial Interface, can be upgraded by PC; Support Modbus |
| Working Condition | |
| Temperature | Main Unit: -20℃ ~ 60℃; Flow Transducer: -30℃ ~ 160℃ |
| Humidity | Main unit and flow transducer can be submerged (depth≤2m) |
| Integrated ultrasonic sewage flow meter water | |
| Specification | |
| Special Cable | Customized twisted pair (≤50); RS485 transmission distance can be more than 1000 |
| Housing Material | Steel, Stainless steel, Cast Iron, Cement Pipe, Copper, PVC, Aluminum, Glass fiber reinforced |
| Diameter Nominal | DN15 ~ 6000 |
| Sensor Installation Requirements | Upstream for 10 pipe diameter, Downstream for 5 pipe diameter, 30 pipe diameter from pump outlet |
| Medium | Water, Sea water, Industrial sewage, Acid and alkali, Alcohol, Beer, Oil, other ultrasound-conduct single and uniform liquid |
| Medium Temperature | -30℃ ~ +160℃ |
| Turbidity | 10000ppm with few air bubbles |
| Flow Rate | 0 ~ ±10m/s |
Features
·High accuracy
·Anti-interference ability
·Stable and reliable
·Multiple interfaces
·Available harsh working environment.
Applications
The intergrated ultrasonic sewage flow meter can be used to measure the water,sea water,industrial sewage,acid and alkali,alcohol,beer,oil and other liquid.
Related products
FAQ
Q:How long will you reply me?
A:We will contact you as soon as possible but within 12 hours
Q: Can I get some samples?
A: Yes, Sample order is available for quality check and market test. But you have to pay the express cost.
Q: How soon can you arrange your production?
A: Once getting your product confirmation and receiving the prepayment, the production will be started immediately.
Q: What's delivery time?
A: It usually takes about 3-5 working days for small order and 10-15 days for big order.
Q:How do you control your quality ?
A: Three inspection steps(of original, production, and finished goods) + good warranty service(1 year free to change a new one without any human damage factors).
Q: What certificates do you have ?
A:ISO9000, CE, Explosion-proof certification, RoHs ready. And before the delievry of goods, quality and safety inspection certification issued by third parts also can be offered.
Q:Could I visit your factory?
A:Very welcome! Fly to Xian Yang air port. It was a big pleasure for us.
Q: What's your warranty terms?
A: We offer 12 months warranty time.
Q:can you provide OEM & Customized service?
A:Yes, OEM and ODM are both available, we have the professional R&D dept which can provide professional solutions for you.
Company Information
Shelok considers itself not only a manufacture but more conprehensively a provider of industry specific customer-oriented solutions.Our profound understanding of product application and strong technical backgrounds ensure you the best product solution and achieve a greater success.
Xi'an Shelok Instrument Technology co.,ltd is a professional R&D center and manufacture of measuring instruments.And here's a variety of products for you choice: pressure transmitters,temperature transmitters,flow transmitters,weighing instruments and so on.Our products have been made by advanced technology, with high quality, fast delivery period, which have attracted so many domestic and foreign customers.
